E60HMHD (2002)
REPAIR KIT 2

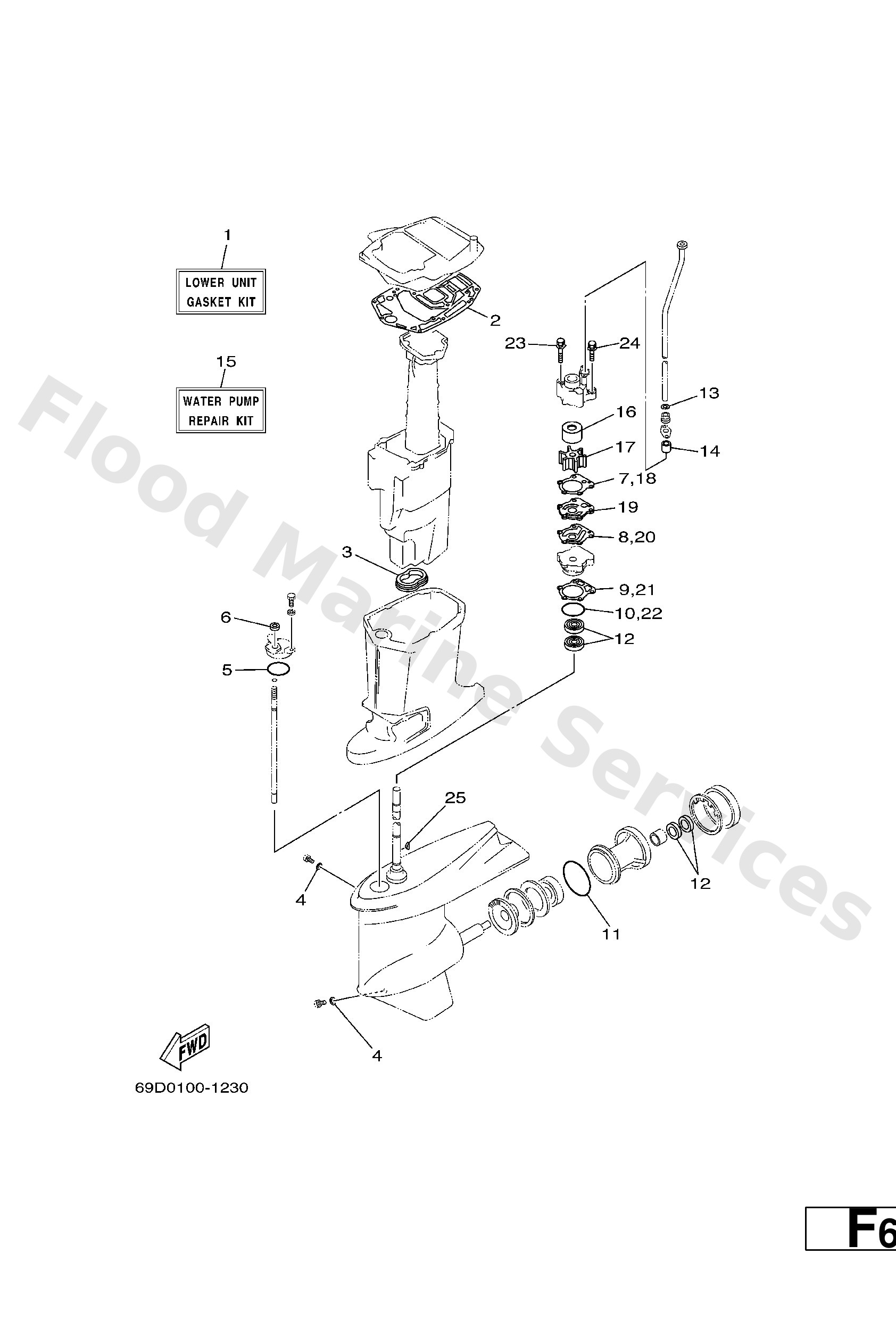

Diagram: REPAIR KIT 2
Parts List
Reference
Description
Price
1
69D−W0001−20
Lower unit gasket kit
Loading…
↗
2
6H3−45114−A1
Gasket, upper casing
Loading…
↗
3
6H3−45123−00
Gasket, muffler
Loading…
↗
4
90430−08020
Gasket
Loading…
↗
5
93210−49046
O-ring (620)
Loading…
↗
6
93106−09014
Oil seal
Loading…
↗
7
688−44315−A0
Gasket,water pump 1
Loading…
↗
8
688−44324−A0
Gasket,cartridge 0uter plate
Loading…
↗
9
688−44316−A0
Gasket,water pump 2
Loading…
↗
10
93210−46044
O-ring
Loading…
↗
11
93210−85M97
O-ring(6h1)
Loading…
↗
12
93101−25M03
Oil seal
Loading…
↗
13
90430−12072
Gasket
Loading…
↗
14
663−44366−00
Damper, water seal 2
Loading…
↗
15
69D−W0078−00
Water pump repair kit
Loading…
↗
16
69D−44322−00
Insert, cartridge
Loading…
↗
17
688−44352−03
Impeller
Loading…
↗
19
688−44323−40
Outer plate, cartridge
Loading…
↗
23
90119−08M16
Bolt, with washer(6h0)
Loading…
↗
24
90119−08M13
Bolt, with washer(6h0)
Loading…
↗
25
90280−04M04
Key, woodruff (688)
