F100AET (2003)
REPAIR KIT 2

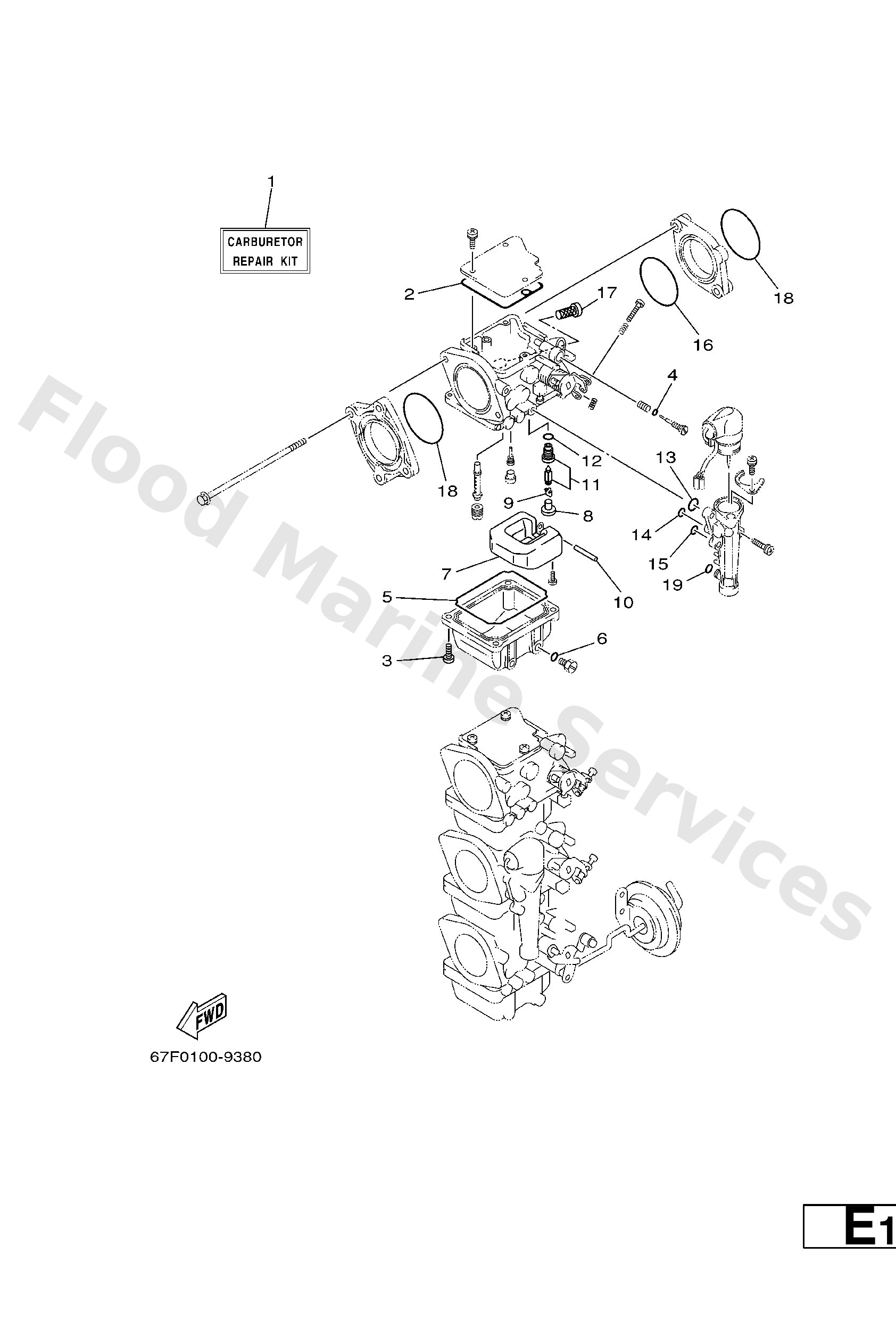

Diagram: REPAIR KIT 2
Parts List
Reference
Description
Price
1
67F−W0093−01
Carburetor repair kit
Loading…
↗
2
67F−14147−00
Gasket
Loading…
↗
3
97980−04114
Screw, pan head(ga5)
Loading…
↗
4
67F−14397−00
O-ring
Loading…
↗
5
67F−14984−00
Gasket, float chamber
Loading…
↗
6
93210−04230
O-ring (371)
Loading…
↗
7
6H4−14985−01
Float
Loading…
↗
8
676−14186−00
Pin, valve
Loading…
↗
9
663−14159−00
Clip
Loading…
↗
10
6H4−14548−00
Pin, float arm
Loading…
↗
11
60C−14590−01
Needle valve assembly
Loading…
↗
12
93210−04228
O-ring (371)
Loading…
↗
13
67F−14398−00
O-ring
Loading…
↗
14
67F−14398−10
O-ring
Loading…
↗
15
67F−14398−20
O-ring
Loading…
↗
16
67F−14239−00
Seal
Loading…
↗
17
67F−14371−01
Element, filter
Loading…
↗
18
93210−40M10
O-ring (682)
Loading…
↗
19
67F−14398−30
O-ring
Loading…
↗
