F15AEP (2003)
REPAIR KIT 2

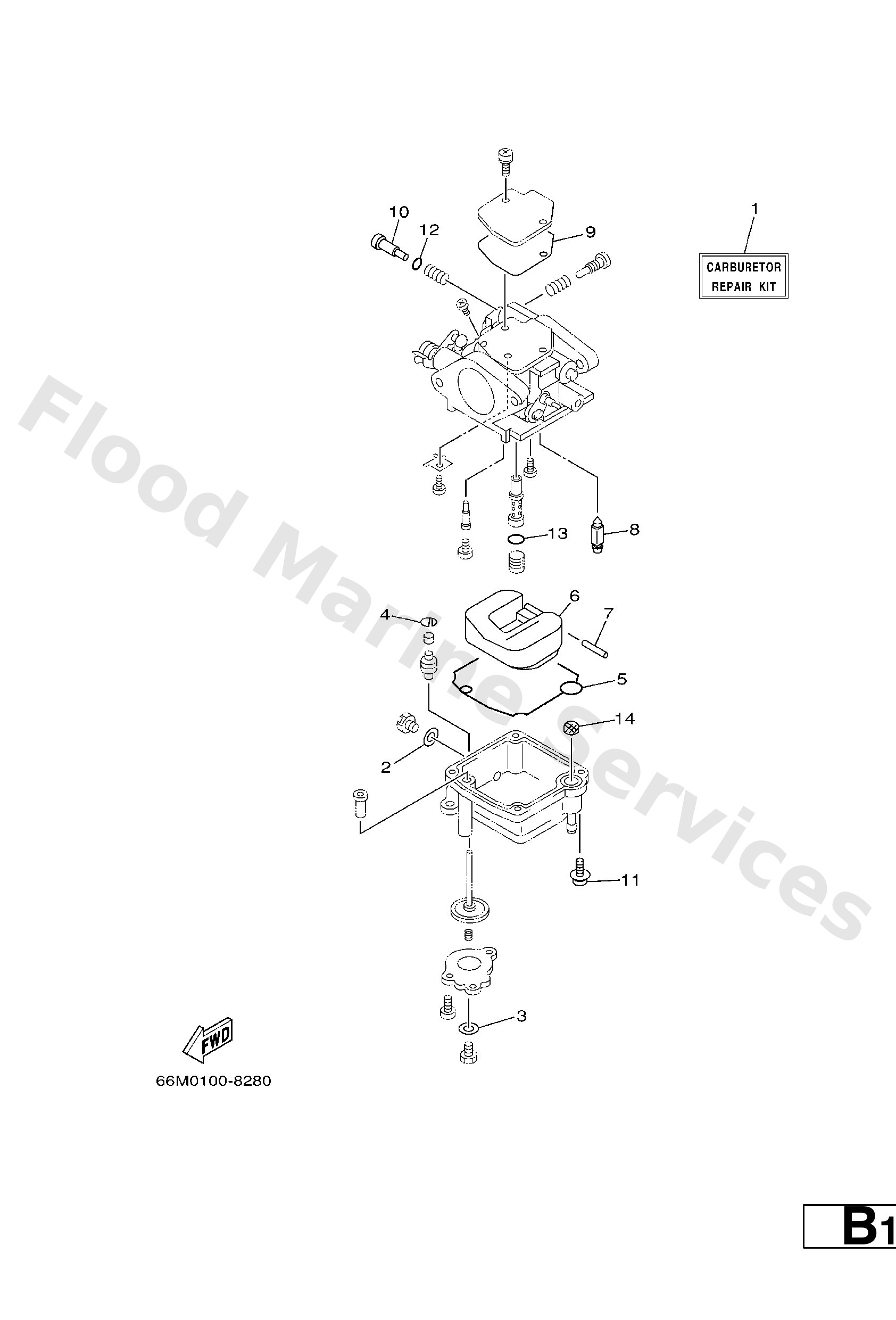

Diagram: REPAIR KIT 2
Parts List
Reference
Description
Price
1
66M−W0093−01
Carburetor repair kit
Loading…
↗
2
66M−14398−00
Gasket
Loading…
↗
3
6L2−14398−00
Gasket
Loading…
↗
4
66M−14377−00
Stopper
Loading…
↗
5
66M−14384−00
Gasket, float chamber
Loading…
↗
6
6L2−14385−00
Float
Loading…
↗
7
6E5−14386−01
Pin, float
Loading…
↗
8
6L2−14392−00
Valve, needle
Loading…
↗
9
62Y−14399−00
Gasket
Loading…
↗
10
5H0−14323−00
Pilot screw set
Loading…
↗
11
97980−04112
Screw, pan head (686)
Loading…
↗
12
62Y−14397−00
O-ring
Loading…
↗
13
6F5−14397−00
O-ring
Loading…
↗
14
66M−14827−00
Filter
Loading…
↗
