F175CA (2022)
REPAIR KIT 2

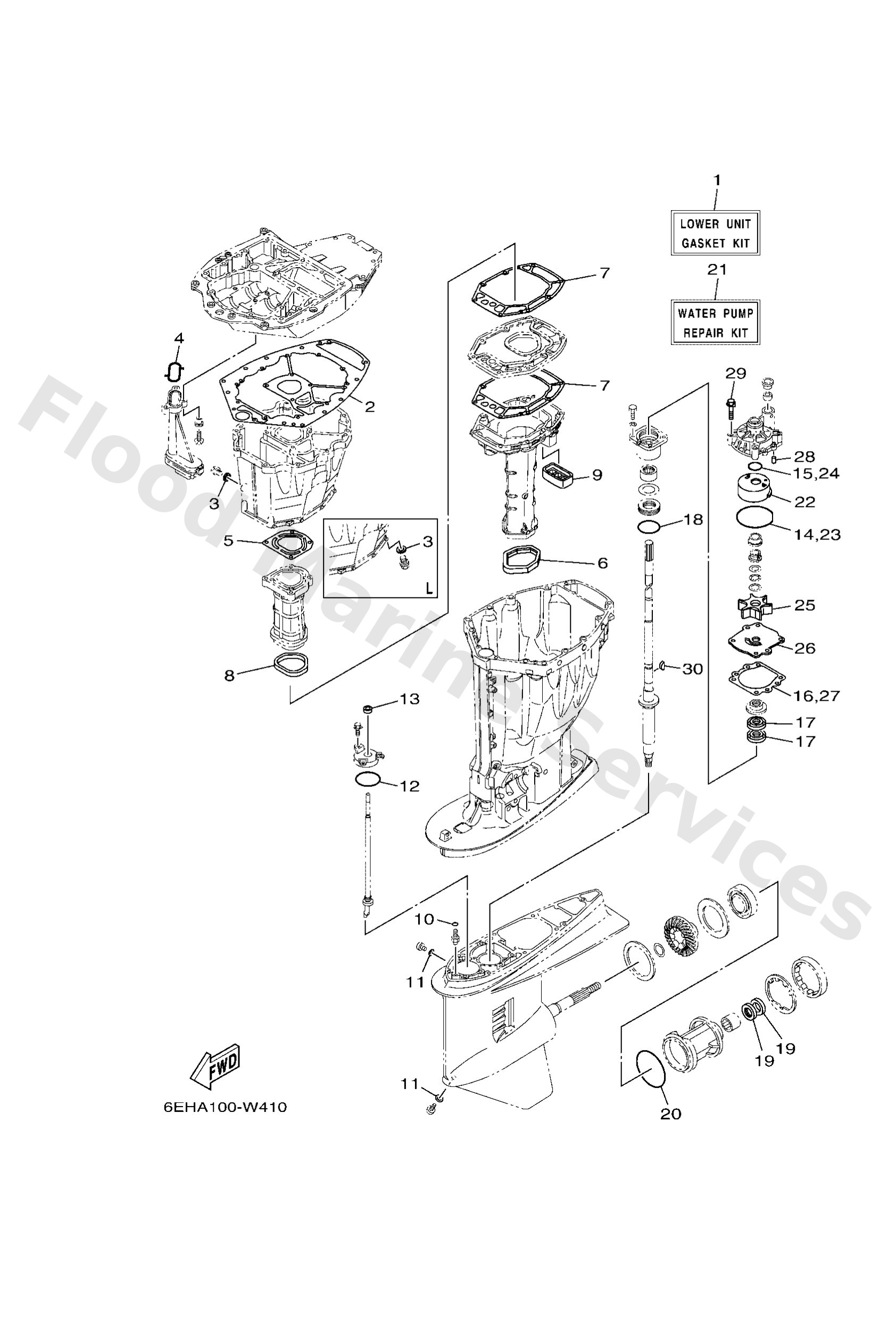

Diagram: REPAIR KIT 2
Parts List
Reference
Description
Price
1
63PW000122
Lower unit gasket kit
Loading…
↗
2
63P1531202
Gasket, oil pan
Loading…
↗
3
9043014M09
Gasket
Loading…
↗
4
63P1341500
Seal, oil strainer
Loading…
↗
5
63P41133A0
Gasket, exhaust manifold 1
Loading…
↗
6
69J4512300
Gasket, muffler
Loading…
↗
7
63P41134A1
Gasket, exhaust manifold
Loading…
↗
8
63P4113800
Seal, ext. 1
Loading…
↗
9
69J4512701
Seal
Loading…
↗
10
9321007003
O-ring (11m)
Loading…
↗
11
9043008003
Gasket
Loading…
↗
12
9321058144
O-ring(47x)
Loading…
↗
13
9310609014
Oil seal
Loading…
↗
14
9321086M38
O-ring (6e5)
Loading…
↗
15
9321037160
O-ring (6g8)
Loading…
↗
16
6E544315A0
Gasket,water pump
Loading…
↗
17
9310128M16
Oil seal (6e5)
Loading…
↗
18
9321055M14
O-ring (70e)
Loading…
↗
19
9310130M17
Oil seal (6e5)
Loading…
↗
20
9321097M55
O-ring (6g5)
Loading…
↗
21
61AW0078A4
Water pump repair kit
Loading…
↗
22
61A4432202
Insert, cartridge
Loading…
↗
25
6E54435201
Impeller
Loading…
↗
26
6G54432301
Outer plate, cartridge
Loading…
↗
28
9360612019
Pin, dowel (614)
Loading…
↗
29
9011908191
Bolt, with washer
Loading…
↗
30
9028004M05
Key, woodruff (6e5)
Loading…
↗
