F2.5AMH (2008)
REPAIR KIT 2

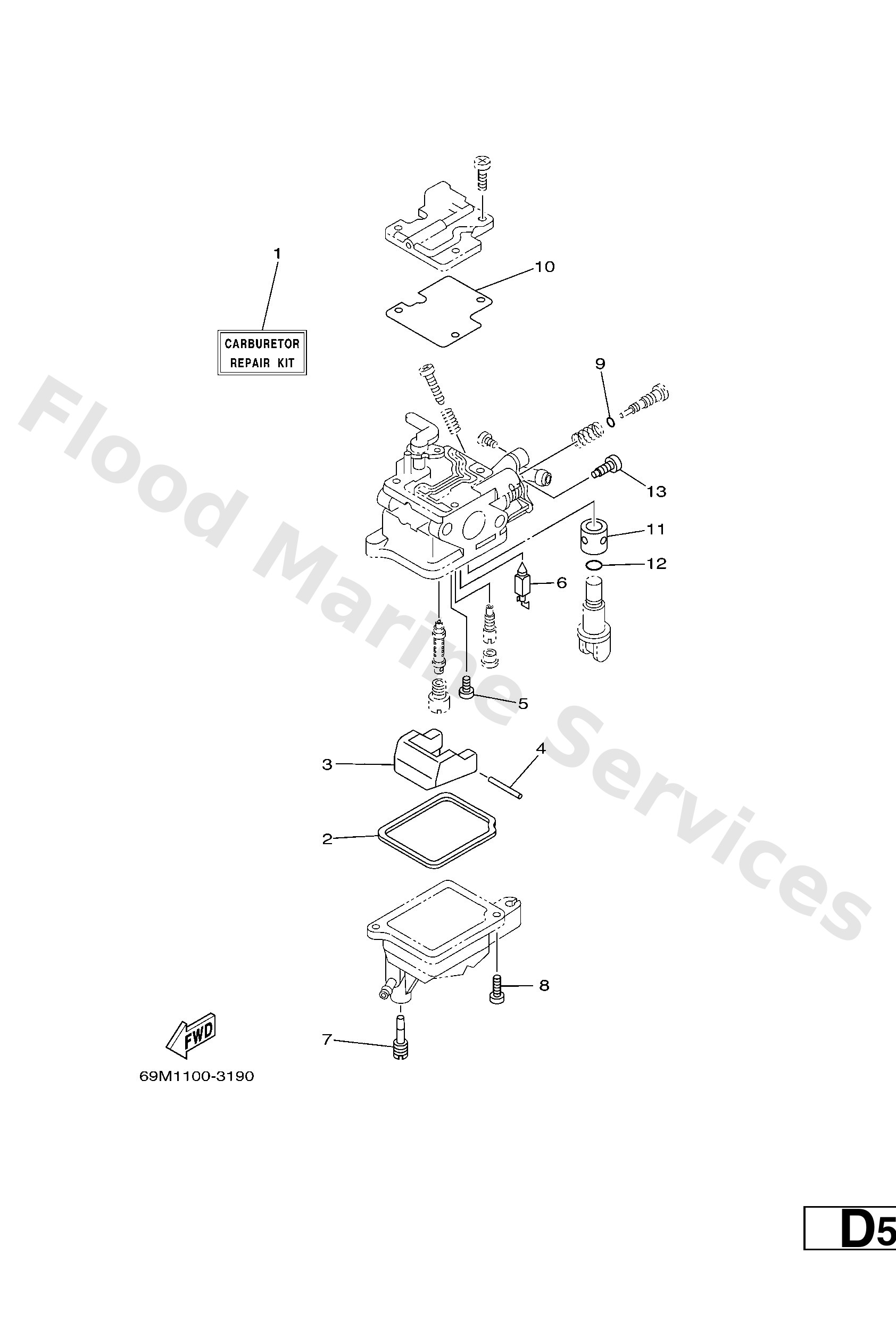

Diagram: REPAIR KIT 2
Parts List
Reference
Description
Price
1
69MW009300
Carburetor repair kit
Loading…
↗
2
69M1498400
Gasket, float chamber
Loading…
↗
3
69M1438500
Float
Loading…
↗
4
6A11438600
Pin, float
Loading…
↗
5
9858003005
Screw, pan head(78g)
Loading…
↗
6
62Y1439200
Valve, needle
Loading…
↗
7
69M1499100
Screw
Loading…
↗
8
9858004010
Screw, pan head (e56)
Loading…
↗
9
2T41439700
O-ring
Loading…
↗
10
69M1453600
Gasket
Loading…
↗
11
69M2452300
Valve
Loading…
↗
12
69M2453300
O-ring
Loading…
↗
13
69M2453500
Screw, lever fitting
Loading…
↗
