F25AE (2003)
REPAIR KIT 2

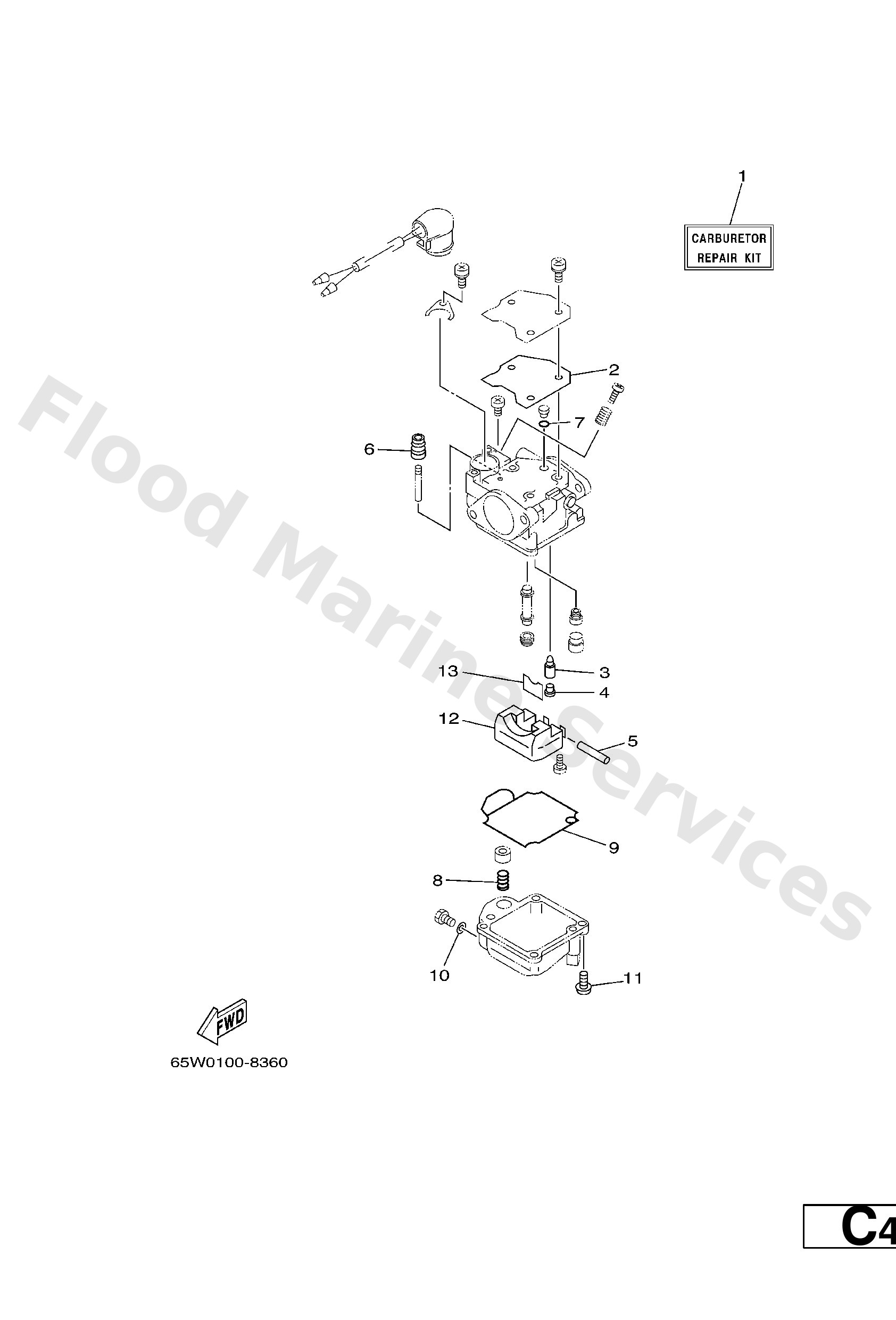

Diagram: REPAIR KIT 2
Parts List
Reference
Description
Price
1
65W−W0093−00
Carburetor repair kit
Loading…
↗
2
65W−14126−00
Gasket
Loading…
↗
3
6G1−14546−00
Valve, needle
Loading…
↗
4
676−14186−00
Pin, valve
Loading…
↗
5
6H4−14548−00
Pin, float arm
Loading…
↗
6
65W−14373−00
Cover, plunger cap
Loading…
↗
7
65W−14147−00
O-ring
Loading…
↗
8
65W−14335−00
Spring, plunger
Loading…
↗
9
65W−14384−00
Gasket, float chamber
Loading…
↗
10
65W−14398−00
Washer
Loading…
↗
11
97980−04114
Screw, pan head(ga5)
Loading…
↗
12
63V−14985−00
Float
Loading…
↗
13
663−14159−00
Clip
Loading…
↗
