F25AMH (2004)
REPAIR KIT 2

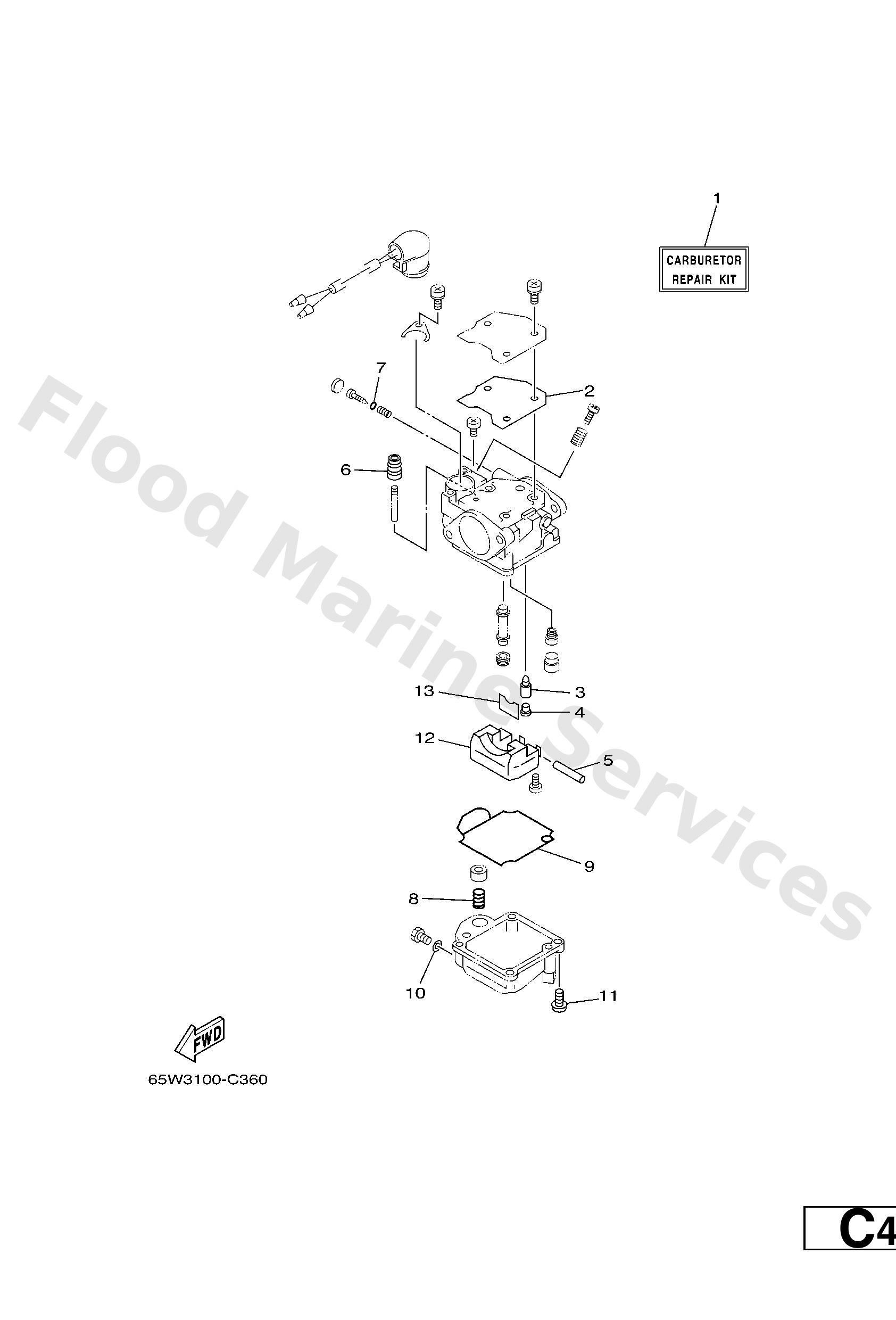

Diagram: REPAIR KIT 2
Parts List
Reference
Description
Price
1
65WW009301
Carburetor repair kit
Loading…
↗
2
65W1412600
Gasket
Loading…
↗
3
6G11454601
Valve, needle
Loading…
↗
4
6761418600
Pin, valve
Loading…
↗
5
6H41454800
Pin, float arm
Loading…
↗
6
65W1437300
Cover, plunger cap
Loading…
↗
7
67C1439700
O-ring
Loading…
↗
8
65W1433500
Spring, plunger
Loading…
↗
9
65W1438400
Gasket, float chamber
Loading…
↗
10
65W1439800
Washer
Loading…
↗
11
9798004114
Screw, pan head(ga5)
Loading…
↗
12
63V1498500
Float
Loading…
↗
13
6631415900
Clip
Loading…
↗
