F25GWH (2018)
REPAIR KIT 2

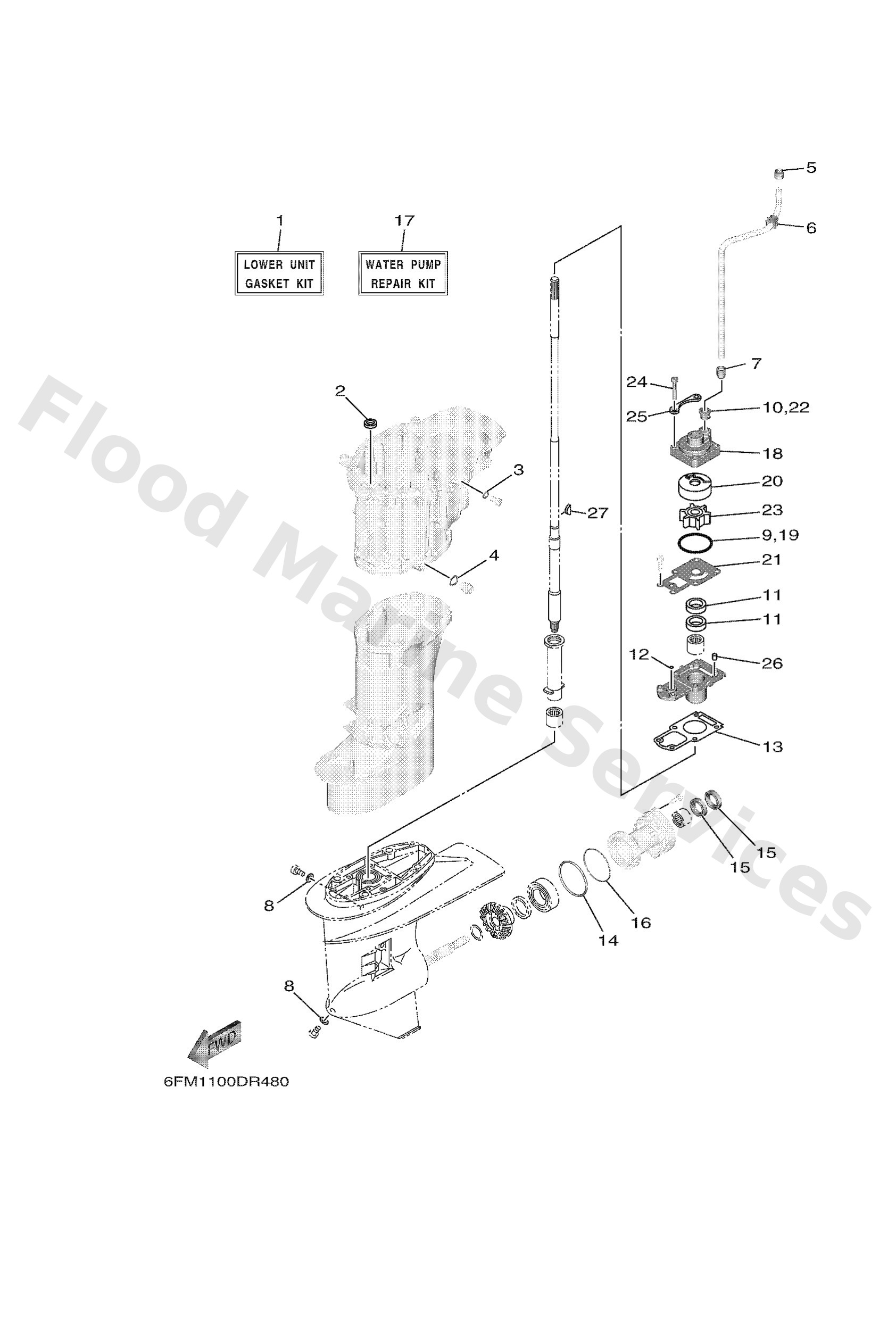

Diagram: REPAIR KIT 2
Parts List
Reference
Description
Price
1
6FMW000120
Lower unit gasket kit
Loading…
↗
2
9310113001
Oil seal
Loading…
↗
3
9043008143
Gasket (256-11198-00)
Loading…
↗
4
9043014M09
Gasket
Loading…
↗
5
6824436500
Damper, water seal 1
Loading…
↗
6
6AH4436500
Damper, water seal 1
Loading…
↗
7
6L24436800
Rubber, water seal 4
Loading…
↗
8
9043008003
Gasket
Loading…
↗
9
9321045161
O-ring
Loading…
↗
10
6L24436710
Damper, water seal 3
Loading…
↗
11
9310120048
Oil seal (20x30x6-648)
Loading…
↗
12
9321006ME6
O-ring
Loading…
↗
13
6L245315A0
Packing,l0wer casing
Loading…
↗
14
9321060MA3
O-ring(6j8)
Loading…
↗
15
9310120M07
Oil seal
Loading…
↗
16
9321060M99
O-ring(6t3)
Loading…
↗
17
6FMW007800
Water pump repair kit
Loading…
↗
18
6L24431101
Housing, water pump
Loading…
↗
20
6L24432200
Insert, cartridge
Loading…
↗
21
6FM4432301
Outer plate, cartridge
Loading…
↗
23
6L24435200
Impeller
Loading…
↗
24
9759506540
Bolt, hexagon w/w deep recess
Loading…
↗
25
6L24432800
Plate
Loading…
↗
26
9360412M07
Pin, dowel (688)
Loading…
↗
27
9028003024
Key, woodruff(662)
Loading…
↗
