F40FEHD (2016)
REPAIR KIT 2

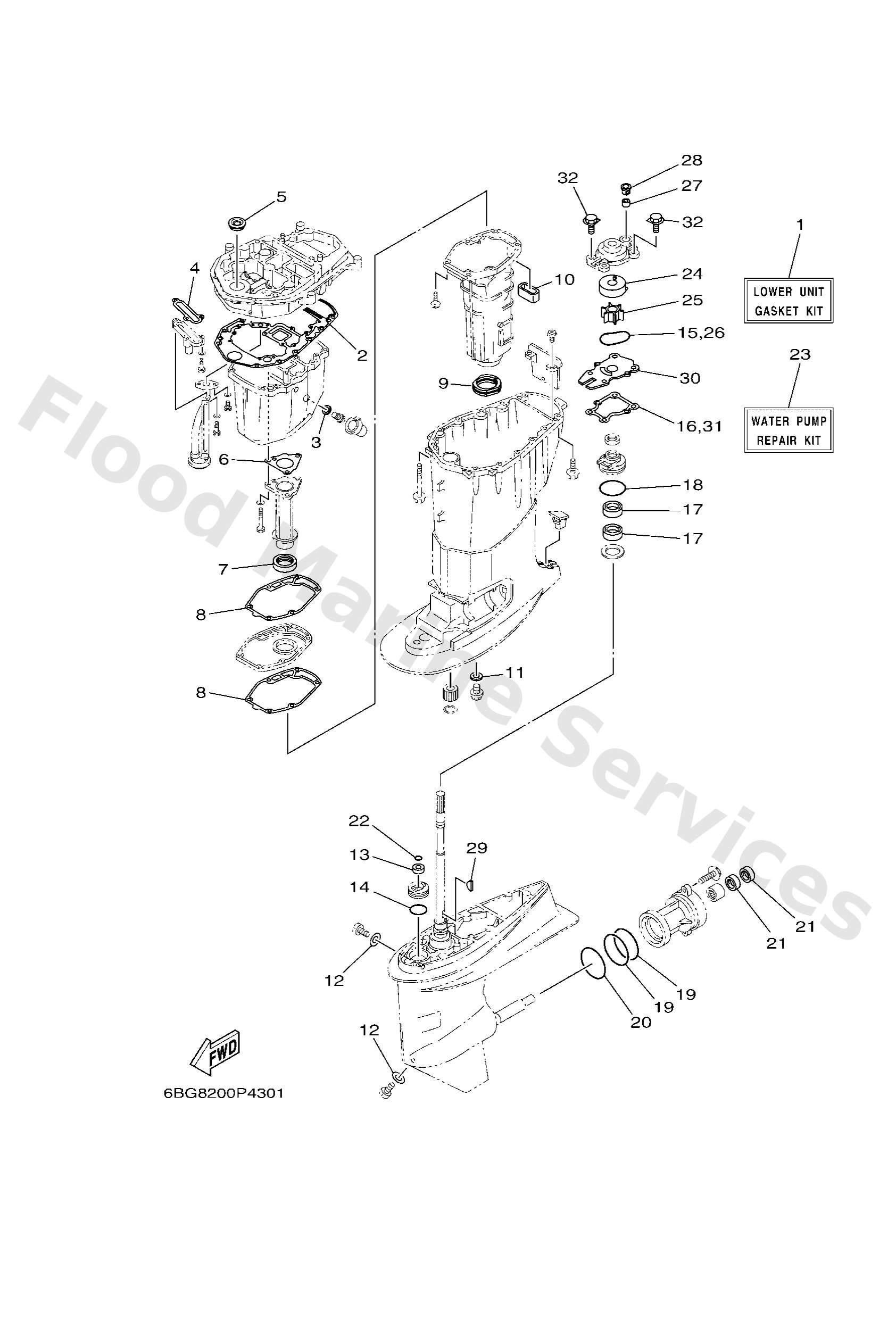

Diagram: REPAIR KIT 2
Parts List
Reference
Description
Price
1
6BGW000121
Lower unit gasket kit
Loading…
↗
2
69W1531200
Gasket, oil pan
Loading…
↗
3
9043014M09
Gasket
Loading…
↗
4
62Y1347500
Gasket
Loading…
↗
5
9310316011
Oil seal
Loading…
↗
6
64J4113310
Gasket, exhaust manifold 1
Loading…
↗
7
64J4613210
Gasket 1
Loading…
↗
8
6BG4113400
Gasket, exhaust manifold
Loading…
↗
9
67C4512300
Gasket, muffler
Loading…
↗
10
62Y4512700
Seal
Loading…
↗
12
9043008003
Gasket
Loading…
↗
13
9310609014
Oil seal
Loading…
↗
14
9321033MG4
O-ring
Loading…
↗
15
9321059MG7
O-ring
Loading…
↗
16
63D4431600
Gasket, water pump
Loading…
↗
17
9310122M60
Oil seal
Loading…
↗
18
9321048001
O-ring
Loading…
↗
19
9321074MG5
O-ring (xea)
Loading…
↗
20
9321069MG6
O-ring
Loading…
↗
21
9310122M00
Oil seal (22x36x6-663)
Loading…
↗
22
9321007003
O-ring (11m)
Loading…
↗
23
6BGW007800
Water pump repair kit
Loading…
↗
24
63D4432200
Insert, cartridge
Loading…
↗
25
6H44435202
Impeller
Loading…
↗
27
6634436600
Damper, water seal 2
Loading…
↗
28
63D4431200
Cover, water pump housing
Loading…
↗
29
9028003M03
Key, woodruff (697)
Loading…
↗
30
63D4432300
Outer plate, cartridge
Loading…
↗
32
9011908M15
Bolt, with washer(62w)
Loading…
↗
