Yamaha Outboard Parts - REPAIR KIT 2 - F40NET (2025) | Flood Marine
New Search
Parts
New Outboards
Home
F40NET (2025)
REPAIR KIT 2

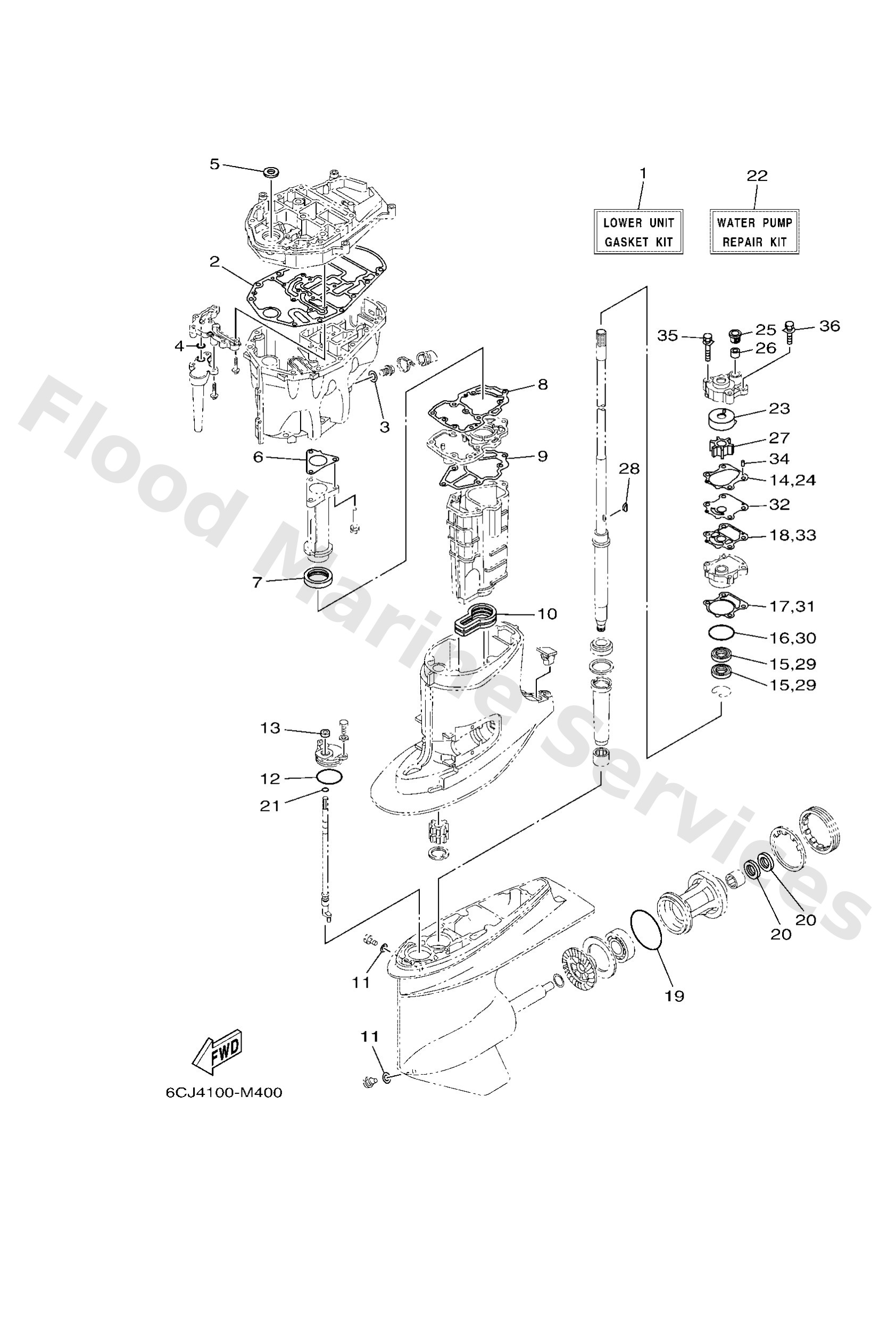

Diagram: REPAIR KIT 2
Parts List
Reference
Description
Price
1
6CJW000121
Lower unit gasket kit
Loading…
↗
2
6C51531201
Gasket, oil pan
Loading…
↗
3
9043014M09
Gasket
Loading…
↗
4
9321012790
O-ring(3ld)
Loading…
↗
5
9310318011
Oil seal
Loading…
↗
6
6C54113300
Gasket, exhaust manifold 1
Loading…
↗
7
6C54613200
Gasket 1
Loading…
↗
8
6C54113400
Gasket, exhaust manifold
Loading…
↗
9
6C54113500
Gasket, exhaust manifold
Loading…
↗
10
6C54512300
Gasket, muffler
Loading…
↗
11
9043008003
Gasket
Loading…
↗
12
9321049046
O-ring (620)
Loading…
↗
13
9310609014
Oil seal
Loading…
↗
14
6CJ4431500
Gasket, water pump
Loading…
↗
15
9310123070
Oil seal (663)
Loading…
↗
16
9321046044
O-ring
Loading…
↗
17
6CJ4431600
Gasket, water pump
Loading…
↗
18
6CJ4432400
Gasket, cartridge
Loading…
↗
19
9321086M39
O-ring (6e5)
Loading…
↗
20
9310125M03
Oil seal
Loading…
↗
21
9321007003
O-ring (11m)
Loading…
↗
22
6CJW007801
Water pump repair kit
Loading…
↗
23
63D4432200
Insert, cartridge
Loading…
↗
25
63D4431200
Cover, water pump housing
Loading…
↗
26
6634436601
Damper, water seal 2
Loading…
↗
27
6H34435200
Impellar
Loading…
↗
28
9028003M03
Key, woodruff (697)
Loading…
↗
32
6CJ4432300
Outer plate, cartridge
Loading…
↗
34
9360410M03
Pin, dowel (688)
Loading…
↗
35
9011908194
Bolt, with washer
Loading…
↗
36
9011908191
Bolt, with washer
Loading…
↗
