F4AMH (2007)
REPAIR KIT 2

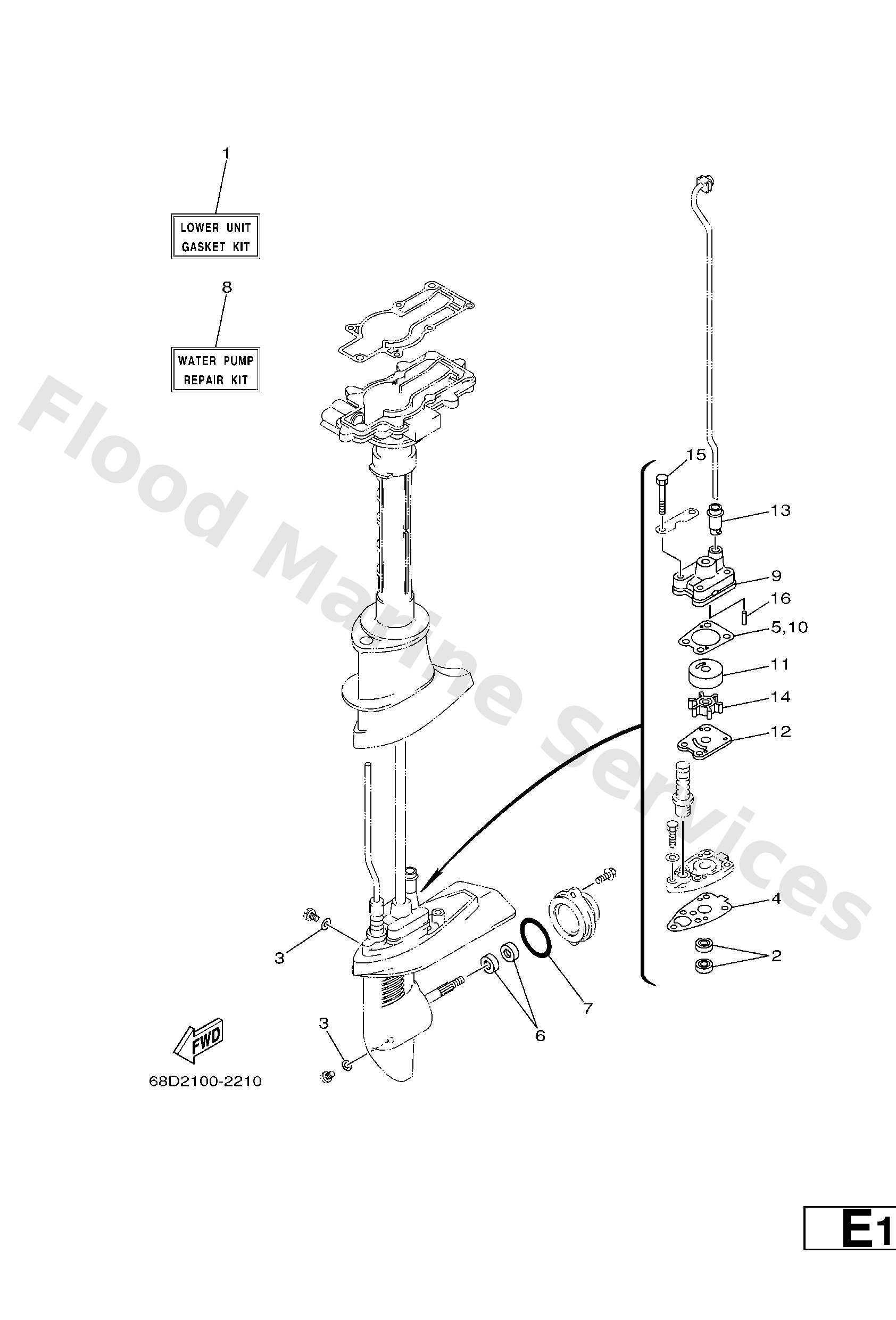

Diagram: REPAIR KIT 2
Parts List
Reference
Description
Price
1
6E0W0001C1
13
Loading…
↗
2
9310110M14
Oil Seal
Loading…
↗
3
9043008020
Gasket
Loading…
↗
4
68DG5315A0
Packing, lower cas
Loading…
↗
5
68DG4315A0
Gasket, water pump
Loading…
↗
6
9310113M12
Oil Seal
Loading…
↗
7
9321048214
O-Ring
Loading…
↗
8
68DWG07800
Water Pump Repair Kit
Loading…
↗
9
68DG431101
Housing water pump
Loading…
↗
11
6E04432202
Insert, Cartridge
Loading…
↗
12
6E04432300
Outer Plate, Cartridge
Loading…
↗
13
67D4436600
Damper, water seal 2
Loading…
↗
14
6E04435200
Impeller
Loading…
↗
15
9709506045
Bolt
Loading…
↗
16
9360418080
Pin, Dowel
Loading…
↗
