Yamaha Outboard Parts - REPAIR KIT 2 - F50AEHT (2002) | Flood Marine

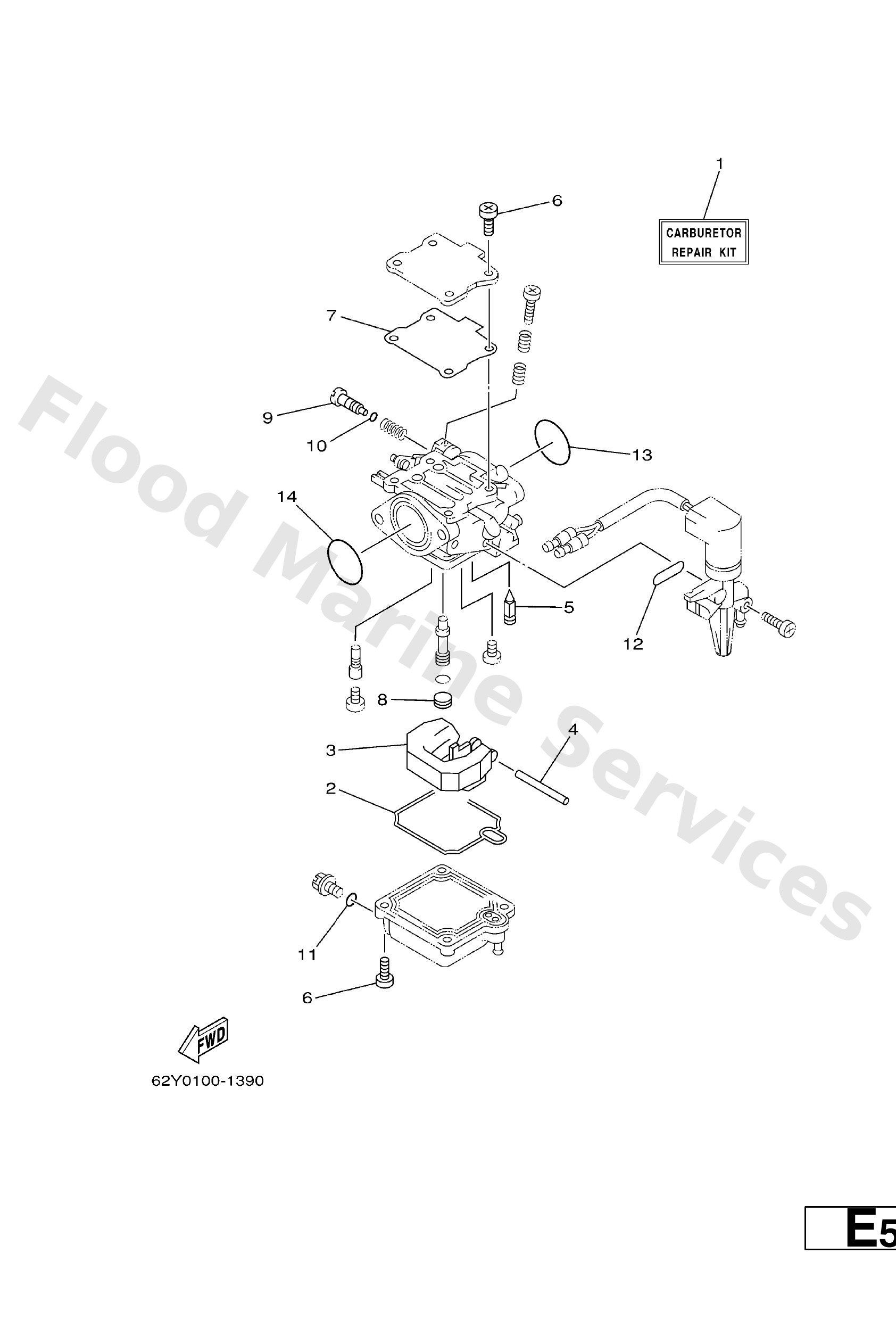

Diagram: REPAIR KIT 2

Diagram

Parts List

Reference
Description
Price


1
62YW009310
Carburetor repair kit
Loading…

↗
2
62Y1438430
Gasket, float chamber
Loading…

↗
3
6L21438500
Float
Loading…

↗
4
6E51438601
Pin, float
Loading…

↗
5
62Y1439200
Valve, needle
Loading…

↗
6
62Y1432100
Screw, throttle
Loading…

↗
7
62Y1439930
Valve, bimetal
Loading…

↗
8
62Y1435530
Plug
Loading…

↗
9
62Y1432330
Screw, air adjusting
Loading…

↗
10
2T41439700
O-ring
Loading…

↗
11
6521439700
Ring, o
Loading…

↗
12
62Y1439830
Gasket
Loading…

↗
13
9321030MH4
O-ring(62y)
Loading…

↗
14
9321035M86
O-ring(6l2)
Loading…

↗
