F50HED (2022)
REPAIR KIT 2

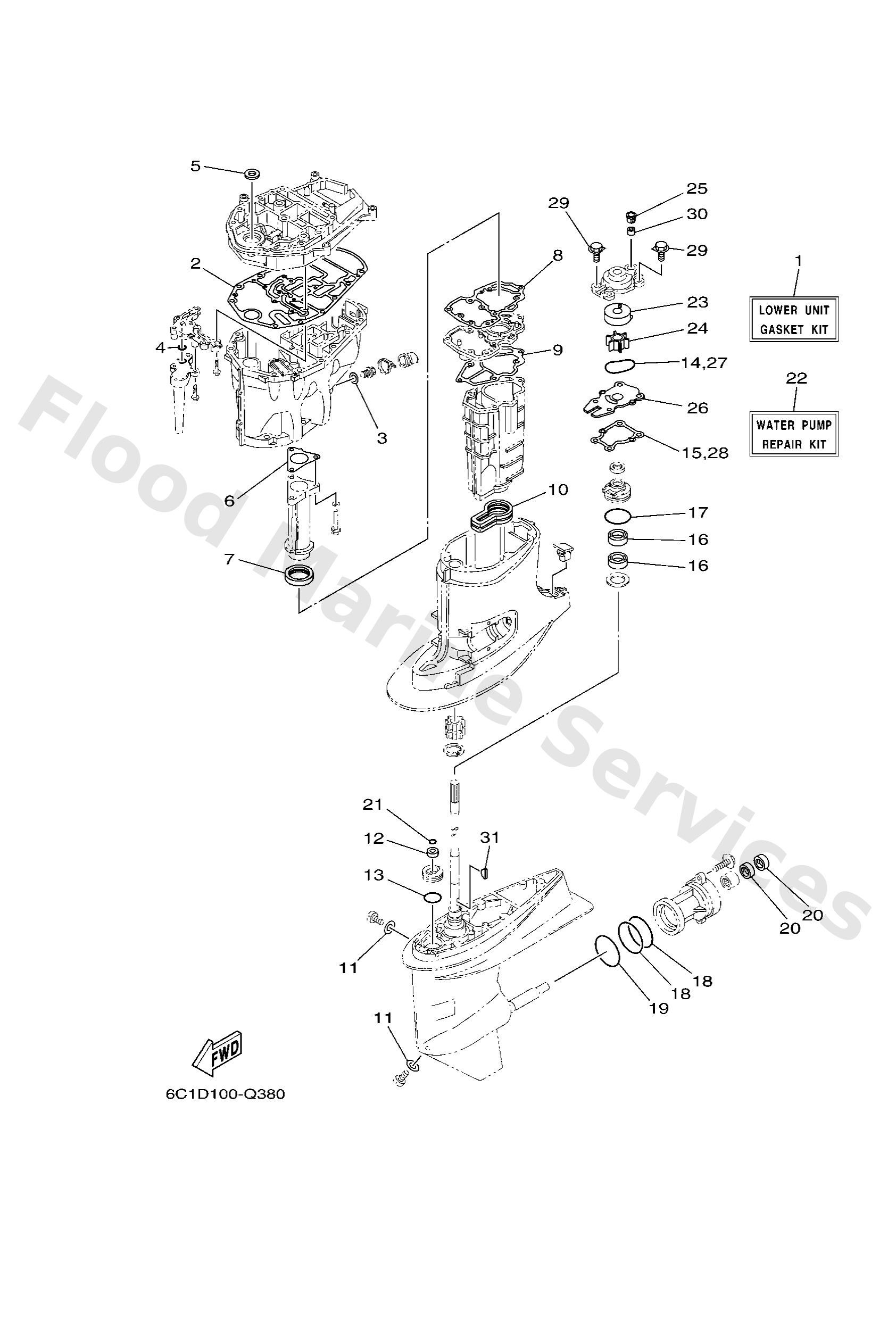

Diagram: REPAIR KIT 2
Parts List
Reference
Description
Price
1
6C5W000122
Lower unit gasket kit
Loading…
↗
2
6C51531201
Gasket, oil pan
Loading…
↗
3
9043014M09
Gasket
Loading…
↗
4
9321012790
O-ring(3ld)
Loading…
↗
5
9310318011
Oil seal
Loading…
↗
6
6C54113300
Gasket, exhaust manifold 1
Loading…
↗
7
6C54613200
Gasket 1
Loading…
↗
8
6C54113400
Gasket, exhaust manifold
Loading…
↗
9
6C54113500
Gasket, exhaust manifold
Loading…
↗
10
6C54512300
Gasket, muffler
Loading…
↗
11
9043008003
Gasket
Loading…
↗
12
9310609014
Oil seal
Loading…
↗
13
9321033MG4
O-ring
Loading…
↗
14
9321059MG7
O-ring
Loading…
↗
15
63D4431600
Gasket, water pump
Loading…
↗
16
9310125M57
Oil seal
Loading…
↗
17
9321048001
O-ring
Loading…
↗
18
9321074MG5
O-ring (xea)
Loading…
↗
19
9321069MG6
O-ring
Loading…
↗
20
9310122M00
Oil seal (22x36x6-663)
Loading…
↗
21
9321007003
O-ring (11m)
Loading…
↗
22
63DW007803
Water pump repair kit
Loading…
↗
23
63D4432200
Insert, cartridge
Loading…
↗
24
6H34435200
Impellar
Loading…
↗
25
63D4431200
Cover, water pump housing
Loading…
↗
26
63D4432300
Outer plate, cartridge
Loading…
↗
29
9011908185
Bolt, with washer
Loading…
↗
30
6634436601
Damper, water seal 2
Loading…
↗
31
9028003024
Key, woodruff(662)
Loading…
↗
