F9.9HMH (2015)
REPAIR KIT 2

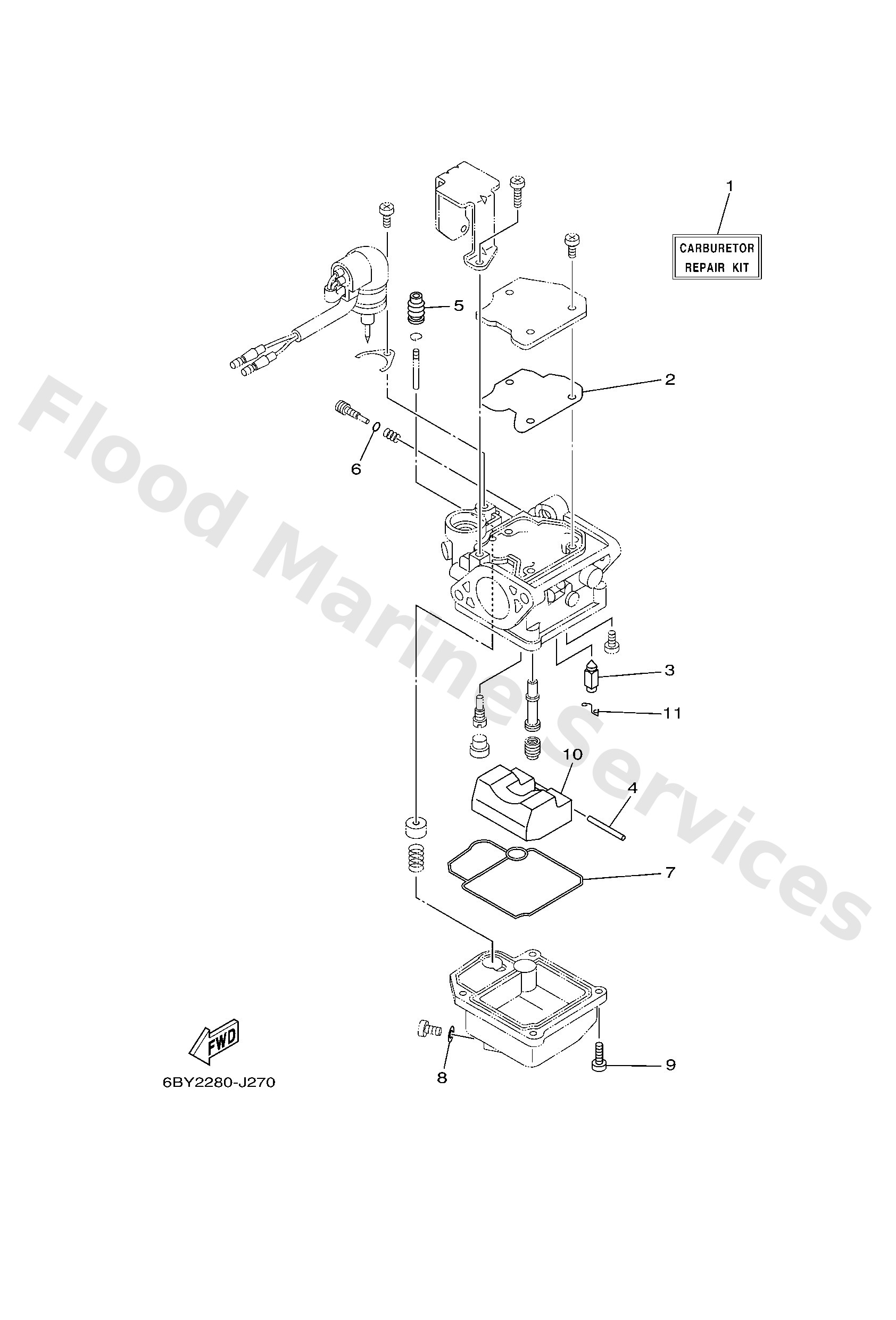

Diagram: REPAIR KIT 2
Parts List
Reference
Description
Price
1
6AHW009301
Carburetor repair kit
Loading…
↗
2
65W1412610
Gasket
Loading…
↗
3
6AH1454600
Valve, needle
Loading…
↗
4
6H41454800
Pin, float arm
Loading…
↗
5
65W1437302
Cover, plunger cap
Loading…
↗
6
67F1439810
O-ring
Loading…
↗
7
6AH1438400
Gasket, float chamber
Loading…
↗
8
65W1439800
Washer
Loading…
↗
9
9798004114
Screw, pan head(ga5)
Loading…
↗
10
6AH1498500
Float
Loading…
↗
11
6331415900
Clip
Loading…
↗
