FL225FET (2018)
REPAIR KIT 2

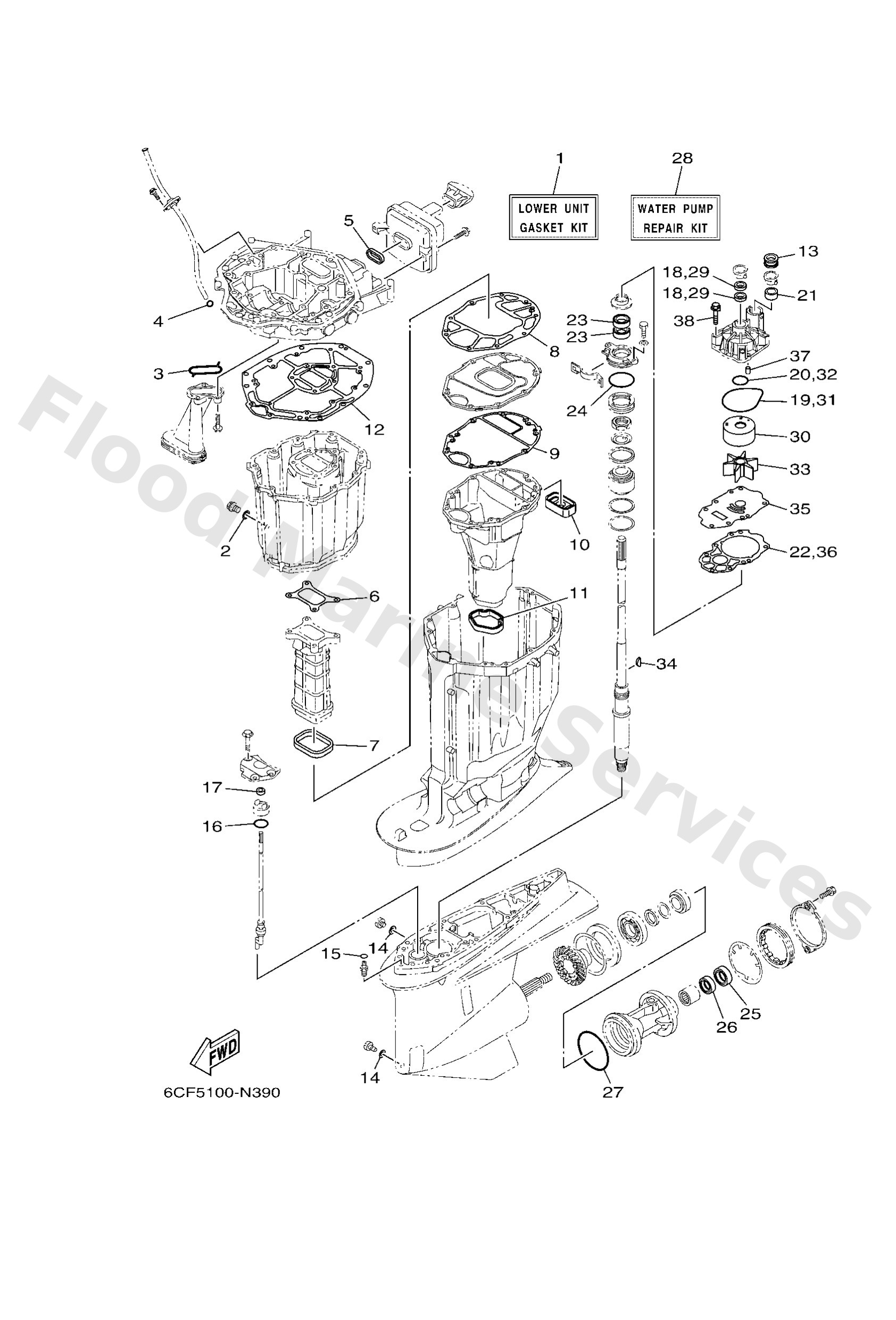

Diagram: REPAIR KIT 2
Parts List
Reference
Description
Price
1
6CEW000121
Lower unit gasket kit
Loading…
↗
2
9043014M09
Gasket
Loading…
↗
3
6AW1341500
Seal, oil strainer
Loading…
↗
4
9321019MJ3
O-ring
Loading…
↗
5
6CB1475500
Gasket, silencer
Loading…
↗
6
6CB4113400
Gasket, exhaust manifold
Loading…
↗
7
6CB4113800
Seal, ext. 1
Loading…
↗
8
6CB4113500
Gasket, exhaust manifold
Loading…
↗
9
6CE4113600
Gasket, exhaust manifold 4
Loading…
↗
10
6CE4512700
Seal
Loading…
↗
11
6CE4512300
Gasket, muffler
Loading…
↗
12
6CB4511300
Gasket, upper casing
Loading…
↗
13
6AW4436600
Damper, water seal 2
Loading…
↗
14
9043008003
Gasket
Loading…
↗
15
9321007003
O-ring (11m)
Loading…
↗
16
9321033M49
O-ring(6l5)
Loading…
↗
17
9310609014
FOR X(25.3")
Oil seal
Loading…
↗
17
9310610001
FOR U(30.3")
Oil seal
Loading…
↗
18
9310422M07
Oil seal(61a)
Loading…
↗
19
9321094003
O-ring
Loading…
↗
20
9321037160
O-ring (6g8)
Loading…
↗
21
6AW4436500
Damper, water seal 1
Loading…
↗
22
6CE4431500
Gasket, water pump
Loading…
↗
23
9310128M16
Oil seal (6e5)
Loading…
↗
24
9321064488
93210-64488
Loading…
↗
25
9310130002
Oil seal
Loading…
↗
26
9310130004
Oil seal
Loading…
↗
27
9321102001
O-ring
Loading…
↗
28
6CEW007801
Water pump repair kit
Loading…
↗
30
6AW4432200
Insert, cartridge
Loading…
↗
33
6CE4435200
Impeller
Loading…
↗
34
9028004002
Key, woodruff
Loading…
↗
35
6CE4432301
Outer plate, cartridge
Loading…
↗
37
9360612019
Pin, dowel (614)
Loading…
↗
38
9011908M14
Bolt, with washer
Loading…
↗
