FL250BET (2009)
REPAIR KIT 2

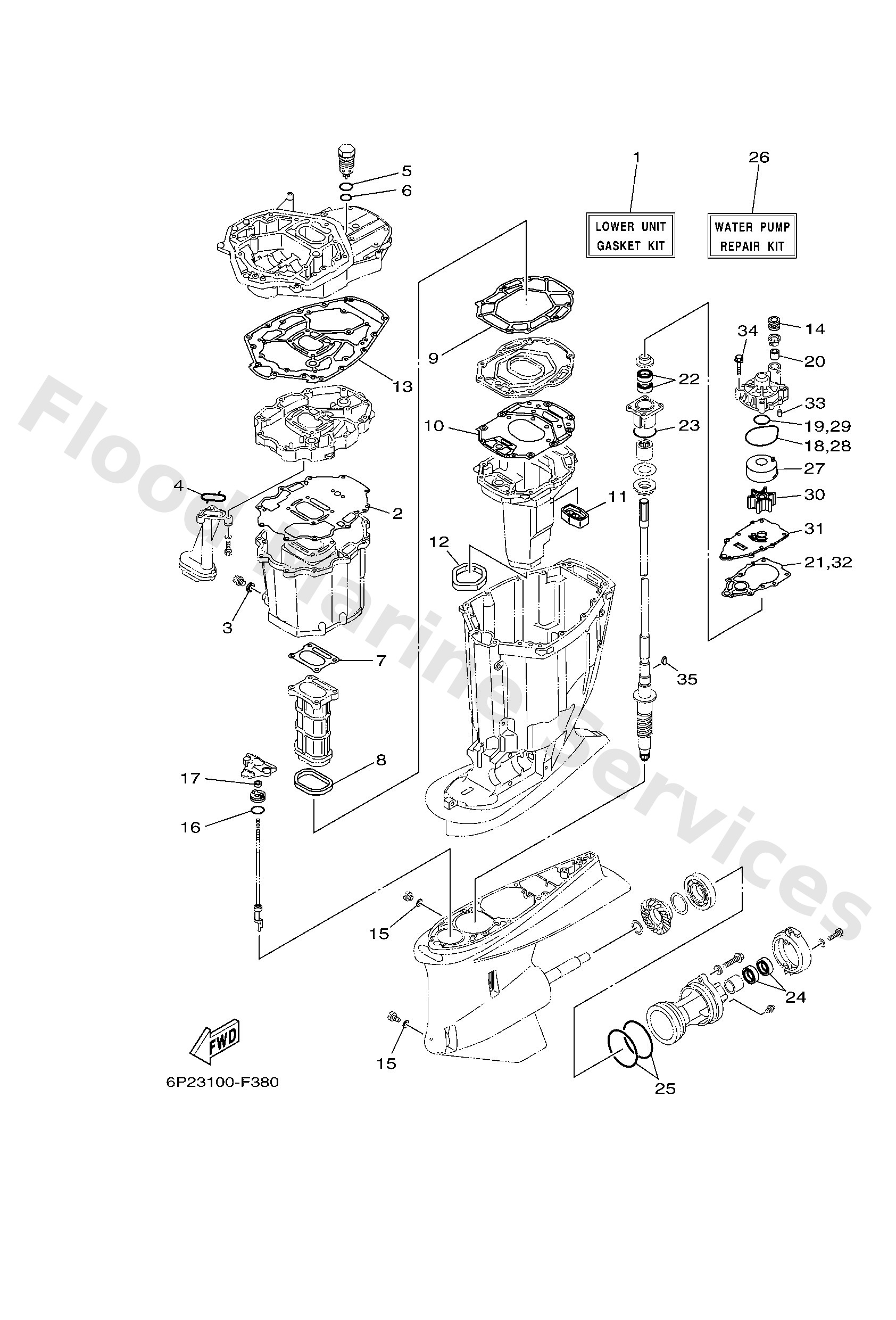

Diagram: REPAIR KIT 2
Parts List
Reference
Description
Price
1
6P2W000130
Lower unit gasket kit
Loading…
↗
2
69J1531201
Gasket, oil pan
Loading…
↗
3
9043014M09
Gasket
Loading…
↗
4
69J1341500
Seal, oil strainer
Loading…
↗
5
9321033MG4
O-ring
Loading…
↗
6
9321028543
O-ring(72f)
Loading…
↗
7
6P24113400
Gasket, exhaust manifold
Loading…
↗
8
69J4113800
Seal, ext. 1
Loading…
↗
9
69J41135A0
Gasket, exhaust manifold
Loading…
↗
10
6S14113600
Gasket, exhaust manifold 4
Loading…
↗
11
69J4512700
Seal
Loading…
↗
12
69J4512300
Gasket, muffler
Loading…
↗
13
69J4511320
Gasket, upper casing
Loading…
↗
14
6E54436600
Damper, water seal 2
Loading…
↗
15
9043008020
Gasket
Loading…
↗
16
9321033M49
O-ring(6l5)
Loading…
↗
17
9310609014
Oil seal
Loading…
↗
18
9321086M38
O-ring (6e5)
Loading…
↗
19
9321037160
O-ring (6g8)
Loading…
↗
20
6E54436500
Damper, water seal 1
Loading…
↗
21
60X44315A0
Gasket, water pump
Loading…
↗
22
9310128M16
Oil seal (6e5)
Loading…
↗
23
9321055M14
O-ring (70e)
Loading…
↗
24
9310130002
Oil seal
Loading…
↗
25
9321104384
O-ring (705)
Loading…
↗
26
6P2W007800
Water pump repair kit
Loading…
↗
27
61A4432202
Insert, cartridge
Loading…
↗
30
6E54435201
Impeller
Loading…
↗
31
6P24432300
Outer plate, cartridge
Loading…
↗
33
9360612019
Pin, dowel (614)
Loading…
↗
34
9011908M14
Bolt, with washer
Loading…
↗
35
9028004M05
Key, woodruff (6e5)
Loading…
↗
