Yamaha Outboard Parts - REPAIR KIT 2 - FL300AET (2010) | Flood Marine

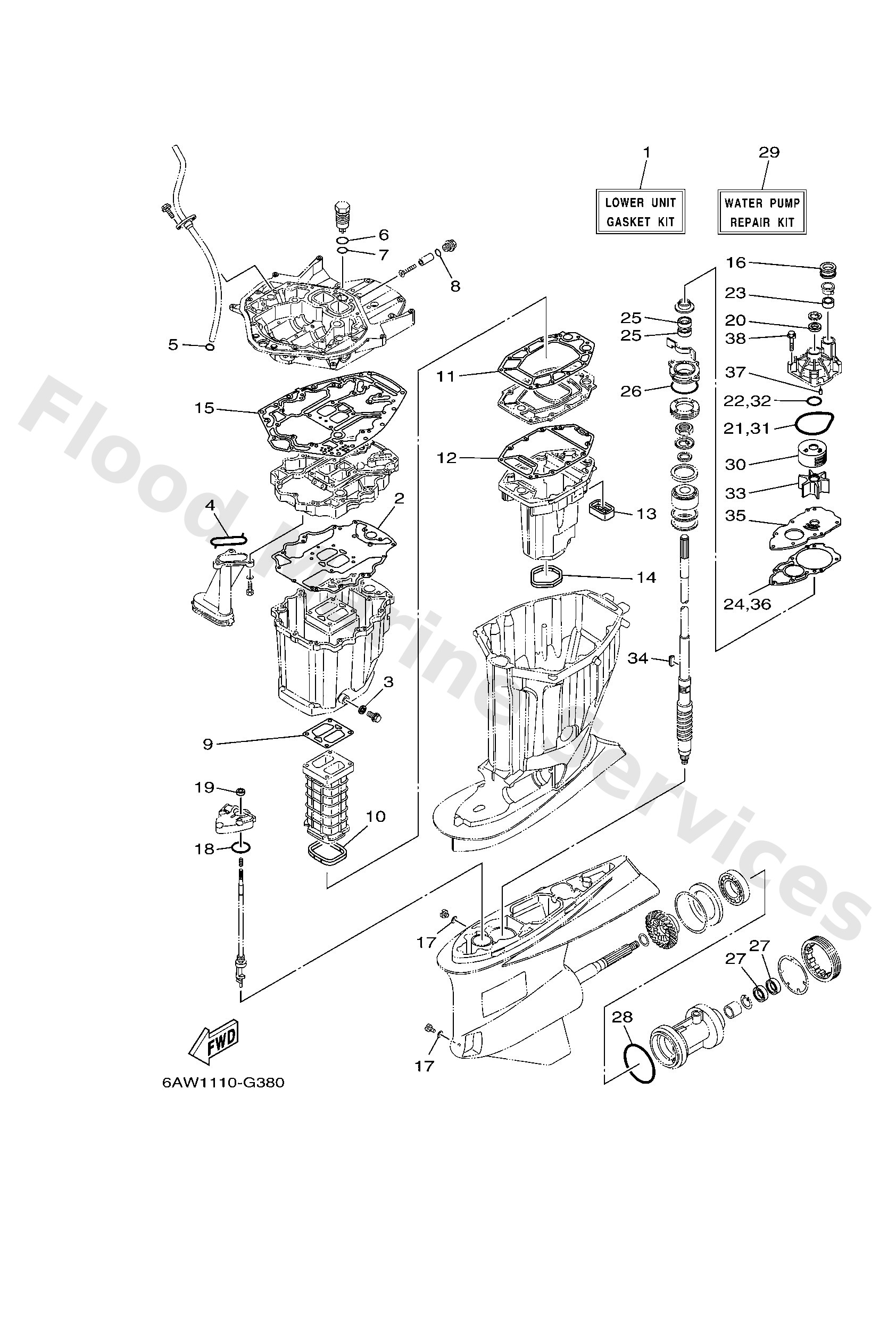

Diagram: REPAIR KIT 2

Diagram

Parts List

Reference
Description
Price


1
6AWW000120
Lower unit gasket kit
Loading…

↗
2
6AW1531200
Gasket, oil pan
Loading…

↗
3
9043014M09
Gasket
Loading…

↗
4
6AW1341500
Seal, oil strainer
Loading…

↗
5
9321019MJ3
O-ring
Loading…

↗
6
9321033MG4
O-ring
Loading…

↗
7
9321028543
O-ring(72f)
Loading…

↗
8
9321019758
O-ring(m01)
Loading…

↗
9
6AW4113401
Gasket, exhaust manifold
Loading…

↗
10
6AW4113800
Seal, ext. 1
Loading…

↗
11
6AW4113500
Gasket, exhaust manifold
Loading…

↗
12
6AW4113600
Gasket, exhaust manifold 4
Loading…

↗
13
6AW4512700
Seal
Loading…

↗
14
69J4512300
Gasket, muffler
Loading…

↗
15
6AW4511300
Gasket, upper casing
Loading…

↗
16
6AW4436600
Damper, water seal 2
Loading…

↗
17
9043008020
Gasket
Loading…

↗
18
9321048214
O-ring
Loading…

↗
19
9310112M70
Oil seal
Loading…

↗
20
9310924001
Oil seal
Loading…

↗
21
9321094003
O-ring
Loading…

↗
22
9321037160
O-ring (6g8)
Loading…

↗
23
6AW4436500
Damper, water seal 1
Loading…

↗
24
6AW4431500
Gasket, water pump
Loading…

↗
25
9310128004
Oil seal
Loading…

↗
26
9321069MG6
O-ring
Loading…

↗
27
9310135018
Oil seal
Loading…

↗
28
9321110232
O-ring (278)
Loading…

↗
29
6AWW007800
Water pump repair kit
Loading…

↗
30
6AW4432200
Insert, cartridge
Loading…

↗
33
6AW4435200
Impeller
Loading…

↗
34
6AW4433600
Key
Loading…

↗
35
6AW4432300
Outer plate, cartridge
Loading…

↗
37
9360612019
Pin, dowel (614)
Loading…

↗
38
9011908M14
Bolt, with washer
Loading…

↗
