Yamaha Outboard Parts - REPAIR KIT 2 - FT25FET (2012) | Flood Marine

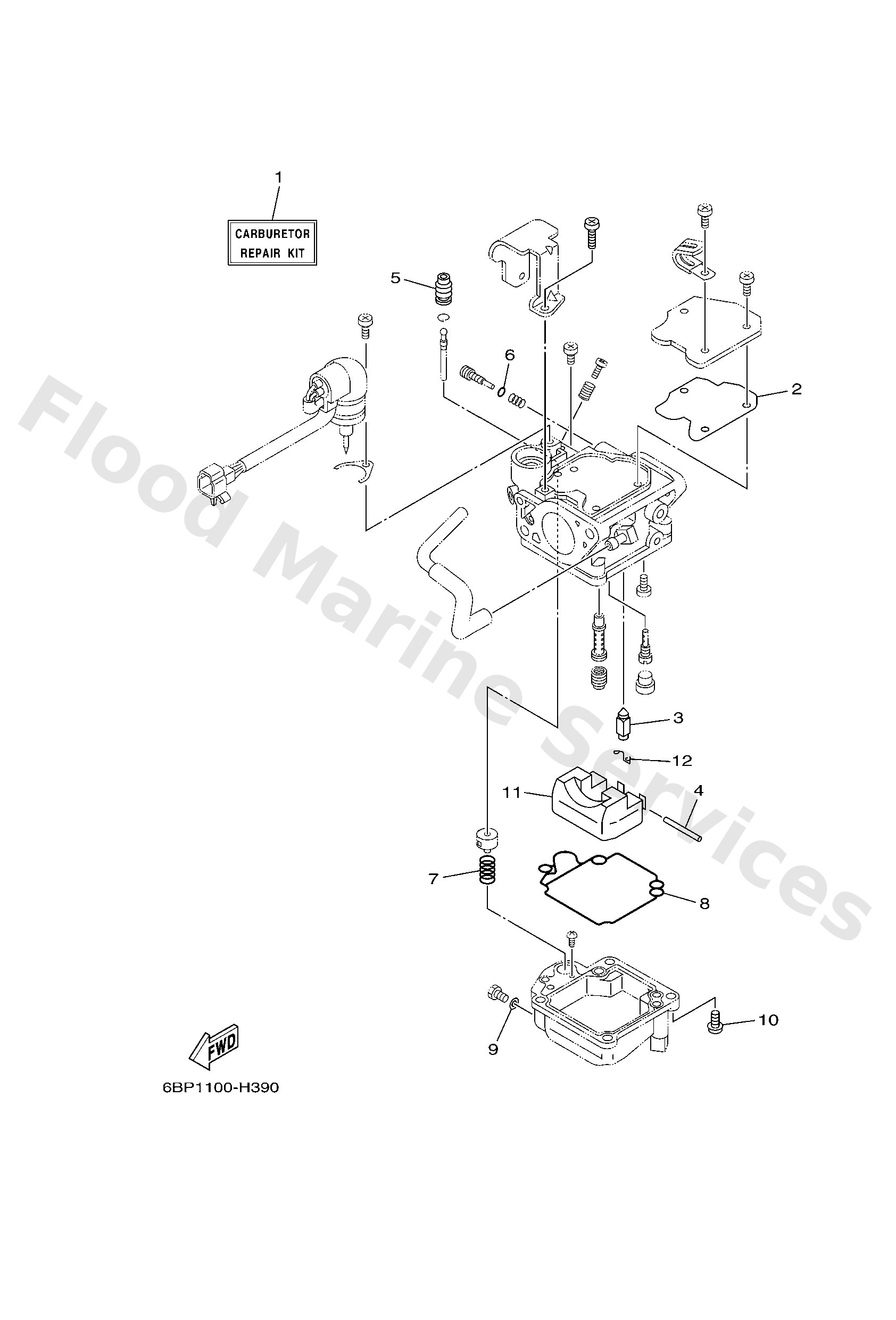

Diagram: REPAIR KIT 2

Diagram

Parts List

Reference
Description
Price


1
6BLW009300
Carburetor repair kit
Loading…

↗
2
65W1412610
Gasket
Loading…

↗
3
6AH1454600
Valve, needle
Loading…

↗
4
6H41454800
Pin, float arm
Loading…

↗
5
65W1437302
Cover, plunger cap
Loading…

↗
6
67C1439700
O-ring
Loading…

↗
7
65W1433500
Spring, plunger
Loading…

↗
8
65W1438400
Gasket, float chamber
Loading…

↗
9
65W1439800
Washer
Loading…

↗
10
9798004114
Screw, pan head(ga5)
Loading…

↗
11
63V1498500
Float
Loading…

↗
12
6631415900
Clip
Loading…

↗
