Yamaha Outboard Parts - REPAIR KIT 2 - FT50CET (2003) | Flood Marine

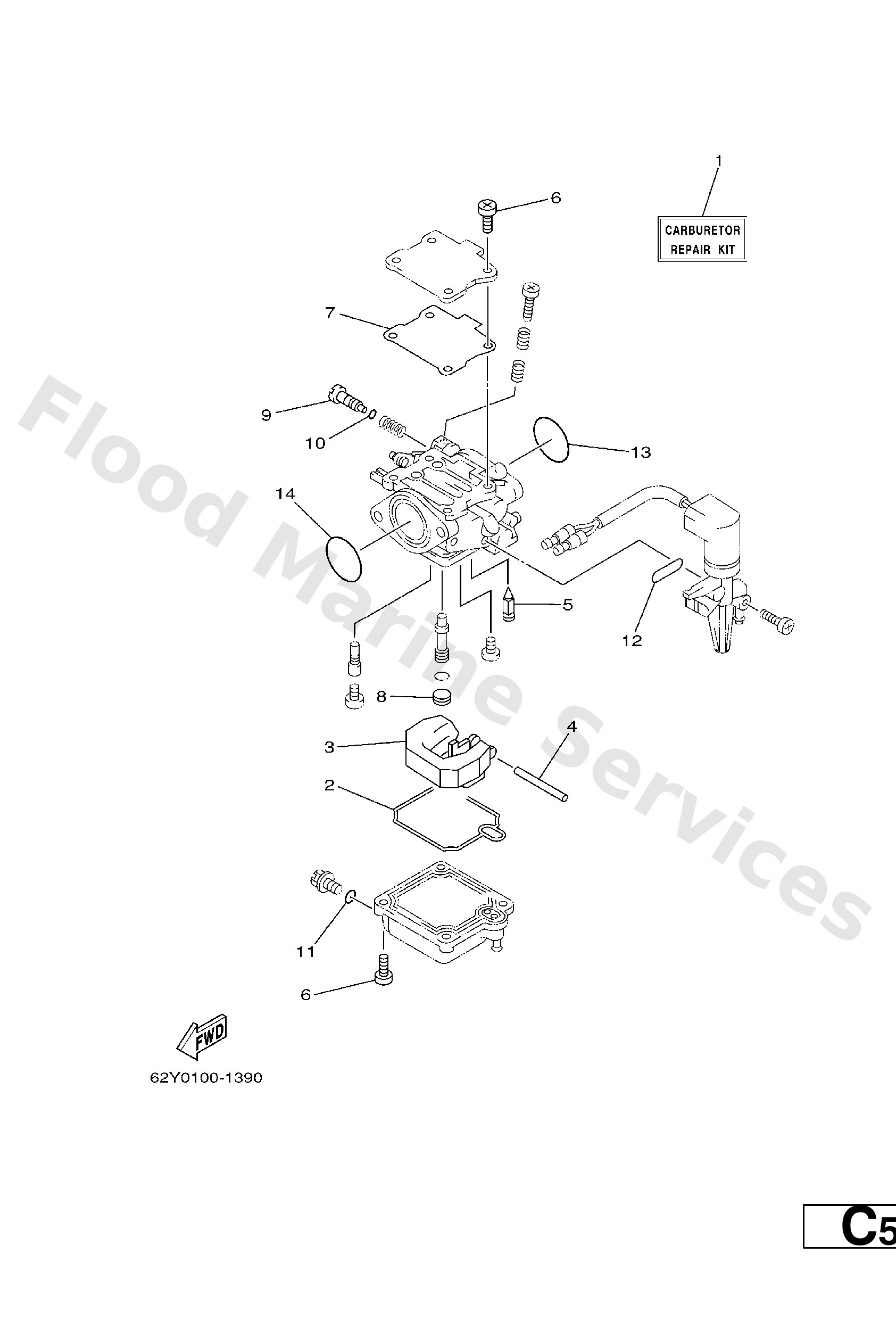

Diagram: REPAIR KIT 2

Diagram

Parts List

Reference
Description
Price


1
62Y−W0093−10
Carburetor repair kit
Loading…

↗
2
62Y−14384−30
Gasket, float chamber
Loading…

↗
3
6L2−14385−00
Float
Loading…

↗
4
6E5−14386−01
Pin, float
Loading…

↗
5
62Y−14392−00
Valve, needle
Loading…

↗
6
62Y−14321−00
Screw, throttle
Loading…

↗
7
62Y−14399−30
Valve, bimetal
Loading…

↗
8
62Y−14355−30
Plug
Loading…

↗
9
62Y−14323−30
Screw, air adjusting
Loading…

↗
10
2T4−14397−00
O-ring
Loading…

↗
11
652−14397−00
Ring, o
Loading…

↗
12
62Y−14398−30
Gasket
Loading…

↗
13
93210−30MH4
O-ring(62y)
Loading…

↗
14
93210−35M86
O-ring(6l2)
Loading…

↗
