Yamaha Outboard Parts - REPAIR KIT 2 - FT60DET (2005) | Flood Marine

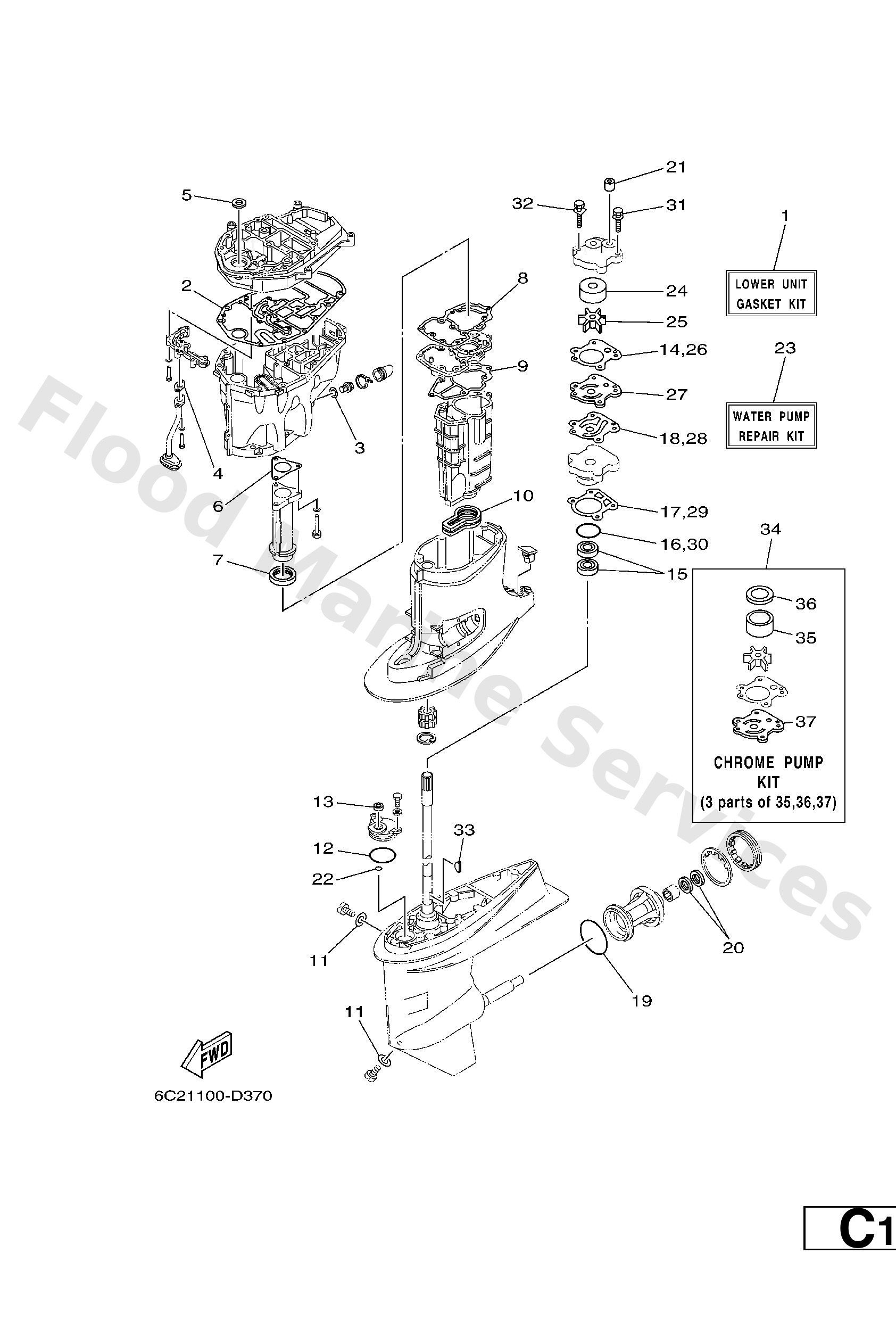

Diagram: REPAIR KIT 2

Diagram

Parts List

Reference
Description
Price


1
6C6W000120
Lower unit gasket kit
Loading…

↗
2
6C51531200
Gasket, oil pan
Loading…

↗
3
9043014M09
Gasket
Loading…

↗
4
6C51341400
Gasket, strainer cover
Loading…

↗
5
9310318011
Oil seal
Loading…

↗
6
6C54113300
Gasket, exhaust manifold 1
Loading…

↗
7
6C54613200
Gasket 1
Loading…

↗
8
6C54113400
Gasket, exhaust manifold
Loading…

↗
9
6C54113500
Gasket, exhaust manifold
Loading…

↗
10
6C54512300
Gasket, muffler
Loading…

↗
11
9043008020
Gasket
Loading…

↗
12
9321049046
O-ring (620)
Loading…

↗
13
9310609014
Oil seal
Loading…

↗
14
6H344315A0
Gasket,water pump 1
Loading…

↗
15
9310123070
Oil seal (663)
Loading…

↗
16
9321046044
O-ring
Loading…

↗
17
68844316A0
Gasket,water pump 2
Loading…

↗
18
6H344324A0
Gasket,cartridge 0ut,plate
Loading…

↗
19
9321086M39
O-ring (6e5)
Loading…

↗
20
9310125M03
Oil seal
Loading…

↗
21
6634436600
Damper, water seal 2
Loading…

↗
22
9321007003
O-ring (11m)
Loading…

↗
23
6H3W007802
Water pump repair kit
Loading…

↗
24
6634432200
Insert, cartridge
Loading…

↗
25
6H34435200
Impellar
Loading…

↗
27
6H34432300
Outer plate, cartridge
Loading…

↗
31
9011908M14
Bolt, with washer
Loading…

↗
32
9011908M33
Bolt, with washer(6b0)
Loading…

↗
33
9028003M03
Key, woodruff (697)
Loading…

↗
34
6H3W00780A
Chrome pump kit
Loading…

↗
35
6704432201
Insert, cartridge
Loading…

↗
36
6704432100
Inner plate, cartridge
Loading…

↗
37
6H34432340
Outer plate, cartridge
Loading…

↗
