FT9.9DMH (2008)
REPAIR KIT 2

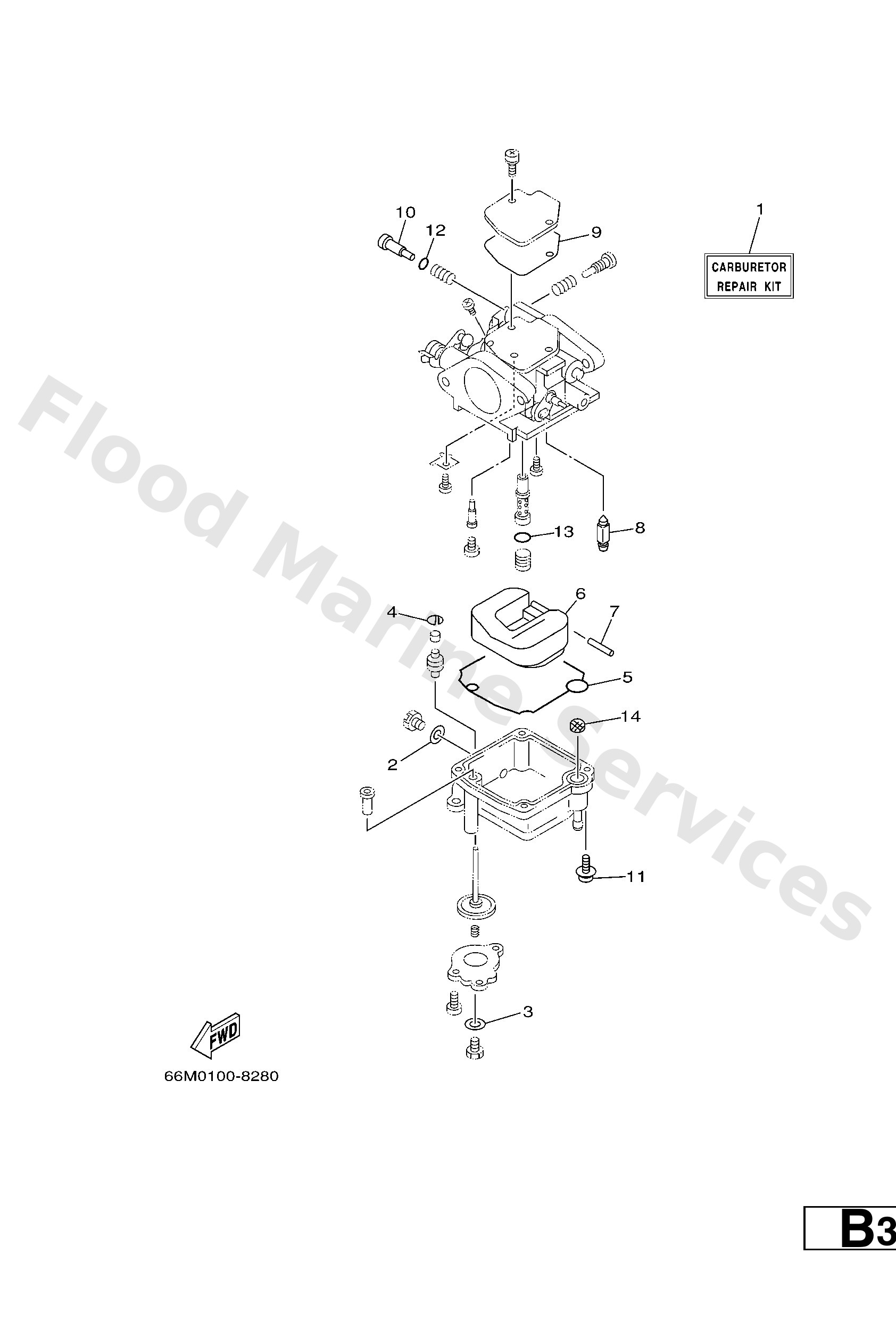

Diagram: REPAIR KIT 2
Parts List
Reference
Description
Price
1
66MW009301
Carburetor repair kit
Loading…
↗
2
66M1439800
Gasket
Loading…
↗
3
6L21439800
Gasket
Loading…
↗
4
66M1437700
Stopper
Loading…
↗
5
66M1438400
Gasket, float chamber
Loading…
↗
6
6L21438500
Float
Loading…
↗
7
6E51438601
Pin, float
Loading…
↗
8
6L21439200
Valve, needle
Loading…
↗
9
62Y1439900
Gasket
Loading…
↗
10
5H01432300
Pilot screw set
Loading…
↗
11
9798004112
Screw, pan head (686)
Loading…
↗
12
62Y1439700
O-ring
Loading…
↗
13
6F51439700
O-ring
Loading…
↗
14
66M1482700
Filter
Loading…
↗
