Yamaha Outboard Parts - REPAIR KIT 2 - FT9.9LMH (2016) | Flood Marine

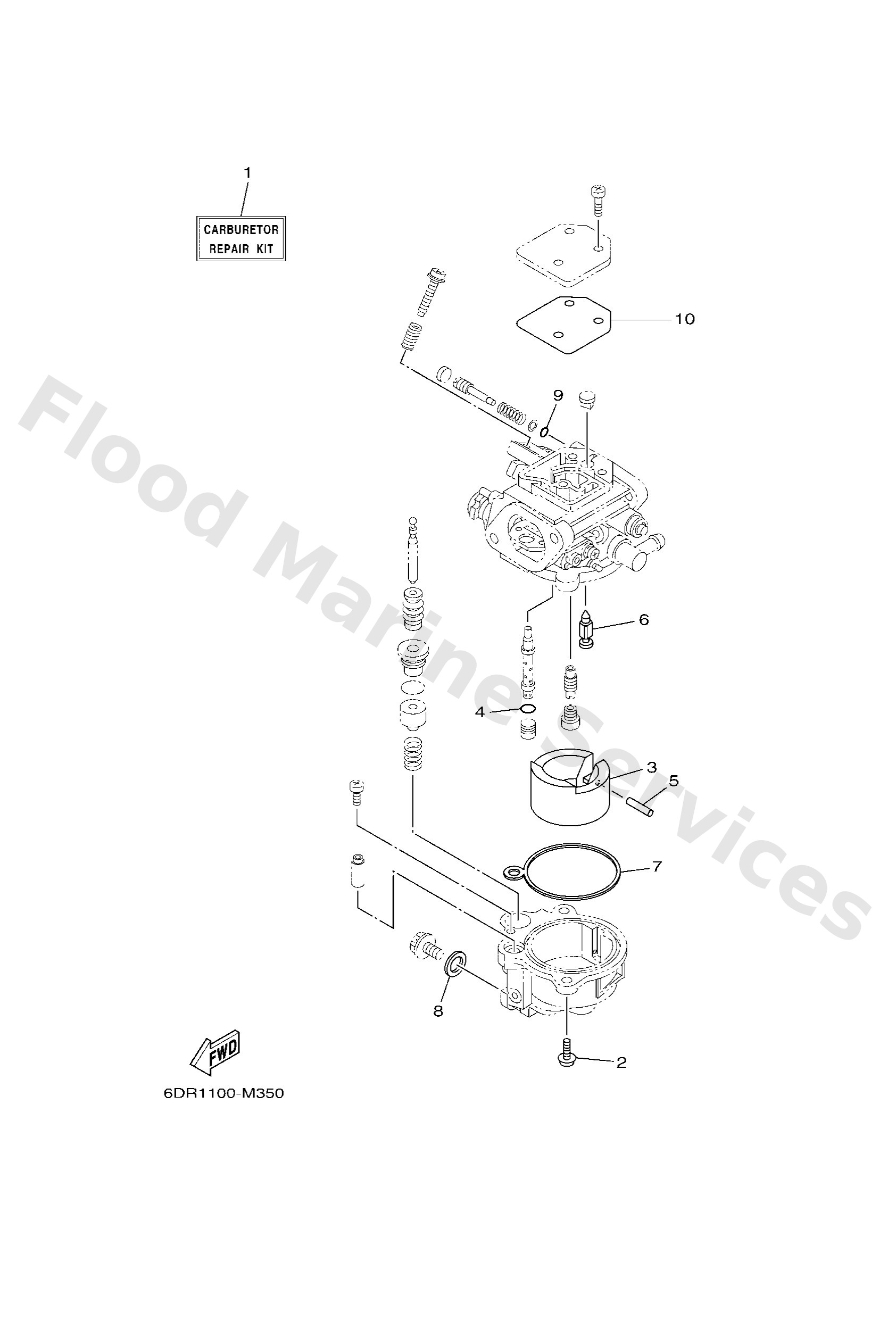

Diagram: REPAIR KIT 2

Diagram

Parts List

Reference
Description
Price


1
6DRW009300
Carburetor repair kit
Loading…

↗
2
62Y1432100
Screw, throttle
Loading…

↗
3
6DR1438500
Float
Loading…

↗
4
6DR1456100
O-ring
Loading…

↗
5
4FP1438600
Pin, float
Loading…

↗
6
6DR1433600
Needle
Loading…

↗
7
6DR1498400
Gasket, float chamber
Loading…

↗
8
6521439700
Ring, o
Loading…

↗
9
6DR1439700
O-ring
Loading…

↗
10
6DR1481800
Cover gasket
Loading…

↗
