L200FETO (2006)
REPAIR KIT 2

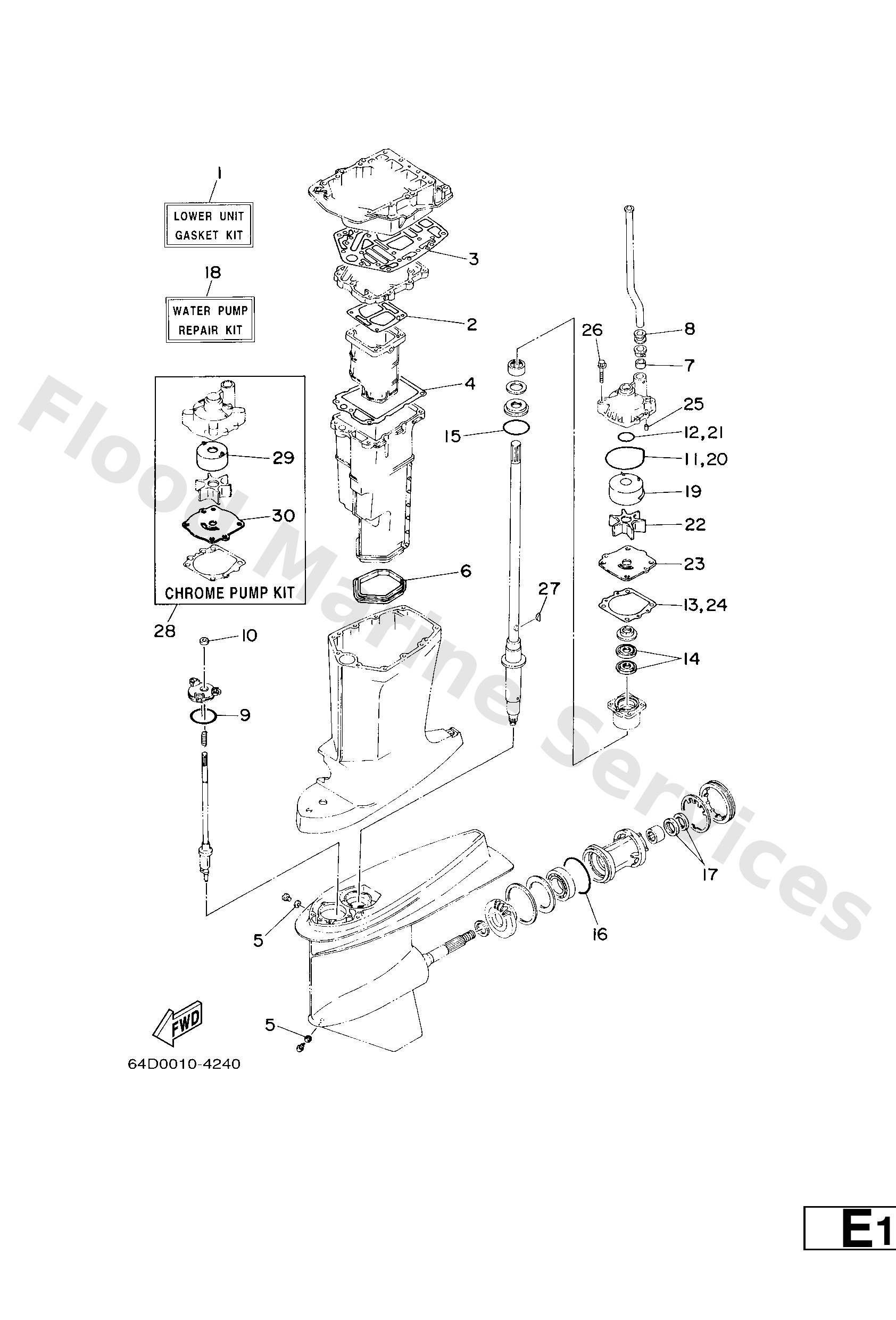

Diagram: REPAIR KIT 2
Parts List
Reference
Description
Price
1
6G5W0001C1
Lower unit gasket kit
Loading…
↗
2
6G541134A1
Gasket, exhaust manifold
Loading…
↗
3
6G545114A1
Gasket, upper casing
Loading…
↗
4
6E541135A0
Gasket, exhaust manifold
Loading…
↗
5
9043008020
Gasket
Loading…
↗
6
6E54512300
Gasket, muffler
Loading…
↗
7
6E54436500
Damper, water seal 1
Loading…
↗
8
6E54436600
Damper, water seal 2
Loading…
↗
9
9321058144
O-ring(47x)
Loading…
↗
10
9310609014
Oil seal
Loading…
↗
11
9321086M38
O-ring (6e5)
Loading…
↗
12
9321037160
O-ring (6g8)
Loading…
↗
13
6E544315A0
Gasket,water pump
Loading…
↗
14
9310128M16
Oil seal (6e5)
Loading…
↗
15
9321055M14
O-ring (70e)
Loading…
↗
16
9321097M55
O-ring (6g5)
Loading…
↗
17
9310130M17
Oil seal (6e5)
Loading…
↗
18
61AW0078A3
Water pump repair kit
Loading…
↗
19
61A4432202
Insert, cartridge
Loading…
↗
22
6E54435201
Impeller
Loading…
↗
23
6G54432300
Outer plate, cartridge
Loading…
↗
25
9360612019
Pin, dowel (614)
Loading…
↗
26
9011908M14
Bolt, with washer
Loading…
↗
27
9028004M05
Key, woodruff (6e5)
Loading…
↗
28
61AW00782A
Chrome pump kit
Loading…
↗
29
6R34432242
Insert, cartridge
Loading…
↗
30
6G54432340
Outer plate, cartridge
Loading…
↗
