L250AETO (2006)
REPAIR KIT 2

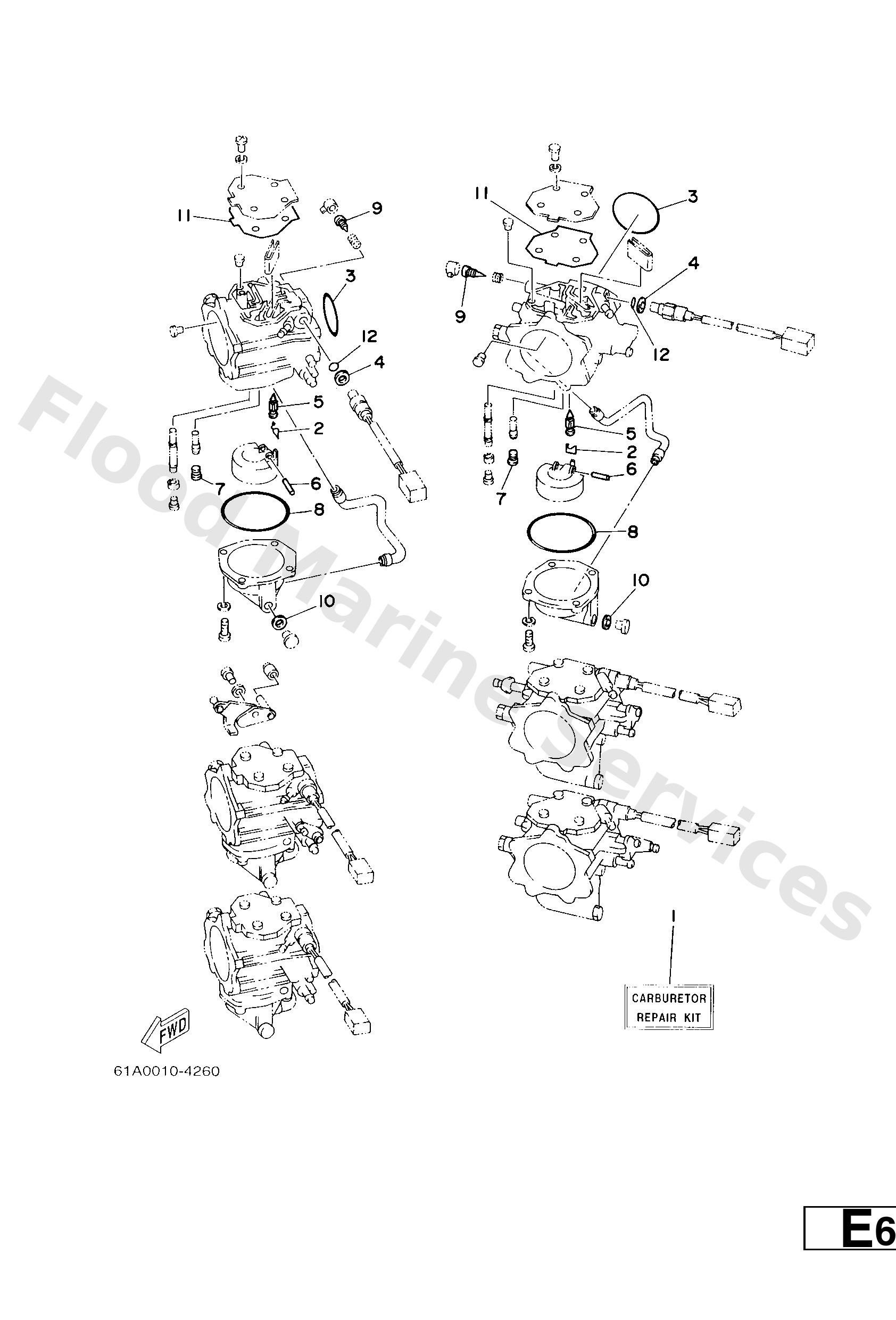

Diagram: REPAIR KIT 2
Parts List
Reference
Description
Price
1
61AW009301
Carburetor repair kit
Loading…
↗
2
6E51415900
Clip
Loading…
↗
3
9321050MA8
O-ring(61a)
Loading…
↗
4
61A1419800
Gasket
Loading…
↗
5
6E51454600
Valve, needle
Loading…
↗
6
61A1438600
Pin, Float
Loading…
↗
7
61A1439400
Valve, Drain
Loading…
↗
8
61A1438400
Gasket, float chamber
Loading…
↗
9
6E51432303
Screw, air adjusting
Loading…
↗
10
61A1499500
Gasket
Loading…
↗
11
61A1495900
Gasket
Loading…
↗
12
61A1456100
O-ring
Loading…
↗
