Yamaha Outboard Parts - REPAIR KIT 2 - L250GETO (2008) | Flood Marine

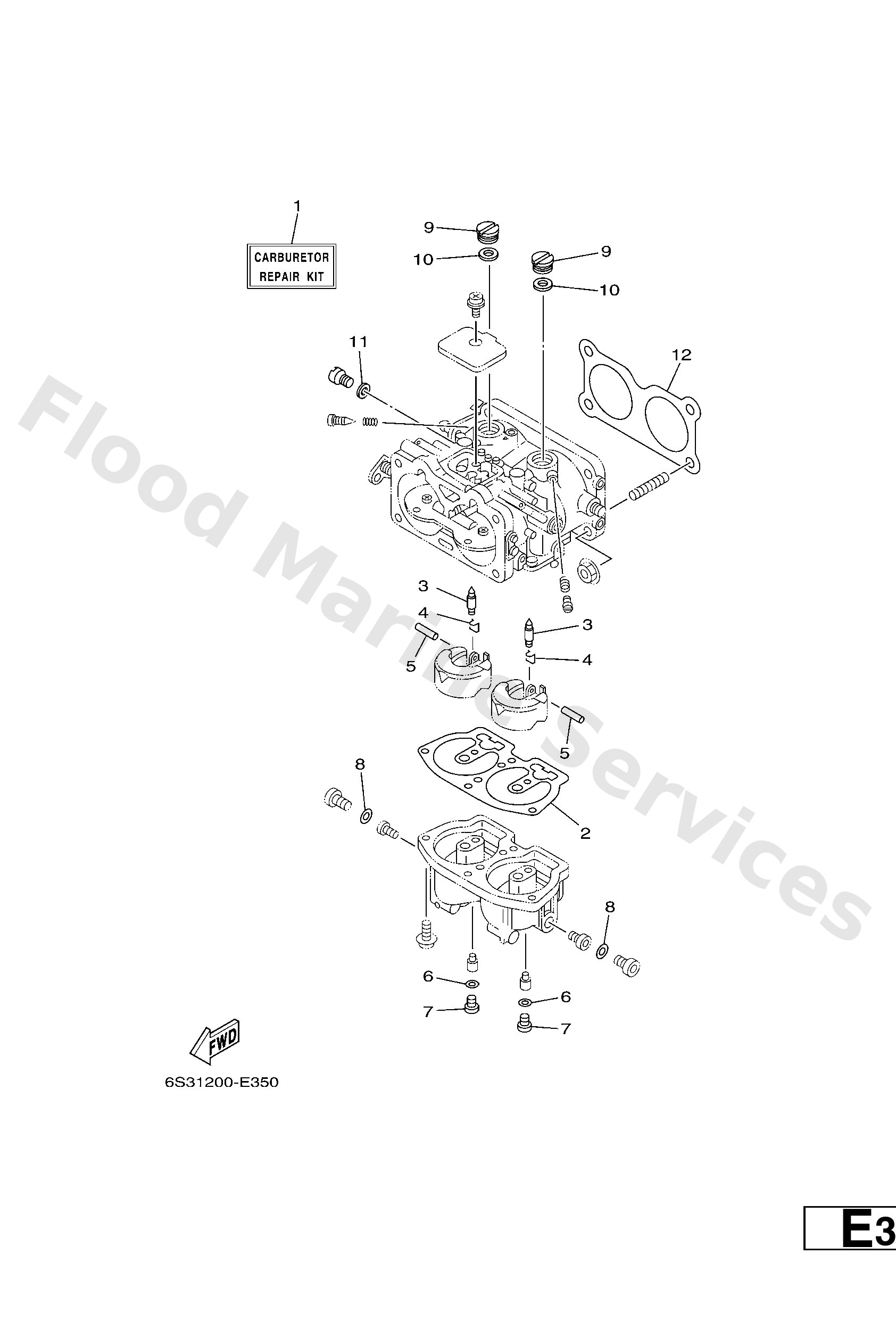

Diagram: REPAIR KIT 2

Diagram

Parts List

Reference
Description
Price


1
6S3W009300
Carburetor repair kit
Loading…

↗
2
64D1438401
Gasket, float chamber
Loading…

↗
3
6E51454600
Valve, needle
Loading…

↗
4
6E51415900
Clip
Loading…

↗
5
6E51438602
Pin, float
Loading…

↗
6
61U1495900
Gasket
Loading…

↗
7
64D1439400
Valve, drain
Loading…

↗
8
6E51439801
Gasket
Loading…

↗
9
6E51432801
Plug
Loading…

↗
10
6E51497900
Gasket
Loading…

↗
11
6J81495900
Gasket, drin screw
Loading…

↗
12
6S31419800
Gasket
Loading…

↗
