LZ250DETO (2007)
REPAIR KIT 2

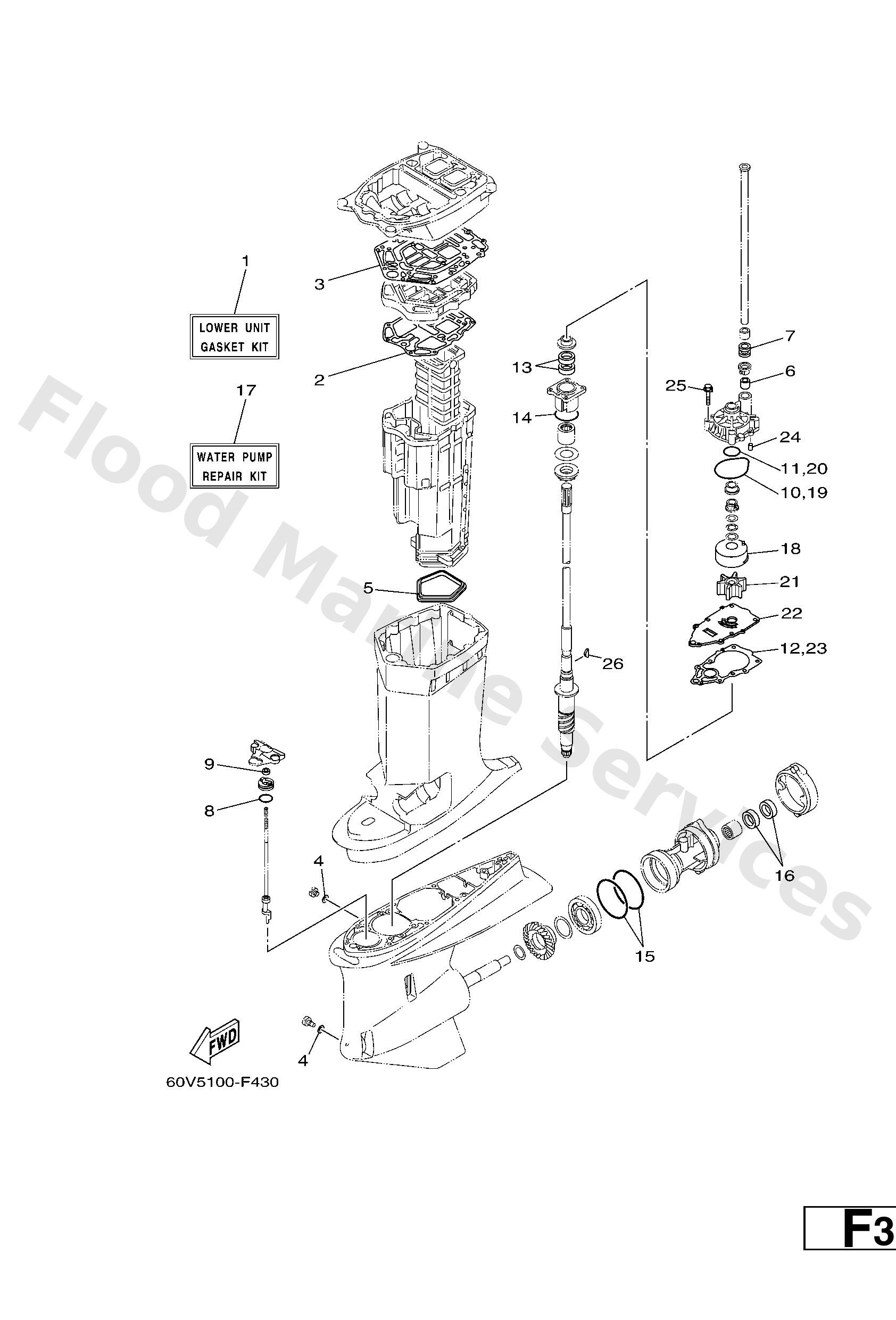

Diagram: REPAIR KIT 2
Parts List
Reference
Description
Price
1
60VW000121
-
Loading…
↗
2
6D04113400
Gasket, exhaust manifold
Loading…
↗
3
60V4511400
Gasket, upper casing
Loading…
↗
4
9043008020
Gasket
Loading…
↗
5
61A4512301
Gasket, muffler
Loading…
↗
6
6E54436500
Damper, water seal 1
Loading…
↗
7
6E54436600
Damper, water seal 2
Loading…
↗
8
9321033M49
O-ring(6l5)
Loading…
↗
9
9310609014
Oil seal
Loading…
↗
10
9321086M38
O-ring (6e5)
Loading…
↗
11
9321037160
O-ring (6g8)
Loading…
↗
12
60X44315A0
Gasket, water pump
Loading…
↗
13
9310128M16
Oil seal (6e5)
Loading…
↗
14
9321055M14
O-ring (70e)
Loading…
↗
15
9321104384
O-ring (705)
Loading…
↗
16
9310130002
Oil seal
Loading…
↗
17
6P2W007800
Water pump repair kit
Loading…
↗
18
61A4432202
Insert, cartridge
Loading…
↗
21
6E54435201
Impeller
Loading…
↗
22
6P24432300
Outer plate, cartridge
Loading…
↗
24
9360612019
Pin, dowel (614)
Loading…
↗
25
9011908M14
Bolt, with washer
Loading…
↗
26
9028004M05
Key, woodruff (6e5)
Loading…
↗
