VF115B (2025)
REPAIR KIT 2

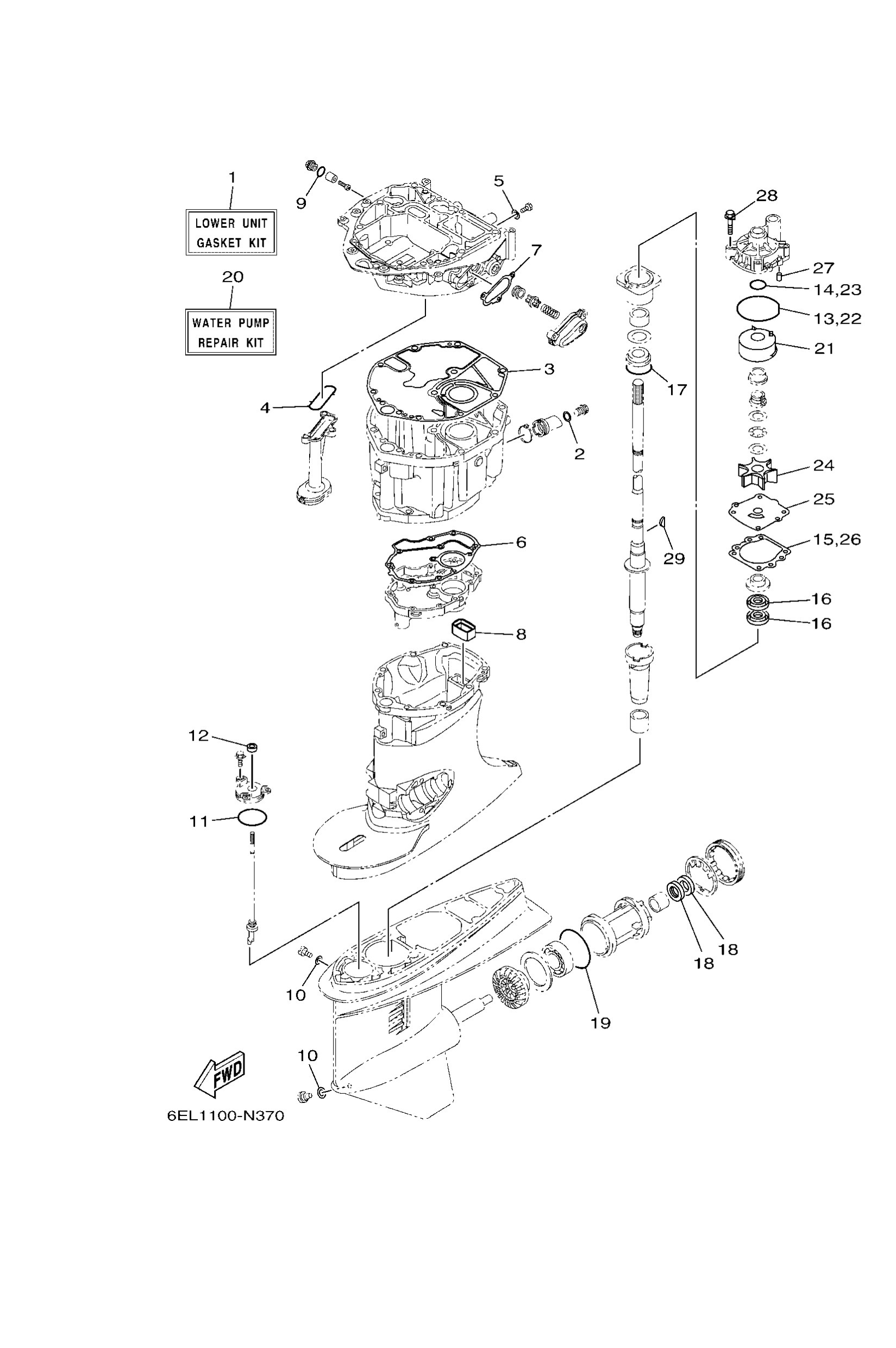

Diagram: REPAIR KIT 2
Parts List
Reference
Description
Price
1
6EKW000121
Lower unit gasket kit
Loading…
↗
2
9043014M09
Gasket
Loading…
↗
3
6EK1531201
Gasket, oil pan
Loading…
↗
4
67F1341500
Seal, oil strainer
Loading…
↗
5
9043008143
Gasket (256-11198-00)
Loading…
↗
6
6EK4113400
Gasket, exhaust manifold
Loading…
↗
7
6EK12435A0
Gasket
Loading…
↗
8
67F4512700
Seal
Loading…
↗
9
9321013M63
O-ring (6g8)
Loading…
↗
10
9043008003
Gasket
Loading…
↗
11
9321058144
O-ring(47x)
Loading…
↗
12
9310609014
Oil seal
Loading…
↗
13
9321086M38
O-ring (6e5)
Loading…
↗
14
9321037160
O-ring (6g8)
Loading…
↗
15
6E544315A0
Gasket,water pump
Loading…
↗
16
9310128M16
Oil seal (6e5)
Loading…
↗
17
9321055M14
O-ring (70e)
Loading…
↗
18
9310130M17
Oil seal (6e5)
Loading…
↗
19
9321086M39
O-ring (6e5)
Loading…
↗
20
68VW007801
Water pump repair kit
Loading…
↗
21
61A4432202
Insert, cartridge
Loading…
↗
24
6E54435201
Impeller
Loading…
↗
25
6EK4432300
Outer plate, cartridge
Loading…
↗
27
9360612019
Pin, dowel (614)
Loading…
↗
28
9011908191
Bolt, with washer
Loading…
↗
29
9028004M05
Key, woodruff (6e5)
Loading…
↗
