XF425NSA7 (2018)
REPAIR KIT 2

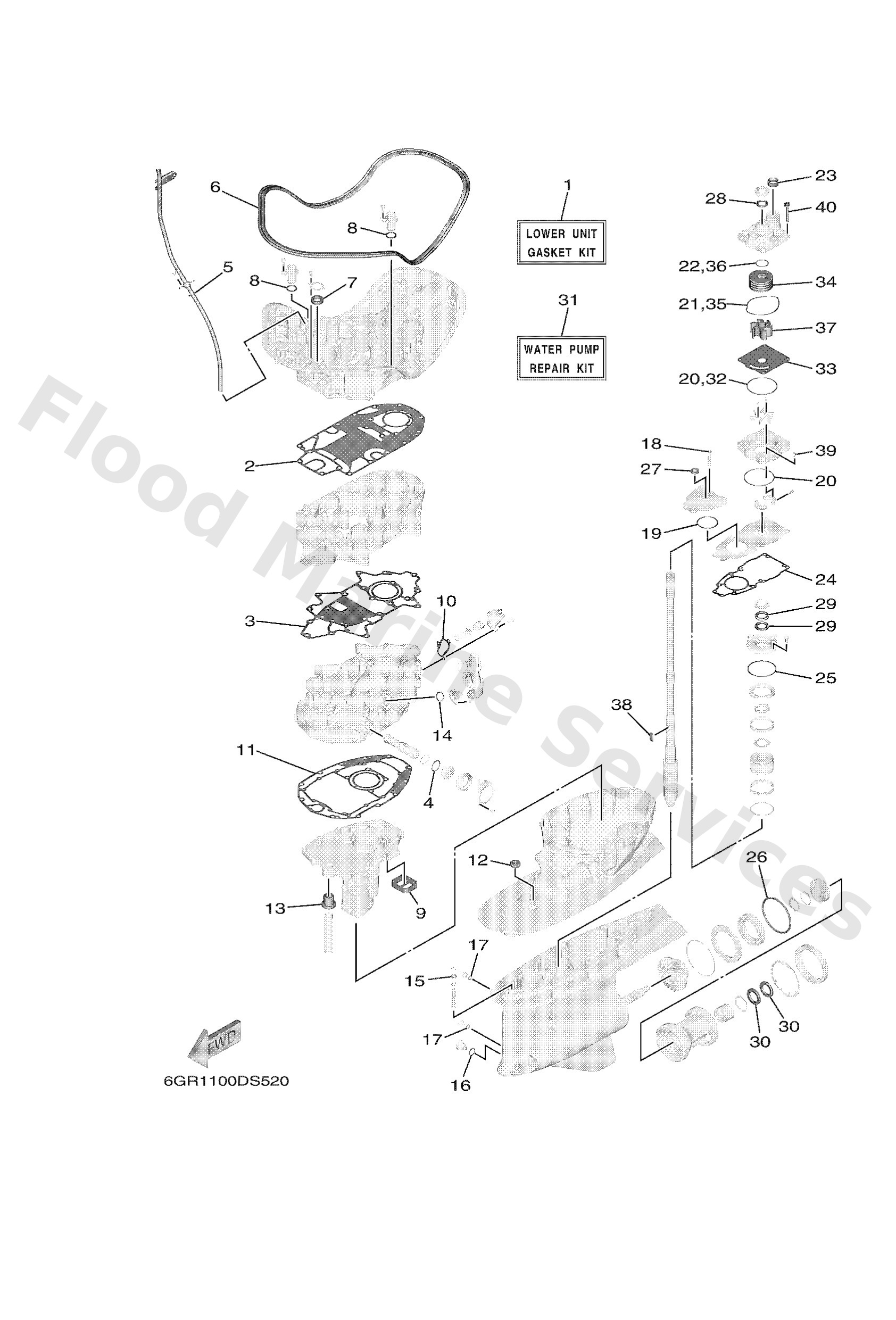

Diagram: REPAIR KIT 2
Parts List
Reference
Description
Price
1
6GRW000120
Lower unit gasket kit
Loading…
↗
2
6GR1531200
Gasket, oil pan
Loading…
↗
3
6GR1531C00
Gasket, oil pan 2
Loading…
↗
4
9321034633
O-ring (21a)
Loading…
↗
5
9321019MJ3
O-ring
Loading…
↗
6
6GR4271600
Rubber seal 1
Loading…
↗
7
9310226004
Oil seal
Loading…
↗
8
6GR4436600
Damper, water seal 2
Loading…
↗
9
6GR4512700
Seal
Loading…
↗
10
6EK12435A0
Gasket
Loading…
↗
11
6GR4511300
Gasket, upper casing
Loading…
↗
12
6GR4452100
Seal
Loading…
↗
13
6GR4436700
Damper, water seal 3
Loading…
↗
15
9321010010
O-ring
Loading…
↗
16
9321019123
O-ring (646)
Loading…
↗
17
9321009165
O-ring
Loading…
↗
18
9321007100
O-ring (214)
Loading…
↗
19
9321064488
93210-64488
Loading…
↗
20
9321097690
O-ring(50m)
Loading…
↗
21
9321108001
O-ring
Loading…
↗
22
9321037160
O-ring (6g8)
Loading…
↗
23
6GR4436500
Damper, water seal 1
Loading…
↗
24
6GR4431500
Gasket, water pump
Loading…
↗
25
9321089535
O-ring (70e)
Loading…
↗
26
9321126001
O-ring
Loading…
↗
27
9310614001
Oil seal
Loading…
↗
28
9310926001
Oil seal
Loading…
↗
29
9310130018
Oil seal
Loading…
↗
30
9310137001
Oil seal
Loading…
↗
31
6GRW007800
Water pump repair kit
Loading…
↗
33
6GR4432300
Outer plate, cartridge
Loading…
↗
34
6GR4432200
Insert, cartridge
Loading…
↗
37
6GR4435200
Impeller
Loading…
↗
38
6AW4433600
Key
Loading…
↗
39
9360612019
Pin, dowel (614)
Loading…
↗
40
9011908M16
Bolt, with washer(6h0)
Loading…
↗
