Z175GETO (2002)
REPAIR KIT 2

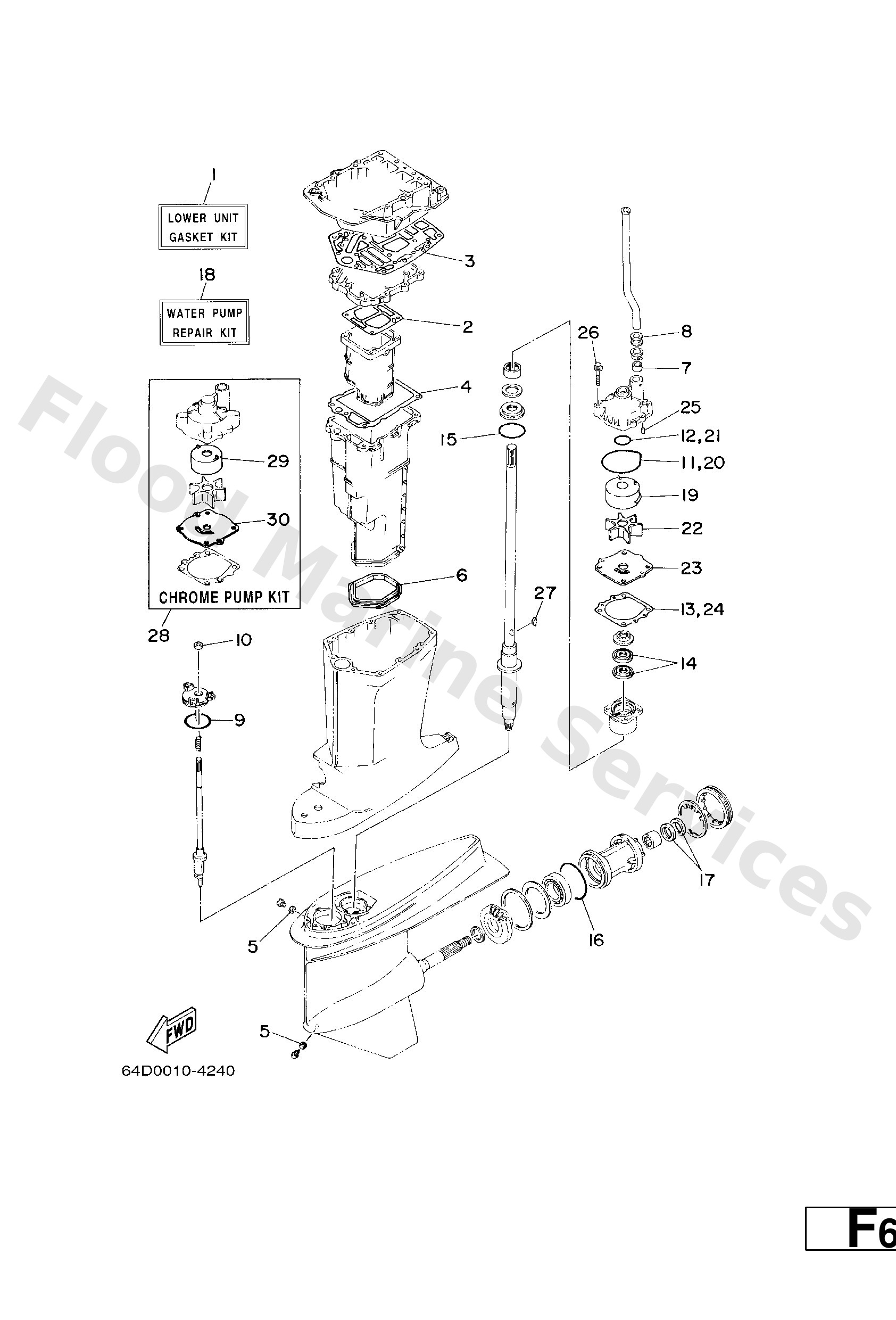

Diagram: REPAIR KIT 2
Parts List
Reference
Description
Price
1
6G5--W0001--C1
Lower unit gasket kit
Loading…
↗
2
6G5--41134--A0
Gasket, exhaust manifold
Loading…
↗
3
6G5--45114--A0
Gasket, upper casing
Loading…
↗
4
6E5--41135--A0
Gasket, exhaust manifold
Loading…
↗
5
90430--08020
Gasket
Loading…
↗
6
6E5--45123--00
Gasket, muffler
Loading…
↗
7
6E5--44365--00
Damper, water seal 1
Loading…
↗
8
6E5--44366--00
Damper, water seal 2
Loading…
↗
9
93210--58144
O-ring(47x)
Loading…
↗
10
93106--09014
Oil seal
Loading…
↗
11
93210--86M38
O-ring (6e5)
Loading…
↗
12
93210--37160
O-ring (6g8)
Loading…
↗
13
6E5--44315--A0
Gasket,water pump
Loading…
↗
14
93101--28M16
Oil seal (6e5)
Loading…
↗
15
93210--55M14
O-ring (70e)
Loading…
↗
16
93210--97M55
O-ring (6g5)
Loading…
↗
17
93101--30M17
Oil seal (6e5)
Loading…
↗
18
61A--W0078--A3
Water pump repair kit
Loading…
↗
19
61A--44322--02
Insert, cartridge
Loading…
↗
22
6E5--44352--01
Impeller
Loading…
↗
23
6G5--44323--00
Outer plate, cartridge
Loading…
↗
25
93606--12019
Pin, dowel (614)
Loading…
↗
26
90119--08M14
Bolt, with washer
Loading…
↗
27
90280--04M05
Key, woodruff (6e5)
Loading…
↗
28
61A--W0078--1A
Chrome pump kit
Loading…
↗
29
6R3--44322--41
Insert, cartridge
Loading…
↗
30
6G5--44323--40
Outer plate, cartridge
Loading…
↗
