40JMH (2003)
REPAIR KIT 3

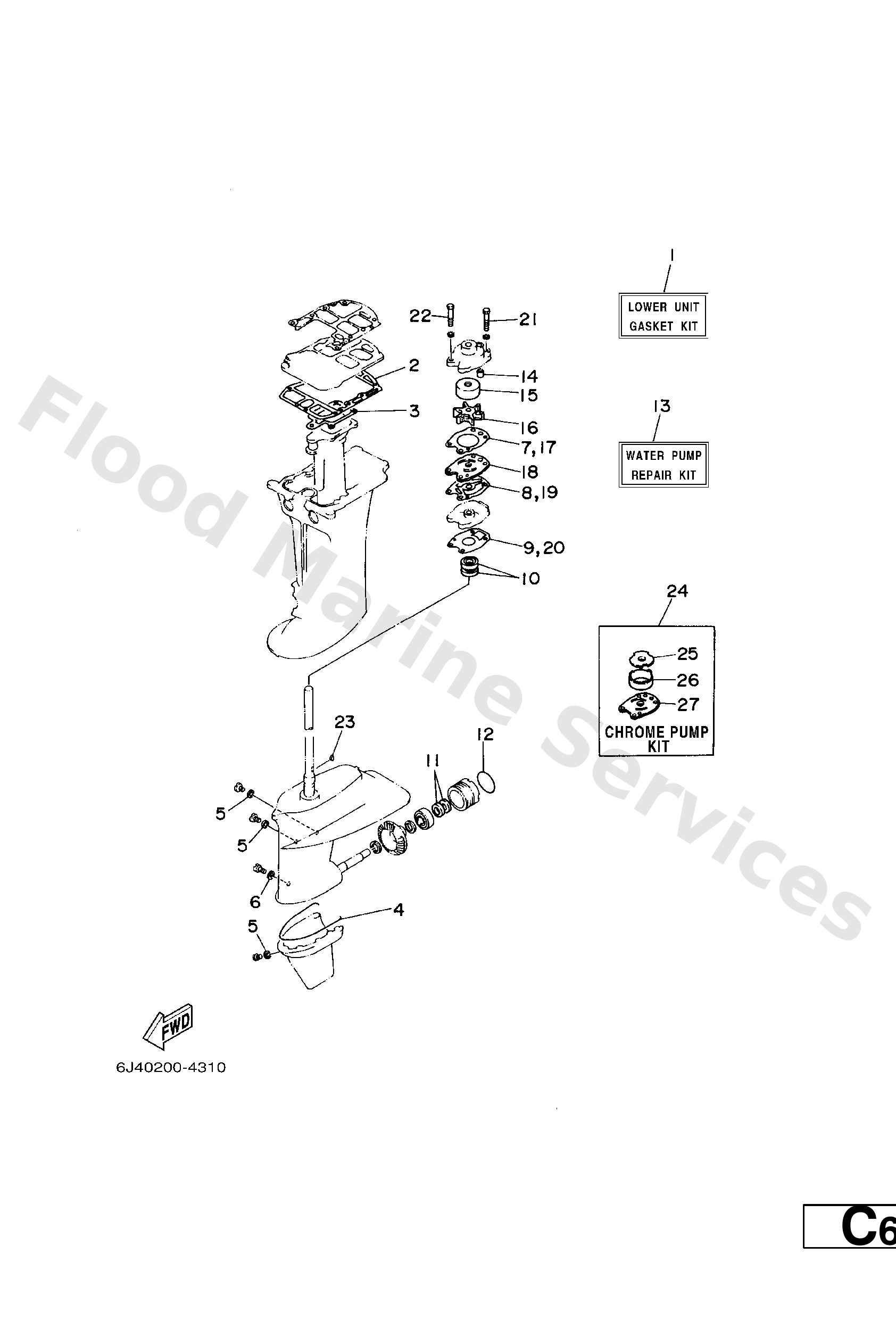

Diagram: REPAIR KIT 3
Parts List
Reference
Description
Price
1
6F5−W0001−C0
(E)40G
Gasket kit, lower unit
Loading…
↗
2
676−45114−A1
Gasket, upper casing
Loading…
↗
3
676−41133−A1
Gasket, exhaust manifold 1
Loading…
↗
4
676−45314−00
Seal, lower casing
Loading…
↗
5
90430−08020
Gasket
Loading…
↗
6
90430−06M03
Gasket (6f5)
Loading…
↗
7
676−44315−A1
Gasket, water pump
Loading…
↗
8
676−44324−A1
Gasket, cartridge
Loading…
↗
9
676−44316−A1
Gasket, water pump
Loading…
↗
10
93101−22M00
Oil seal (22x36x6-663)
Loading…
↗
11
93101−20048
Oil seal (20x30x6-648)
Loading…
↗
12
93210−57M00
O-ring (676)
Loading…
↗
13
6F5−W0078−A0
(E)40G
Water pump repair kit
Loading…
↗
14
663−44366−00
Damper, water seal 2
Loading…
↗
15
676−44322−00
Insert, cartridge
Loading…
↗
16
6F5−44352−00
Impeller
Loading…
↗
18
676−44323−00
Outer plate, cartridge
Loading…
↗
20
679−44316−A1
21 −
Loading…
↗
21
97095−08055
Bolt, hexagon
Loading…
↗
22
97095−08045
Bolt, hexagon
Loading…
↗
23
90280−04M00
Key, woodruff (676)
Loading…
↗
24
676−W0078−0A
(E)40G
Water pump repair kit (cr)
Loading…
↗
25
676−44321−40
Inner plate, cartridge
Loading…
↗
26
676−44322−40
Insert, cartridge
Loading…
↗
27
676−44323−40
Outer plate, cartridge
Loading…
↗
