F100AET (2005)
REPAIR KIT 3

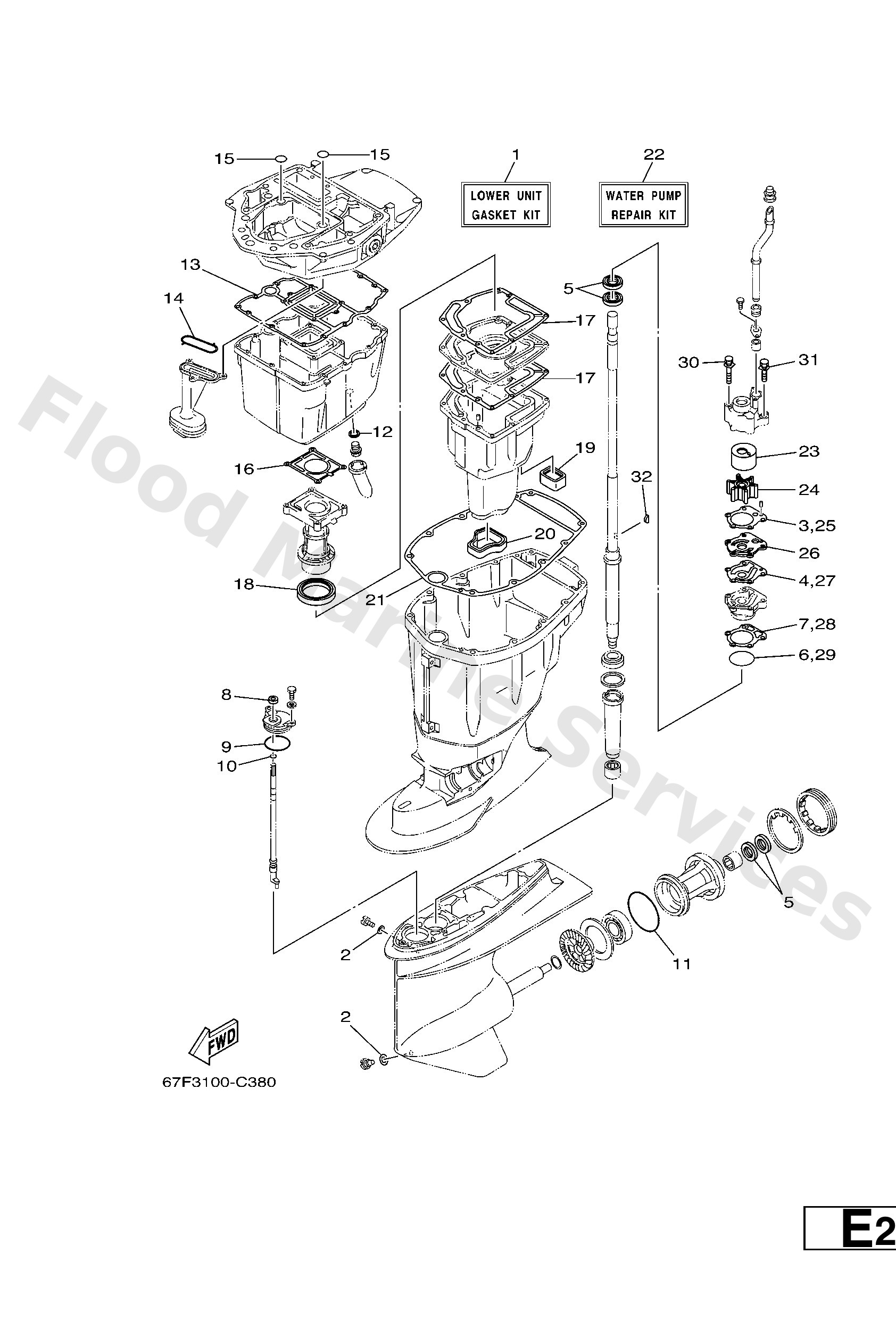

Diagram: REPAIR KIT 3
Parts List
Reference
Description
Price
1
67FW000121
Lower unit gasket kit
Loading…
↗
2
9043008020
Gasket
Loading…
↗
3
68844315A0
Gasket,water pump 1
Loading…
↗
4
68844324A0
Gasket,cartridge 0uter plate
Loading…
↗
5
9310125M03
Oil seal
Loading…
↗
6
9321046044
O-ring
Loading…
↗
7
68844316A0
Gasket,water pump 2
Loading…
↗
8
9310609014
Oil seal
Loading…
↗
9
9321049046
O-ring (620)
Loading…
↗
10
9321007003
O-ring (11m)
Loading…
↗
11
9321086M39
O-ring (6e5)
Loading…
↗
12
9043014M09
Gasket
Loading…
↗
13
68V1531200
Gasket, oil pan
Loading…
↗
14
67F1341500
Seal, oil strainer
Loading…
↗
15
9321019MJ1
O-ring
Loading…
↗
16
67F41133A1
Gasket, exhaust manifold 1
Loading…
↗
17
67F41134A0
Gasket, exhaust manifold
Loading…
↗
18
67F4113800
Seal, ext. 1
Loading…
↗
19
67F4512700
Seal
Loading…
↗
20
67F4512300
Gasket, muffler
Loading…
↗
21
67F4511300
Gasket, upper casing
Loading…
↗
22
67FW007800
Water pump repair kit
Loading…
↗
23
67F4432200
Insert, cartridge
Loading…
↗
24
67F4435200
Impeller
Loading…
↗
26
67F4432300
Outer plate, cartridge
Loading…
↗
30
9011908M87
Bolt, with washer
Loading…
↗
31
9011908M13
Bolt, with washer(6h0)
Loading…
↗
32
9028004M04
Key, woodruff (688)
Loading…
↗
