F15CEP (2013)
REPAIR KIT 3

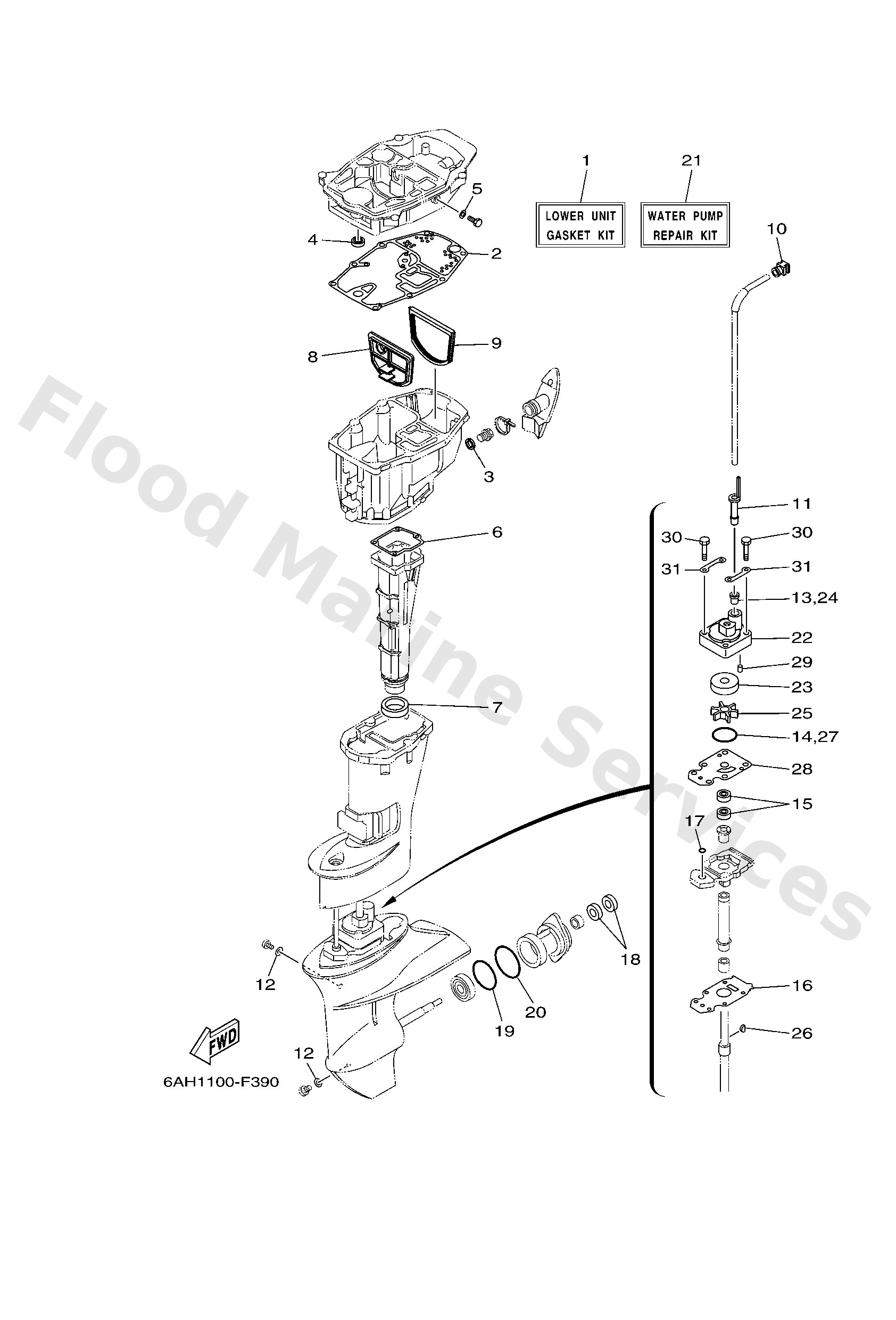

Diagram: REPAIR KIT 3
Parts List
Reference
Description
Price
1
6AHW000120
Lower unit gasket kit
Loading…
↗
2
6AH1531200
Gasket, oil pan
Loading…
↗
3
9043014M09
Gasket
Loading…
↗
4
9310112M63
Oil seal
Loading…
↗
5
9043008143
Gasket (256-11198-00)
Loading…
↗
6
6AH4113400
Gasket, exhaust manifold
Loading…
↗
7
6AH4113800
Seal, ext. 1
Loading…
↗
8
6AH4512600
Plate, seal damper
Loading…
↗
9
6AH4511500
Gasket, upper casing
Loading…
↗
10
6AH4436500
Damper, water seal 1
Loading…
↗
11
6AH4436800
Rubber, water seal 4
Loading…
↗
12
9043008020
Gasket
Loading…
↗
13
6L24436700
Damper, water seal 3
Loading…
↗
14
9321049046
O-ring (620)
Loading…
↗
15
9310120001
Oil seal
Loading…
↗
16
69G45315A0
Packing, lower casing
Loading…
↗
17
9321006ME6
O-ring
Loading…
↗
18
9310117054
Oil seal (17x30x6-650)
Loading…
↗
19
9321057M09
O-ring (683)
Loading…
↗
20
9321056M80
O-ring(6j8)
Loading…
↗
21
6AHW007800
Water pump repair kit
Loading…
↗
22
6AH4431100
Housing, water pump
Loading…
↗
23
63V4432200
Insert, cartridge
Loading…
↗
25
63V4435201
Impeller
Loading…
↗
26
6644433800
Key, woodruff
Loading…
↗
28
68T4432300
Outer plate, cartridge
Loading…
↗
29
9360412M07
Pin, dowel (688)
Loading…
↗
30
9709508045
Bolt, hexagon
Loading…
↗
31
63V4432801
Plate
Loading…
↗
