F2.5AMH (2010)
REPAIR KIT 3

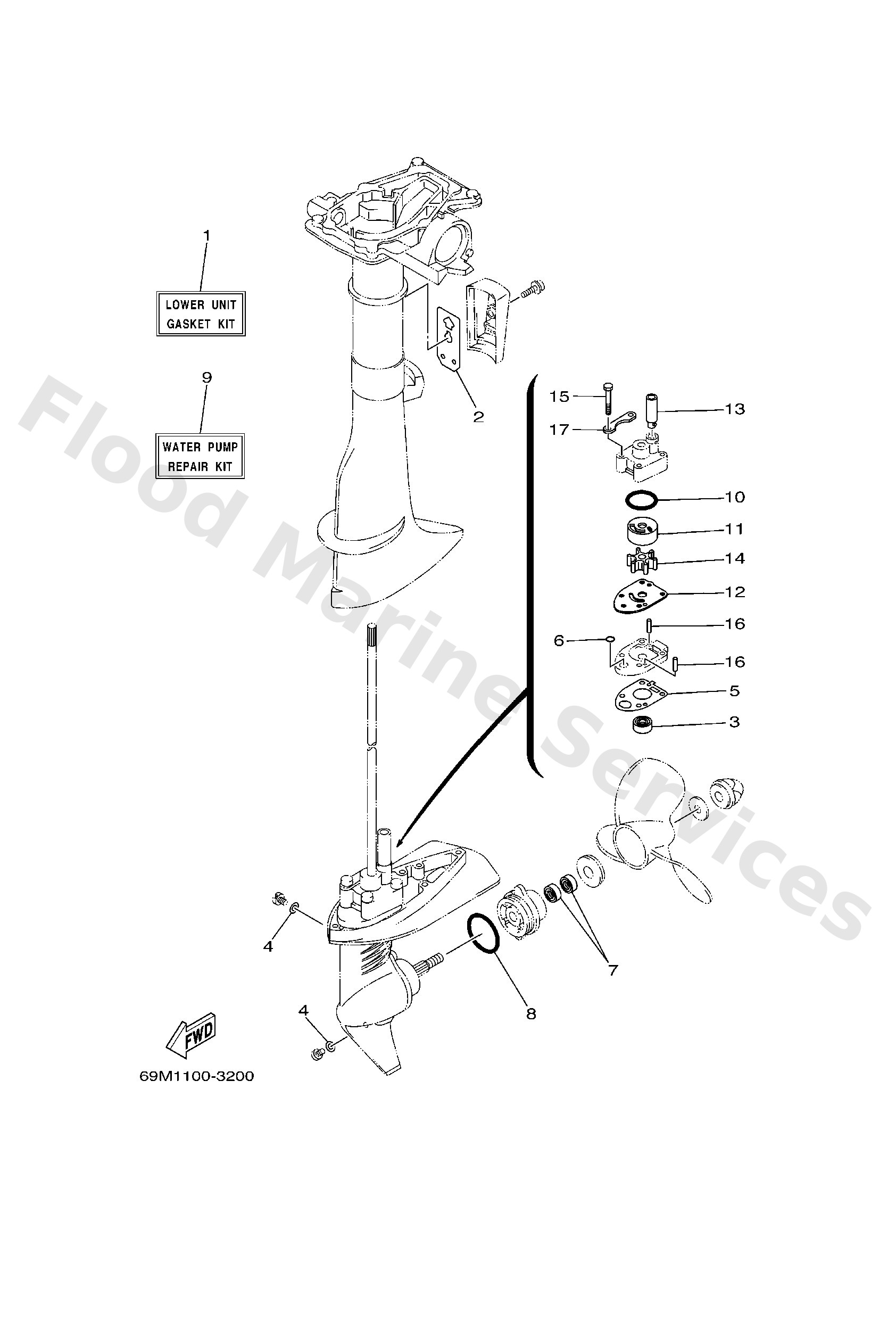

Diagram: REPAIR KIT 3
Parts List
Reference
Description
Price
1
69MWG00120
Lower Unit Gasket Kit
Loading…
↗
2
69MG511500
Gasket,upper casing
Loading…
↗
3
9310309M41
Oil seal
Loading…
↗
4
9043008020
Gasket
Loading…
↗
5
69MG5315A0
Packing,lower casing
Loading…
↗
6
9321005001
O-ring
Loading…
↗
7
9310113M12
Oil seal
Loading…
↗
8
9321048214
O-ring
Loading…
↗
9
69MWG07800
Water Pump Repair Kit
Loading…
↗
10
9321033M85
O-ring(6l5)
Loading…
↗
11
6L54432200
Insert, cartridge
Loading…
↗
12
69MG432300
Outer plate,cartridge
Loading…
↗
13
6E04436600
Damper, water seal 2
Loading…
↗
14
6L54435200
Impeller
Loading…
↗
15
9709506040
Bolt (682)
Loading…
↗
16
9360418080
Pin. dowel. (647)
Loading…
↗
17
69MG432800
Plate
Loading…
↗
