F2.5BMH (2020)
REPAIR KIT 3

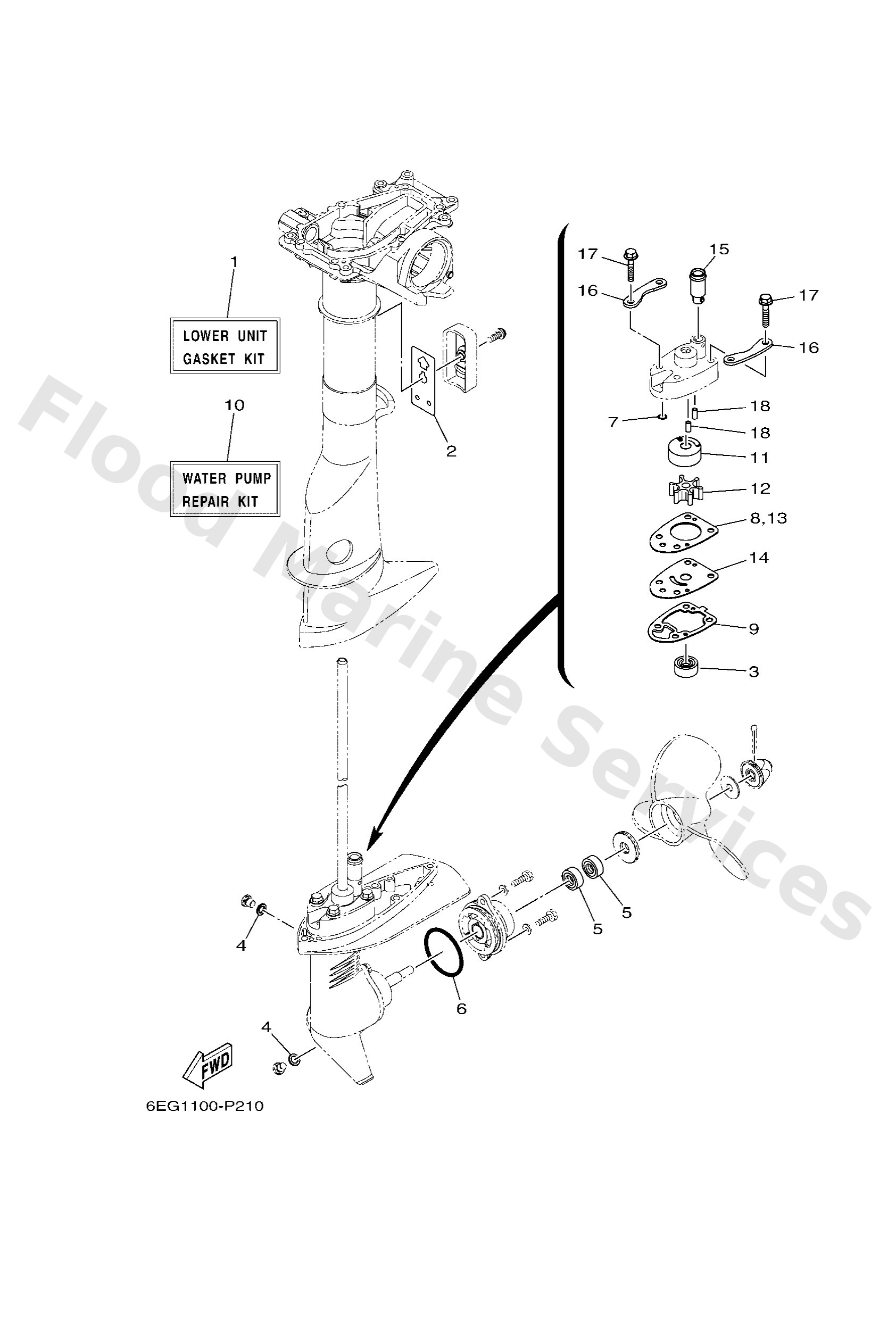

Diagram: REPAIR KIT 3
Parts List
Reference
Description
Price
1
6EGW000120
Lower unit gasket kit
Loading…
↗
2
6EGG511500
Gasket, upper casi
Loading…
↗
3
9310309800
Oil seal
Loading…
↗
4
9043008003
Gasket
Loading…
↗
5
9310113800
Oil seal
Loading…
↗
6
9321048800
O-ring
Loading…
↗
7
9321005001
O-ring
Loading…
↗
8
6EGG431500
Gasket, water pump
Loading…
↗
9
6EGG531500
Packing, lower cas
Loading…
↗
10
6EGW007801
Water pump repair kit
Loading…
↗
11
6EGG432200
Insert, cartridge
Loading…
↗
12
6L54435200
Impeller
Loading…
↗
14
6EGG432300
Outer plate, cartr
Loading…
↗
15
6EEG436600
Damper, water seal 2
Loading…
↗
16
6EGG432800
Plate
Loading…
↗
17
97E9506535
Bolt, hexagon w/w deep recess
Loading…
↗
18
9360412M07
Pin, dowel (688)
Loading…
↗
