F25AMH (2003)
REPAIR KIT 3

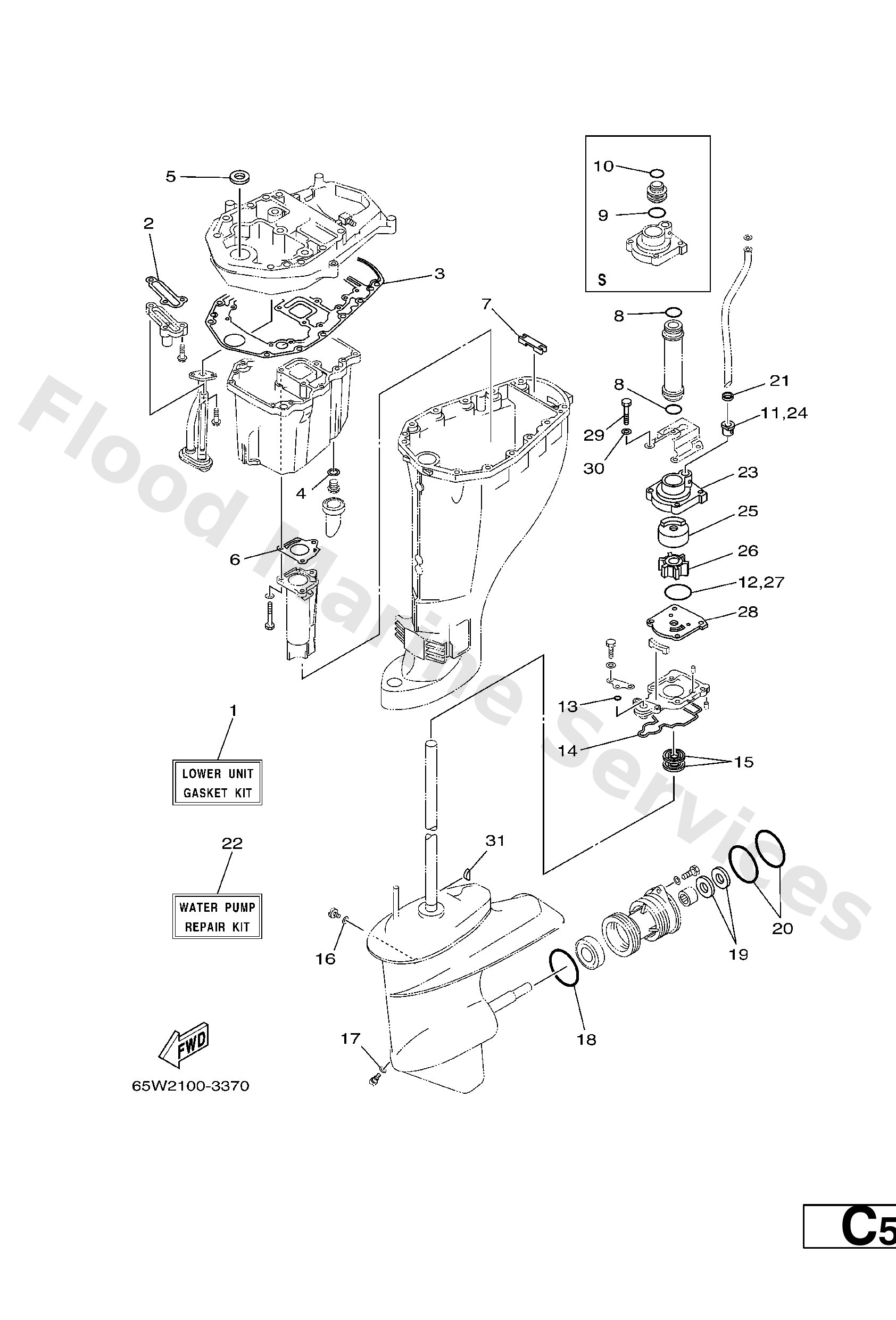

Diagram: REPAIR KIT 3
Parts List
Reference
Description
Price
1
65W−W0001−23
Lower unit gasket kit
Loading…
↗
2
62Y−13475−00
Gasket
Loading…
↗
3
69W−15312−00
Gasket, oil pan
Loading…
↗
4
90430−14M09
Gasket
Loading…
↗
5
93110−16004
Oil seal
Loading…
↗
6
67C−41133−00
Gasket, exhaust manifold 1
Loading…
↗
7
65W−45128−00
Seal 2
Loading…
↗
8
93210−26130
L
O-ring
Loading…
↗
10
93210−22164
S
O-ring
Loading…
↗
11
6L2−44367−00
Damper, water seal 3
Loading…
↗
12
93210−45161
O-ring
Loading…
↗
13
93210−06ME6
O-ring
Loading…
↗
14
61N−45315−00
Packing, lower casing
Loading…
↗
15
93101−22067
Oil seal (22x36x6-663)
Loading…
↗
16
90430−08020
Gasket
Loading…
↗
18
93210−64ME7
O-ring
Loading…
↗
19
93101−20M07
Oil seal
Loading…
↗
20
93210−65M50
O-ring
Loading…
↗
21
90430−10002
Gasket
Loading…
↗
22
61N−W0078−11
Water pump repair kit
Loading…
↗
23
61N−44311−01
Housing, water pump
Loading…
↗
25
61N−44322−01
Insert, cartridge
Loading…
↗
26
6H4−44352−02
Impeller
Loading…
↗
28
61N−44323−00
Outer plate, cartridge
Loading…
↗
29
97095−06040
Bolt (682)
Loading…
↗
30
92995−06600
Washer, plain (646)
Loading…
↗
31
90280−03024
Key, woodruff(662)
Loading…
↗
