F25DE (2018)
REPAIR KIT 3

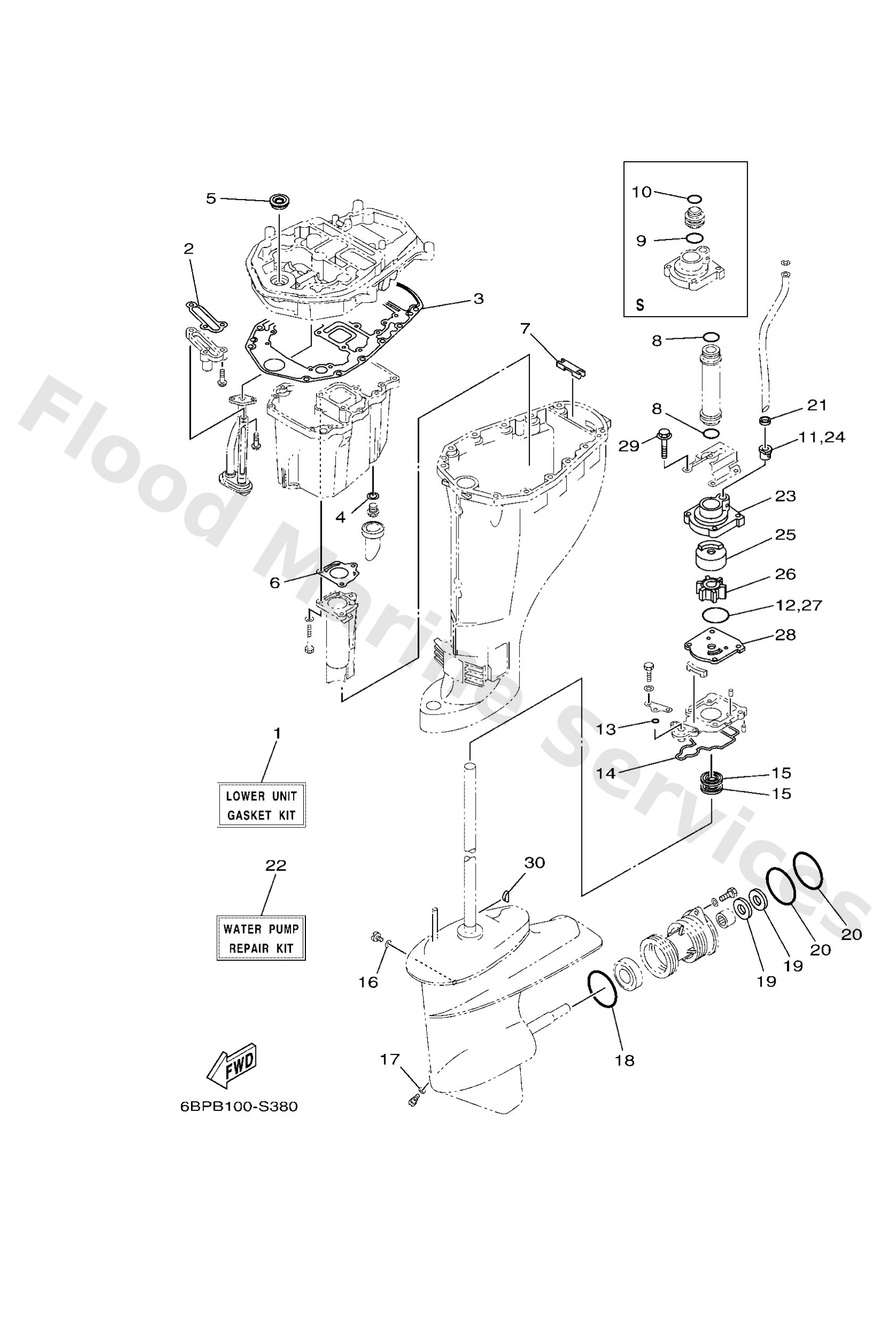

Diagram: REPAIR KIT 3
Parts List
Reference
Description
Price
1
65WW000124
Lower unit gasket kit
Loading…
↗
2
62Y1347500
Gasket
Loading…
↗
3
69W1531200
Gasket, oil pan
Loading…
↗
4
9043014M09
Gasket
Loading…
↗
5
9310316011
Oil seal
Loading…
↗
6
67C4113300
Gasket, exhaust manifold 1
Loading…
↗
7
65W4512800
Seal 2
Loading…
↗
8
9321026130
L(21.7")
O-ring
Loading…
↗
10
9321022164
S(16.7")
O-ring
Loading…
↗
11
6L24436700
Damper, water seal 3
Loading…
↗
12
9321045161
O-ring
Loading…
↗
13
9321006ME6
O-ring
Loading…
↗
14
61N4531500
Packing, lower casing
Loading…
↗
15
9310122067
Oil seal (22x36x6-663)
Loading…
↗
16
9043008003
Gasket
Loading…
↗
18
9321064ME7
O-ring
Loading…
↗
19
9310120M07
Oil seal
Loading…
↗
20
9321065M50
O-ring
Loading…
↗
21
9043010002
Gasket
Loading…
↗
22
61NW007811
Water pump repair kit
Loading…
↗
23
61N4431101
Housing, water pump
Loading…
↗
25
61N4432201
Insert, cartridge
Loading…
↗
26
6H44435202
Impeller
Loading…
↗
28
61N4432300
Outer plate, cartridge
Loading…
↗
29
9759506540
Bolt, hexagon w/w deep recess
Loading…
↗
30
9028003024
Key, woodruff(662)
Loading…
↗
