F40CET (2002)
REPAIR KIT 3

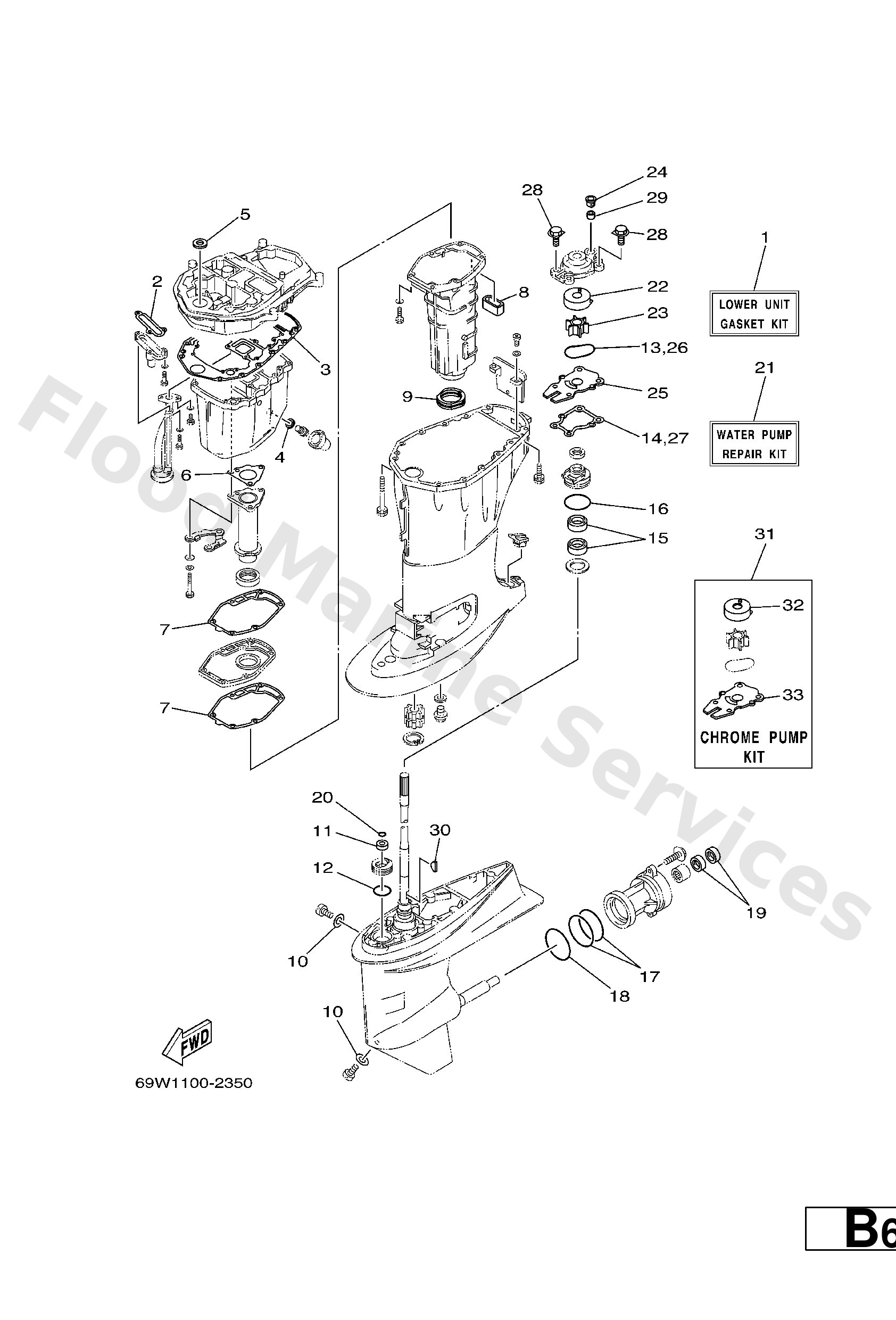

Diagram: REPAIR KIT 3
Parts List
Reference
Description
Price
1
69W−W0001−20
Lower unit gasket kit
Loading…
↗
2
62Y−13475−00
Gasket
Loading…
↗
3
69W−15312−00
Gasket, oil pan
Loading…
↗
4
90430−14M09
Gasket
Loading…
↗
5
93103−18011
Oil seal
Loading…
↗
6
64J−41133−10
Gasket, exhaust manifold 1
Loading…
↗
7
62Y−41134−01
Gasket, exhaust manifold
Loading…
↗
8
62Y−45127−00
Seal
Loading…
↗
9
67C−45123−00
Gasket, muffler
Loading…
↗
10
90430−08020
Gasket
Loading…
↗
11
93106−09014
Oil seal
Loading…
↗
12
93210−33MG4
O-ring
Loading…
↗
13
93210−59MG7
O-ring
Loading…
↗
14
63D−44316−00
Gasket, water pump
Loading…
↗
15
93101−25M57
Oil seal
Loading…
↗
16
93210−48MG8
O-ring
Loading…
↗
17
93210−74MG5
O-ring (xea)
Loading…
↗
18
93210−69MG6
O-ring
Loading…
↗
19
93101−22M00
Oil seal (22x36x6-663)
Loading…
↗
20
93210−07003
O-ring (11m)
Loading…
↗
21
63D−W0078−01
Water pump repair kit
Loading…
↗
22
63D−44322−00
Insert, cartridge
Loading…
↗
23
6H3−44352−00
Impellar
Loading…
↗
24
63D−44312−00
Cover, water pump housing
Loading…
↗
25
63D−44323−00
Outer plate, cartridge
Loading…
↗
28
90119−08M15
Bolt, with washer(62w)
Loading…
↗
29
663−44366−00
Damper, water seal 2
Loading…
↗
30
90280−03024
Key, woodruff(662)
Loading…
↗
31
63D−W0078−0A
Chrome pump kit
Loading…
↗
32
63D−44322−40
Insert, cartridge
Loading…
↗
33
63D−44323−40
Outer plate, cartridge
Loading…
↗
