F40CET (2004)
REPAIR KIT 3

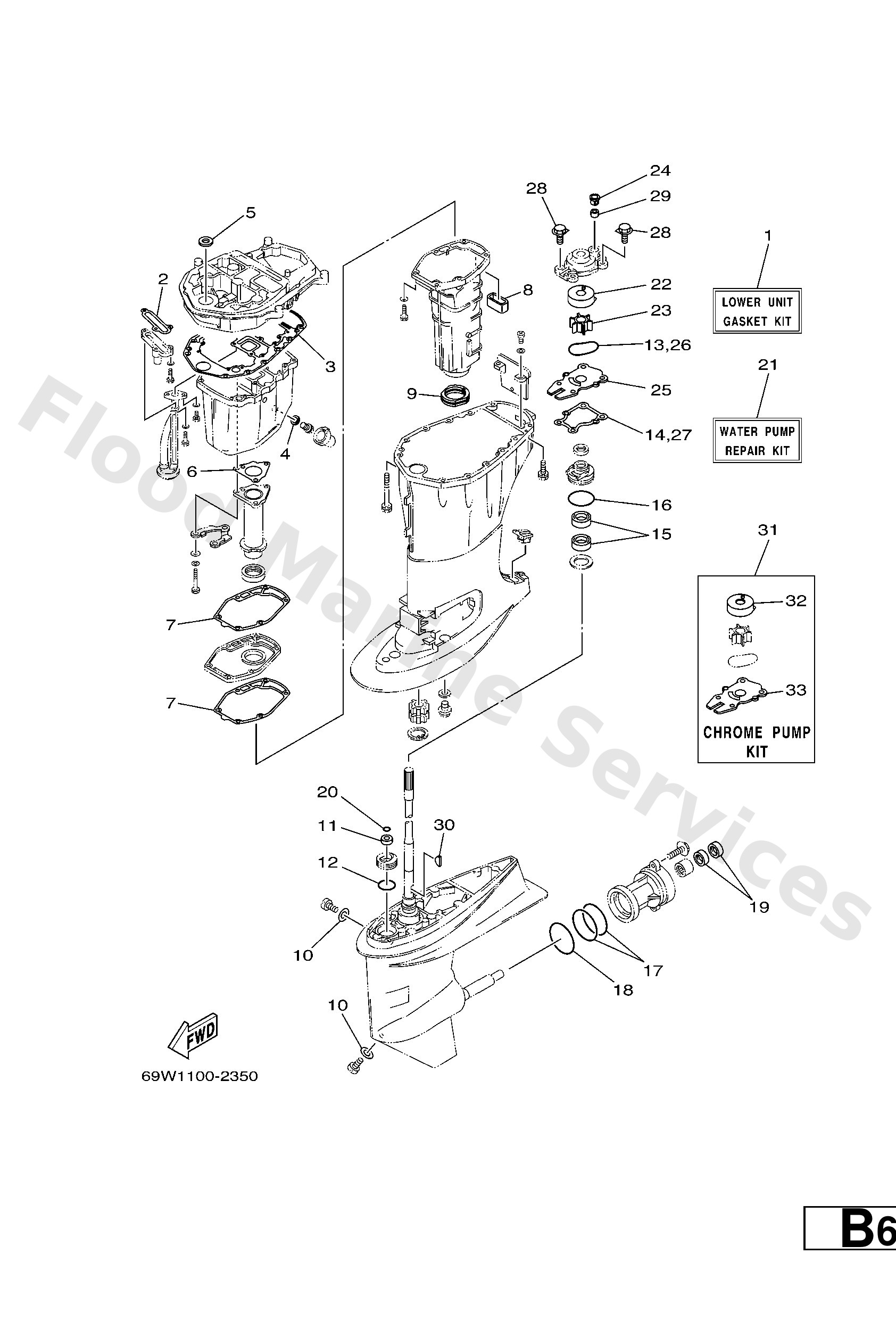

Diagram: REPAIR KIT 3
Parts List
Reference
Description
Price
1
69WW000120
Lower unit gasket kit
Loading…
↗
2
62Y1347500
Gasket
Loading…
↗
3
69W1531200
Gasket, oil pan
Loading…
↗
4
9043014M09
Gasket
Loading…
↗
5
9310318011
Oil seal
Loading…
↗
6
64J4113310
Gasket, exhaust manifold 1
Loading…
↗
7
62Y4113401
Gasket, exhaust manifold
Loading…
↗
8
62Y4512700
Seal
Loading…
↗
9
67C4512300
Gasket, muffler
Loading…
↗
10
9043008020
Gasket
Loading…
↗
11
9310609014
Oil seal
Loading…
↗
12
9321033MG4
O-ring
Loading…
↗
13
9321059MG7
O-ring
Loading…
↗
14
63D4431600
Gasket, water pump
Loading…
↗
15
9310125M57
Oil seal
Loading…
↗
16
9321048MG8
O-ring
Loading…
↗
17
9321074MG5
O-ring (xea)
Loading…
↗
18
9321069MG6
O-ring
Loading…
↗
19
9310122M00
Oil seal (22x36x6-663)
Loading…
↗
20
9321007003
O-ring (11m)
Loading…
↗
21
63DW007801
Water pump repair kit
Loading…
↗
22
63D4432200
Insert, cartridge
Loading…
↗
23
6H34435200
Impellar
Loading…
↗
24
63D4431200
Cover, water pump housing
Loading…
↗
25
63D4432300
Outer plate, cartridge
Loading…
↗
28
9011908M15
Bolt, with washer(62w)
Loading…
↗
29
6634436600
Damper, water seal 2
Loading…
↗
30
9028003024
Key, woodruff(662)
Loading…
↗
31
63DW00780A
Chrome pump kit
Loading…
↗
32
63D4432240
Insert, cartridge
Loading…
↗
33
63D4432340
Outer plate, cartridge
Loading…
↗
