F40JMHD (2025)
REPAIR KIT 3

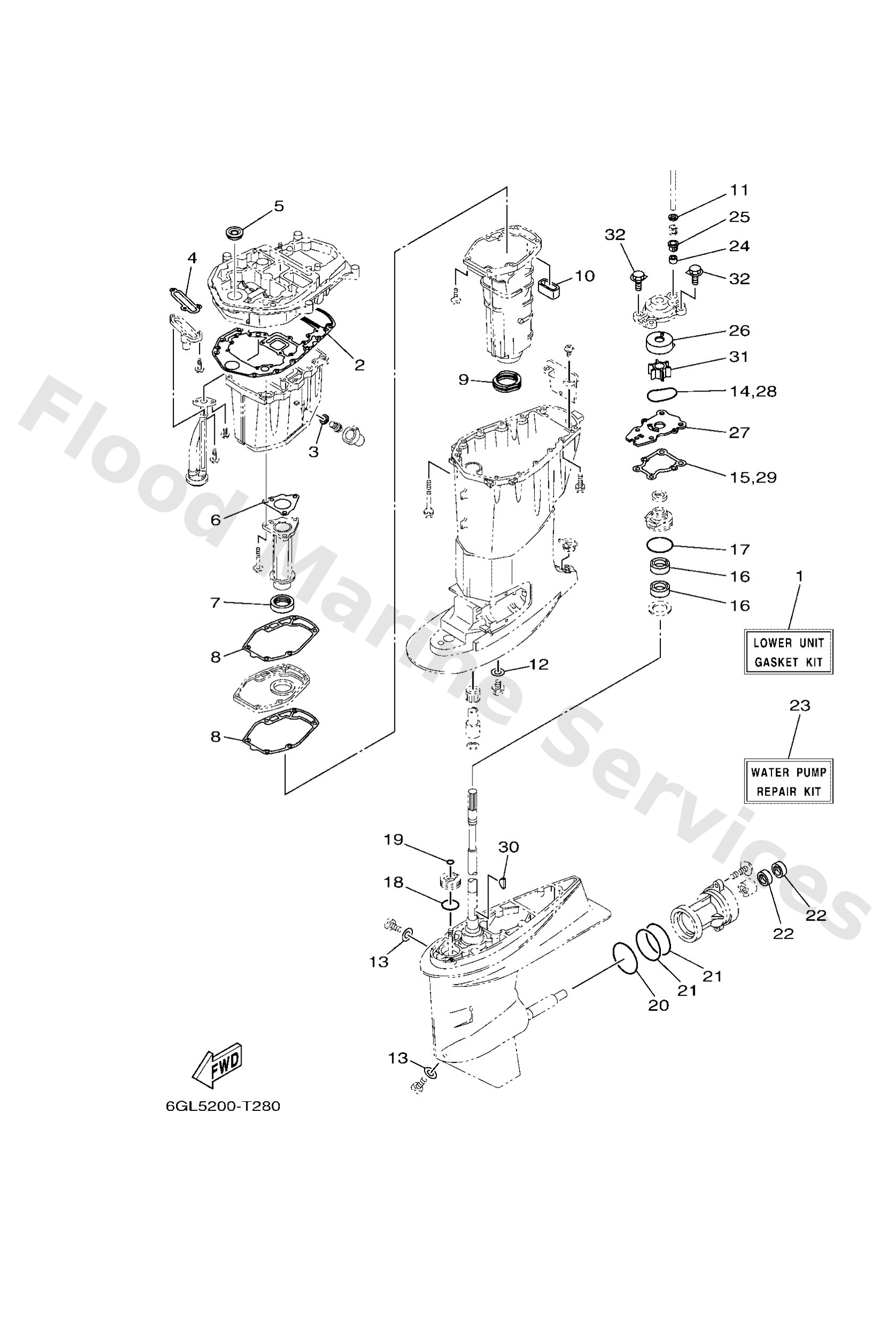

Diagram: REPAIR KIT 3
Parts List
Reference
Description
Price
1
6GLW000121
Lower Unit Gasket Kit
Loading…
↗
2
69W1531201
Gasket, oil pan
Loading…
↗
3
9043014M09
Gasket
Loading…
↗
4
62Y1347500
Gasket
Loading…
↗
5
9310316011
Oil seal
Loading…
↗
6
64J4113310
Gasket, exhaust manifold 1
Loading…
↗
7
64J4613210
Gasket 1
Loading…
↗
8
6BG4113400
Gasket, exhaust manifold
Loading…
↗
9
67C4512300
Gasket, muffler
Loading…
↗
10
62Y4512701
Seal
Loading…
↗
11
9043012072
Gasket
Loading…
↗
13
9043008003
Gasket
Loading…
↗
14
9321059MG7
O-ring
Loading…
↗
15
63D4431600
Gasket, water pump
Loading…
↗
16
9310122M60
Oil seal
Loading…
↗
17
9321048001
O-ring
Loading…
↗
18
9321033MG4
O-ring
Loading…
↗
19
9321006ME6
O-ring
Loading…
↗
20
9321069MG6
O-ring
Loading…
↗
21
9321074MG5
O-ring (xea)
Loading…
↗
22
9310122M00
Oil seal (22x36x6-663)
Loading…
↗
23
6GLW007802
Water Pump Repair Kit
Loading…
↗
24
6634436601
Damper, water seal 2
Loading…
↗
25
63D4431200
Cover, water pump housing
Loading…
↗
26
63D4432240
Insert, cartridge
Loading…
↗
27
66T4432340
Outer plate, cartridge
Loading…
↗
30
9028003M03
Key, woodruff (697)
Loading…
↗
31
6H44435202
Impeller
Loading…
↗
32
9011908185
Bolt, with washer
Loading…
↗
