FT25BED (2002)
REPAIR KIT 3

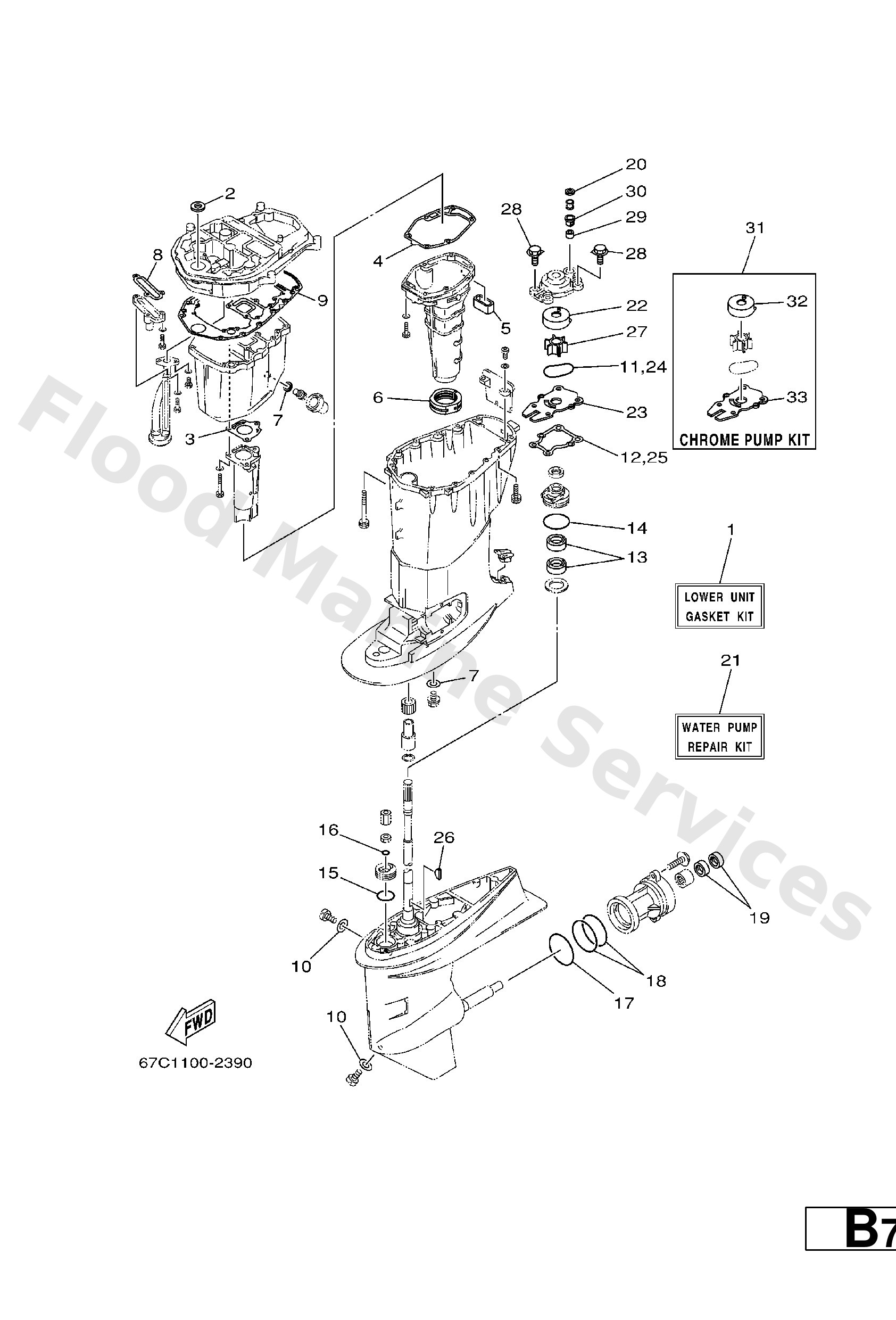

Diagram: REPAIR KIT 3
Parts List
Reference
Description
Price
1
67CW000121
36 – 1
Loading…
↗
2
93104--16M01
Oil seal(6a8)
Loading…
↗
3
67C--41133--00
Gasket, exhaust manifold 1
Loading…
↗
4
62Y4113401
Gasket, exhaust manifold
Loading…
↗
5
62Y--45127--00
Seal
Loading…
↗
6
67C--45123--00
Gasket, muffler
Loading…
↗
7
90430--14M09
Gasket
Loading…
↗
8
62Y--13475--00
Gasket
Loading…
↗
9
69W--15312--00
Gasket, oil pan
Loading…
↗
10
90430--08020
Gasket
Loading…
↗
11
93210--59MG7
O-ring
Loading…
↗
12
63D--44316--00
Gasket, water pump
Loading…
↗
13
93101--22M60
Oil seal
Loading…
↗
14
93210--48MG8
O-ring
Loading…
↗
15
93210--33MG4
O-ring
Loading…
↗
16
93210--06ME6
O-ring
Loading…
↗
17
93210--69MG6
O-ring
Loading…
↗
18
93210--74MG5
O-ring (xea)
Loading…
↗
19
93101--22M00
Oil seal (22x36x6-663)
Loading…
↗
20
90430--12072
Gasket
Loading…
↗
21
66T--W0078--00
Water pump repair kit
Loading…
↗
22
63D--44322--00
Insert, cartridge
Loading…
↗
23
66T--44323--00
Outer plate, cartridge
Loading…
↗
26
90280--03M03
Key, woodruff (697)
Loading…
↗
27
6H4--44352--02
Impeller
Loading…
↗
28
90119--08M15
Bolt, with washer(62w)
Loading…
↗
29
663--44366--00
Damper, water seal 2
Loading…
↗
30
63D--44312--00
Cover, water pump housing
Loading…
↗
31
66T--W0078--0A
Chrome pump kit
Loading…
↗
32
63D--44322--40
Insert, cartridge
Loading…
↗
33
66T--44323--40
Outer plate, cartridge
Loading…
↗
