Yamaha Outboard Parts - REPAIR KIT 3 - FT25FET (2013) | Flood Marine

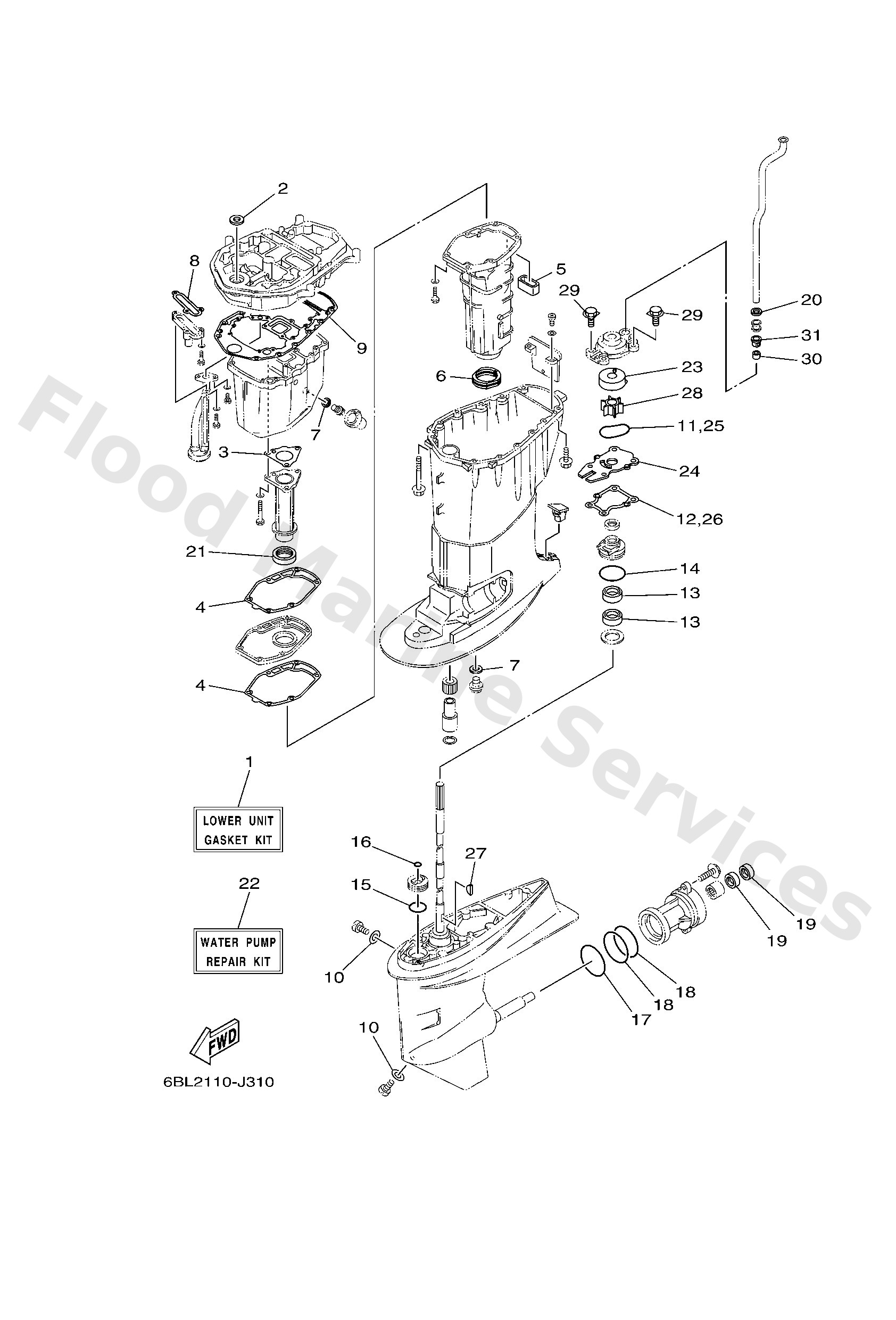

Diagram: REPAIR KIT 3

Diagram

Parts List

Reference
Description
Price


1
6BLW000121
Lower unit gasket kit
Loading…

↗
2
9311016004
Oil seal
Loading…

↗
3
64J4113310
Gasket, exhaust manifold 1
Loading…

↗
4
6BG4113400
Gasket, exhaust manifold
Loading…

↗
5
62Y4512700
Seal
Loading…

↗
6
67C4512300
Gasket, muffler
Loading…

↗
7
9043014M09
Gasket
Loading…

↗
8
62Y1347500
Gasket
Loading…

↗
9
69W1531200
Gasket, oil pan
Loading…

↗
10
9043008020
Gasket
Loading…

↗
11
9321059MG7
O-ring
Loading…

↗
12
63D4431600
Gasket, water pump
Loading…

↗
13
9310122M60
Oil seal
Loading…

↗
14
9321048001
O-ring
Loading…

↗
15
9321033MG4
O-ring
Loading…

↗
16
9321006ME6
O-ring
Loading…

↗
17
9321069MG6
O-ring
Loading…

↗
18
9321074MG5
O-ring (xea)
Loading…

↗
19
9310122M00
Oil seal (22x36x6-663)
Loading…

↗
20
9043012072
Gasket
Loading…

↗
21
64J4613210
Gasket 1
Loading…

↗
22
66TW007800
Water pump repair kit
Loading…

↗
23
63D4432200
Insert, cartridge
Loading…

↗
24
66T4432300
Outer plate, cartridge
Loading…

↗
27
9028003M03
Key, woodruff (697)
Loading…

↗
28
6H44435202
Impeller
Loading…

↗
29
9011908M15
Bolt, with washer(62w)
Loading…

↗
30
6634436600
Damper, water seal 2
Loading…

↗
31
63D4431200
Cover, water pump housing
Loading…

↗
