Yamaha Outboard Parts - REPAIR KIT 3 - FT50CED (2003) | Flood Marine

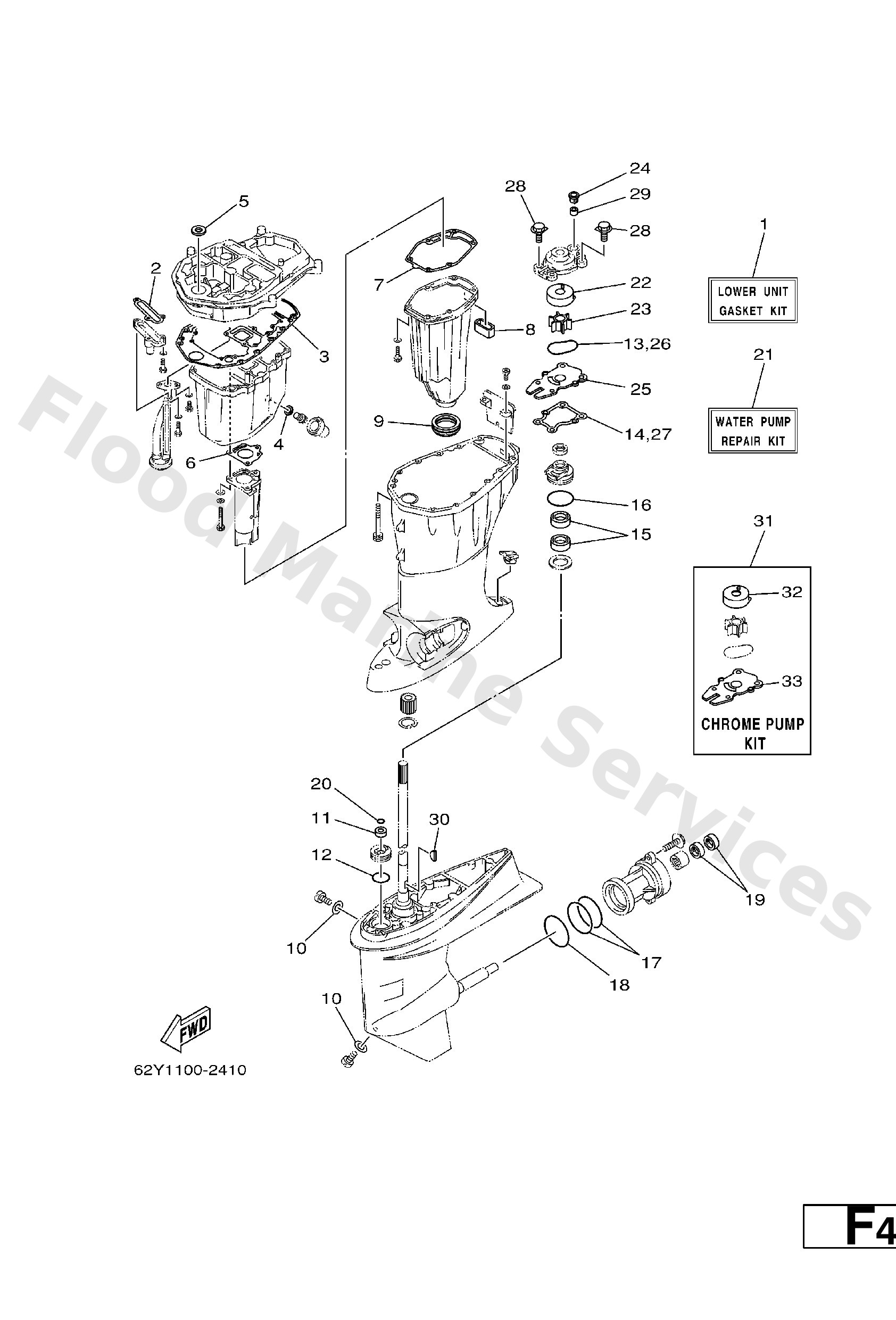

Diagram: REPAIR KIT 3

Diagram

Parts List

Reference
Description
Price


1
62Y−W0001−22 F50A
Lower unit gasket kit
Loading…

↗
2
62Y−13475−00
Gasket
Loading…

↗
3
69W−15312−00
Gasket, oil pan
Loading…

↗
4
90430−14M09
Gasket
Loading…

↗
5
93103−18011
Oil seal
Loading…

↗
6
67C−41133−00
Gasket, exhaust manifold 1
Loading…

↗
7
62Y−41134−01
Gasket, exhaust manifold
Loading…

↗
8
62Y−45127−00
Seal
Loading…

↗
9
663−45123−00
Gasket, muffler
Loading…

↗
10
90430−08020
Gasket
Loading…

↗
11
93106−09014
Oil seal
Loading…

↗
12
93210−33MG4
O-ring
Loading…

↗
13
93210−59MG7
O-ring
Loading…

↗
14
63D−44316−00
Gasket, water pump
Loading…

↗
15
93101−25M57
Oil seal
Loading…

↗
16
93210−48MG8
O-ring
Loading…

↗
17
93210−74MG5
O-ring (xea)
Loading…

↗
18
93210−69MG6
O-ring
Loading…

↗
19
93101−22M00
Oil seal (22x36x6-663)
Loading…

↗
20
93210−07003
O-ring (11m)
Loading…

↗
21
63D−W0078−01 F50A
Water pump repair kit
Loading…

↗
22
63D−44322−00
Insert, cartridge
Loading…

↗
23
6H3−44352−00
Impellar
Loading…

↗
24
63D−44312−00
Cover, water pump housing
Loading…

↗
25
63D−44323−00
Outer plate, cartridge
Loading…

↗
28
90119−08M15
Bolt, with washer(62w)
Loading…

↗
29
663−44366−00
Damper, water seal 2
Loading…

↗
30
90280−03024
Key, woodruff(662)
Loading…

↗
31
63D−W0078−0A F50A
Chrome pump kit
Loading…

↗
32
63D−44322−40
Insert, cartridge
Loading…

↗
33
63D−44323−40
Outer plate, cartridge
Loading…

↗
