Yamaha Outboard Parts - REPAIR KIT 3 - FT8GMH (2018) | Flood Marine

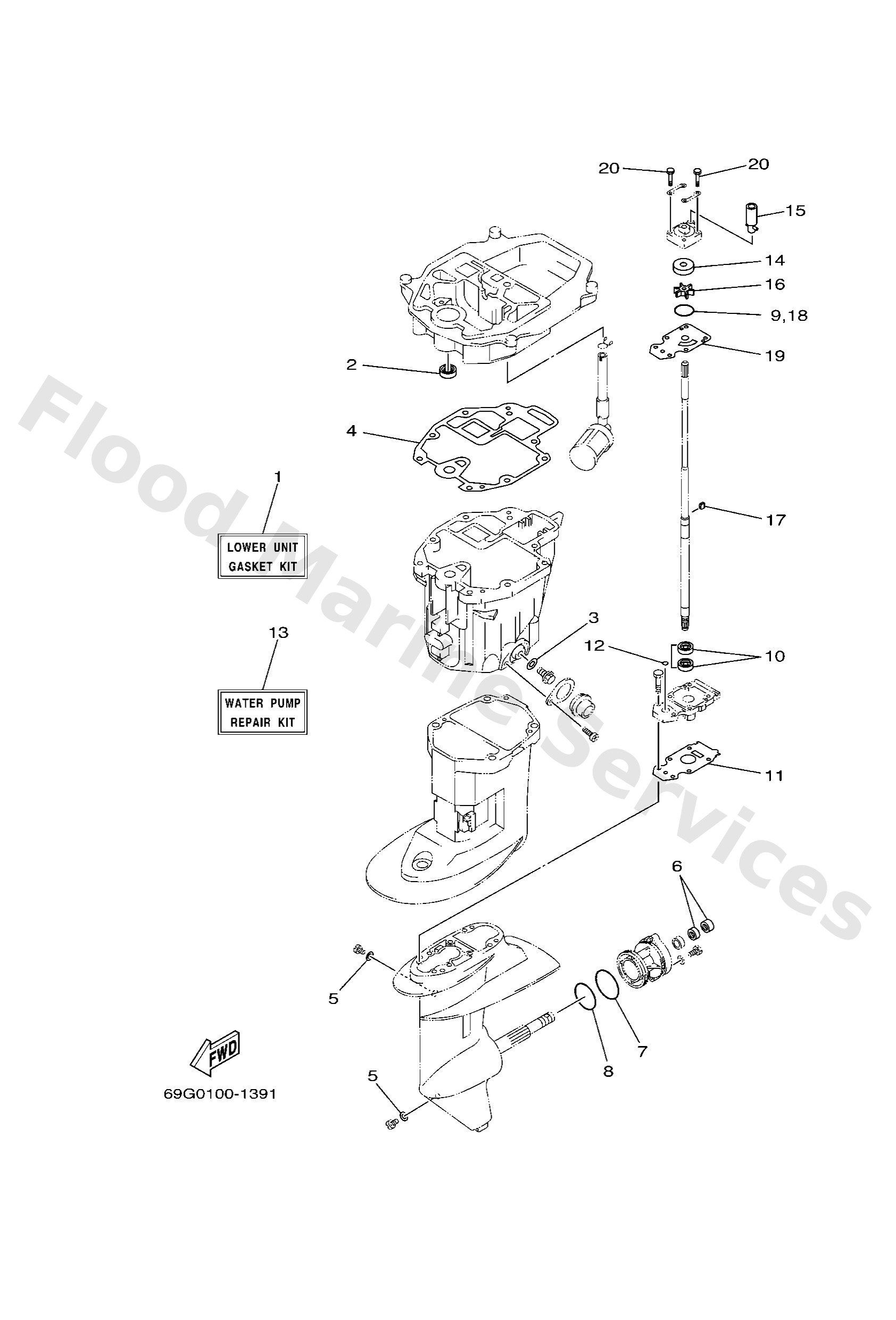

Diagram: REPAIR KIT 3

Diagram

Parts List

Reference
Description
Price


1
69GW000120
Lower unit gasket kit
Loading…

↗
2
9310112M70
Oil seal
Loading…

↗
3
9043010M11
Gasket
Loading…

↗
4
68T1347500
Gasket
Loading…

↗
5
9043008003
Gasket
Loading…

↗
6
9310117054
Oil seal (17x30x6-650)
Loading…

↗
7
9321074316
O-ring (1j7)
Loading…

↗
8
9321074M68
O-ring (6g8)
Loading…

↗
9
9321044398
O-ring(55x)
Loading…

↗
10
9310120048
Oil seal (20x30x6-648)
Loading…

↗
11
69G45315A0
Packing, lower casing
Loading…

↗
12
9321006ME6
O-ring
Loading…

↗
13
69GW007800
Water pump repair kit
Loading…

↗
14
63V4432200
Insert, cartridge
Loading…

↗
15
68T4436600
Damper, water seal 2
Loading…

↗
16
63V4435201
Impeller
Loading…

↗
17
6644433800
Key, woodruff
Loading…

↗
19
68T4432300
Outer plate, cartridge
Loading…

↗
20
9709508045
Bolt, hexagon
Loading…

↗
