FT9.9DMH (2003)
REPAIR KIT 3

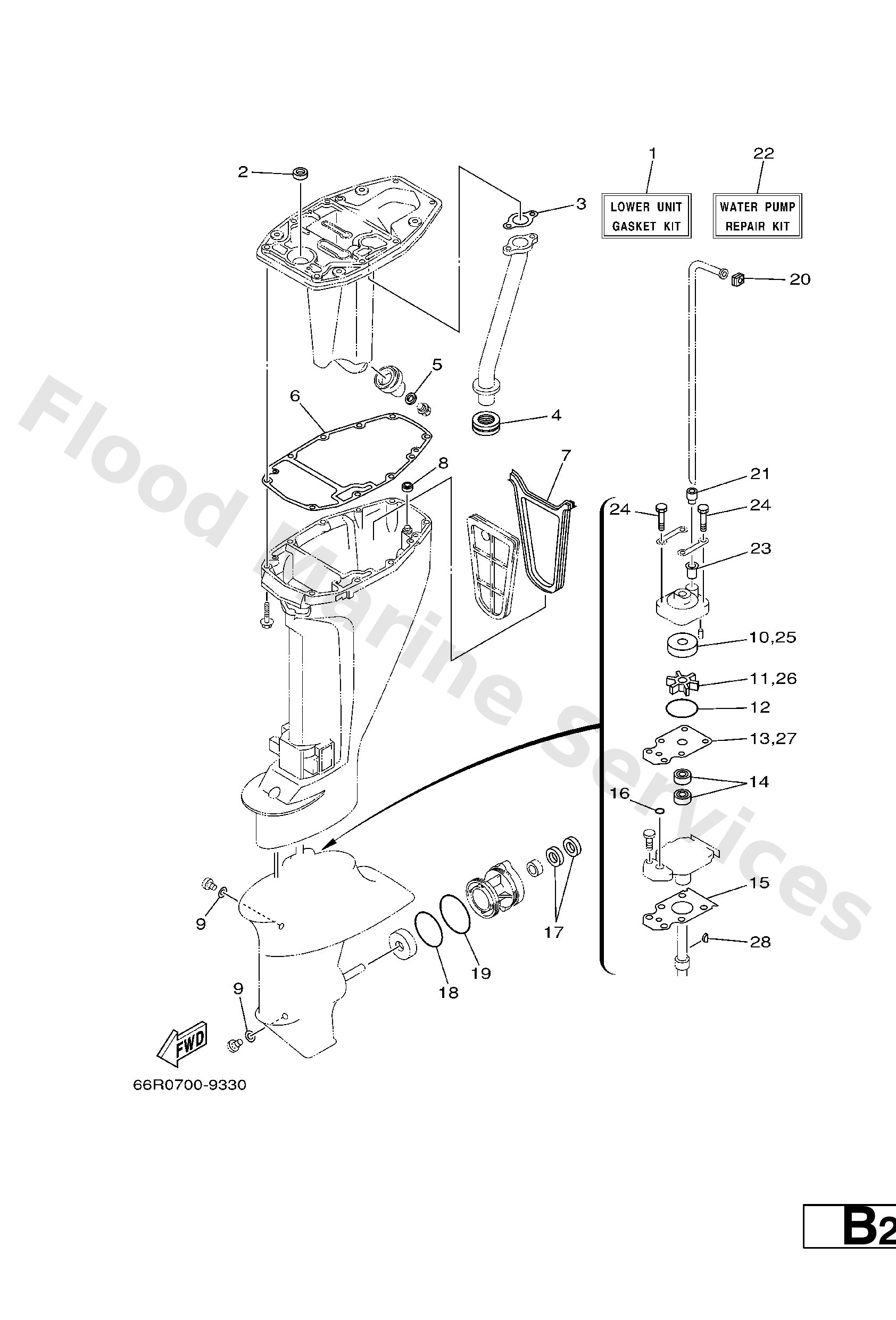

Diagram: REPAIR KIT 3
Parts List
Reference
Description
Price
1
66R−W0001−20
32 −
Loading…
↗
2
93101−12M63
Oil seal
Loading…
↗
3
66M−41133−00
Gasket, exhaust manifold 1
Loading…
↗
4
66M−41138−00
Seal, ext. 1
Loading…
↗
5
90430−14M09
Gasket
Loading…
↗
6
66M−45113−00
Gasket, upper casing
Loading…
↗
7
66M−45115−00
Gasket, upper casing
Loading…
↗
8
66M−45128−00
Seal 2
Loading…
↗
9
90430−08020
Gasket
Loading…
↗
10
63V−44322−00
Insert, cartridge
Loading…
↗
11
63V−44352−01
Impeller
Loading…
↗
12
93210−44398
O-ring(55x)
Loading…
↗
13
63V−44323−00
Outer plate, cartridge
Loading…
↗
14
93101−20048
Oil seal (20x30x6-648)
Loading…
↗
15
63V−45315−A0
Packing, lower casing
Loading…
↗
16
93210−06ME6
O-ring
Loading…
↗
17
93101−17054
Oil seal (17x30x6-650)
Loading…
↗
18
93210−74M68
O-ring (6g8)
Loading…
↗
19
93210−74316
O-ring (1j7)
Loading…
↗
20
63V−44365−10
Damper, water seal 1
Loading…
↗
21
63V−44368−00
Rubber, water seal 4
Loading…
↗
22
63V−W0078−00
Water pump repair kit
Loading…
↗
23
647−44366−00
Damper, water seal 2
Loading…
↗
24
97080−08045
Bolt, hexagon
Loading…
↗
28
664−44338−00
Key, woodruff
Loading…
↗
