FT9.9GE (2009)
REPAIR KIT 3

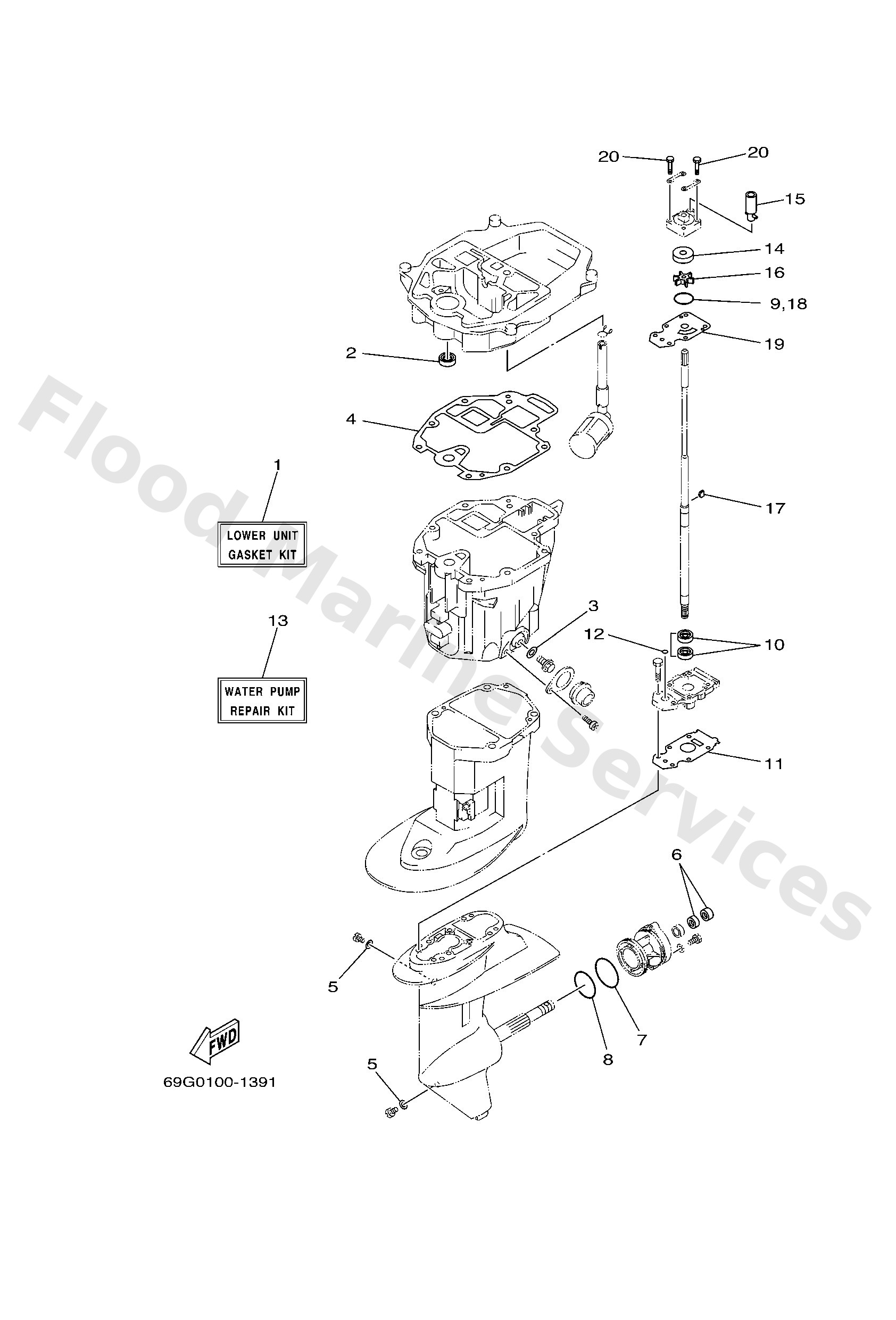

Diagram: REPAIR KIT 3
Parts List
Reference
Description
Price
1
69GW000120
Lower unit gasket kit
Loading…
↗
2
9310112M70
Oil seal
Loading…
↗
3
9043010M11
Gasket
Loading…
↗
4
68T1347500
Gasket
Loading…
↗
5
9043008020
Gasket
Loading…
↗
6
9310117054
Oil seal (17x30x6-650)
Loading…
↗
7
9321074316
O-ring (1j7)
Loading…
↗
8
9321074M68
O-ring (6g8)
Loading…
↗
9
9321044398
O-ring(55x)
Loading…
↗
10
9310120048
Oil seal (20x30x6-648)
Loading…
↗
11
69G45315A0
Packing, lower casing
Loading…
↗
12
9321006ME6
O-ring
Loading…
↗
13
69GW007800
Water pump repair kit
Loading…
↗
14
63V4432200
Insert, cartridge
Loading…
↗
15
68T4436600
Damper, water seal 2
Loading…
↗
16
63V4435201
Impeller
Loading…
↗
17
6644433800
Key, woodruff
Loading…
↗
19
68T4432300
Outer plate, cartridge
Loading…
↗
20
9708008045
Bolt, hexagon
Loading…
↗
