L250AETO (2002)
REPAIR KIT 3

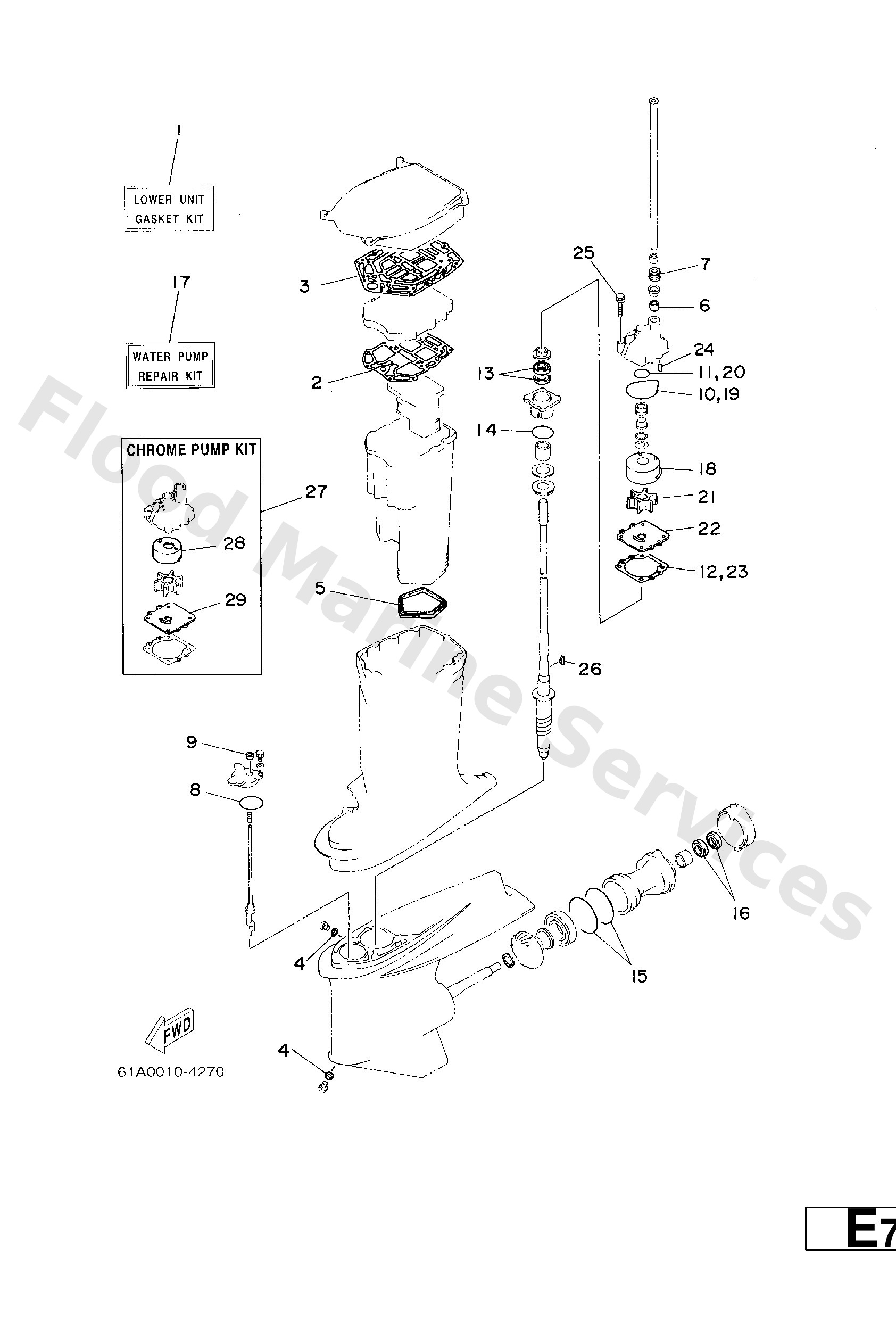

Diagram: REPAIR KIT 3
Parts List
Reference
Description
Price
1
61A−W0001−C1
Gasket kit, lower unit
Loading…
↗
2
61A−41134−A0
Gasket, exhaust manifold
Loading…
↗
3
61A−45114−A0
Gasket, upper casing
Loading…
↗
4
90430−08020
Gasket
Loading…
↗
5
61A−45123−01
Gasket, muffler
Loading…
↗
6
6E5−44365−00
Damper, water seal 1
Loading…
↗
7
6E5−44366−00
Damper, water seal 2
Loading…
↗
8
93210−64488
93210-64488
Loading…
↗
9
93106−09014
Oil seal
Loading…
↗
10
93210−86M38
O-ring (6e5)
Loading…
↗
11
93210−37160
O-ring (6g8)
Loading…
↗
12
6E5−44315−A0
Gasket,water pump
Loading…
↗
13
93101−28M16
Oil seal (6e5)
Loading…
↗
14
93210−55M14
O-ring (70e)
Loading…
↗
15
93211−04384
O-ring (705)
Loading…
↗
16
93101−30M17
Oil seal (6e5)
Loading…
↗
17
61A−W0078−A3
Water pump repair kit
Loading…
↗
18
61A−44322−02
Insert, cartridge
Loading…
↗
21
6E5−44352−01
Impeller
Loading…
↗
22
6G5−44323−00
Outer plate, cartridge
Loading…
↗
24
93606−12019
Pin, dowel (614)
Loading…
↗
25
90119−08M14
Bolt, with washer
Loading…
↗
26
90280−04M05
Key, woodruff (6e5)
Loading…
↗
27
61A−W0078−2A
Chrome pump kit
Loading…
↗
28
6R3−44322−42
Insert, cartridge
Loading…
↗
29
6G5−44323−40
Outer plate, cartridge
Loading…
↗
