Yamaha Outboard Parts - REPAIR KIT 4 - F8CMH (2008) | Flood Marine

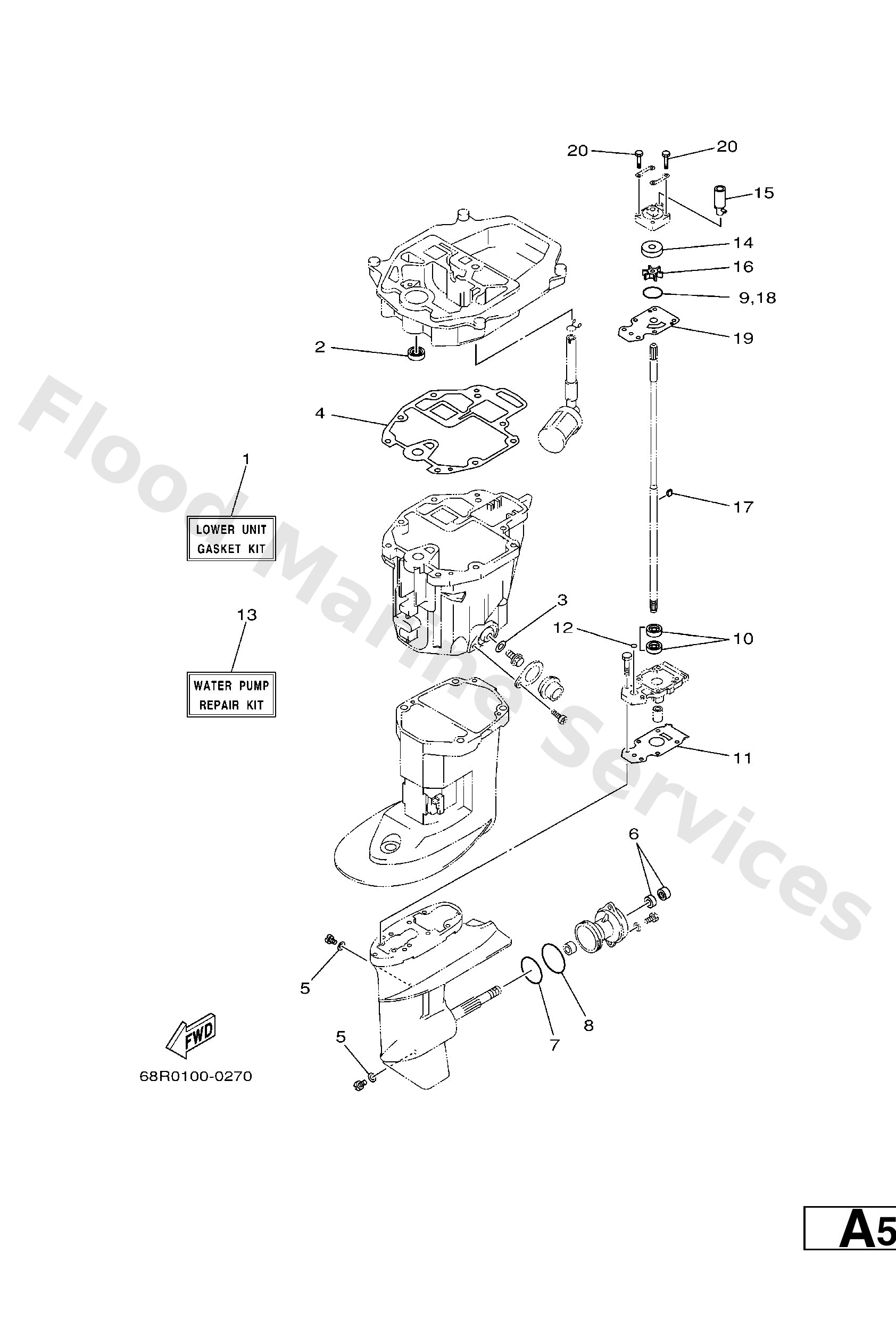

Diagram: REPAIR KIT 4

Diagram

Parts List

Reference
Description
Price


1
68TW000120
Lower Unit Gasket Kit
Loading…

↗
2
9310112M70
Oil Seal
Loading…

↗
3
9043010M11
Gasket
Loading…

↗
4
68T1347500
Gasket
Loading…

↗
5
9043008020
Gasket
Loading…

↗
6
9310115074
Oil Seal
Loading…

↗
7
9321049046
O-Ring
Loading…

↗
8
9321053M08
O-Ring
Loading…

↗
9
9321044398
O-Ring
Loading…

↗
10
9310111M23
Oil Seal
Loading…

↗
11
68T45315A0
Packing, Lower Casing
Loading…

↗
12
9321006ME6
O-Ring
Loading…

↗
13
68TW007800
Water Pump Repair Kit
Loading…

↗
14
63V4432200
Insert, Cartridge
Loading…

↗
15
68T4436600
Damper, Water Seal 2
Loading…

↗
16
68T4435200
Impeller
Loading…

↗
17
6644433800
Key, Woodruff
Loading…

↗
19
68T4432300
Outer Plate, Cartridge
Loading…

↗
20
9708008045
ボルト
Loading…

↗
