Yamaha Outboard Parts - REPAIR KIT2 - 30DMHO (1999) | Flood Marine

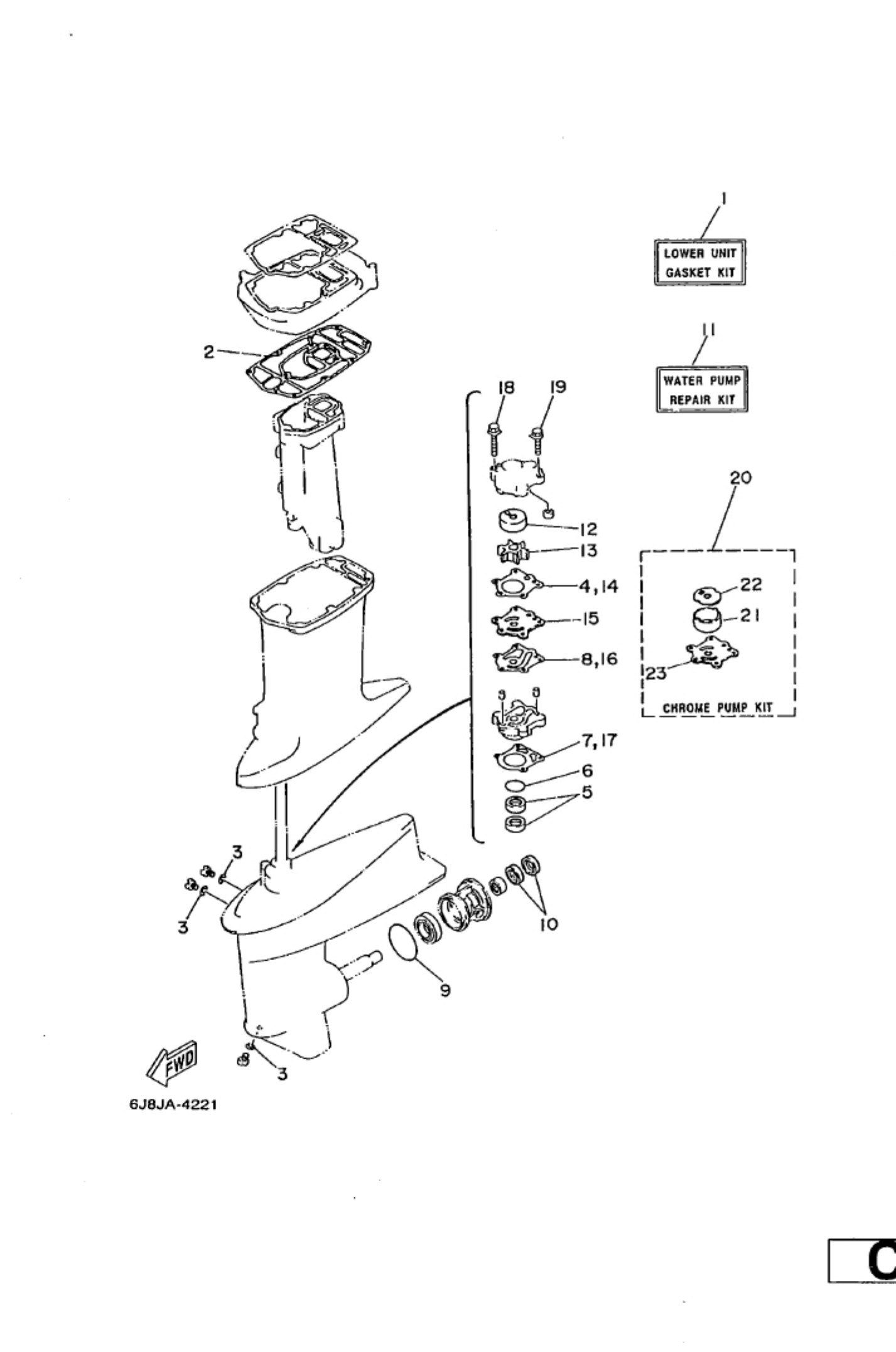

Diagram: REPAIR KIT2

Diagram

Parts List

Reference
Description
Price


2
6UB45114A1 IIRIRIE
Gasket, Upper Casing
Loading…

↗
4
66344315A0 IRIE
Gasket,water pump 1
Loading…

↗
6
oazioatoi2 q 1
O-Ring
Loading…

↗
7
66344316A0 [IRIE
Gasket,water pump 2
Loading…

↗
8
66344324A0 [IRIEIR
Gasket,cartridge outer plate
Loading…

↗
9
9321060MA3 [RIE
O-ring(6j8)
Loading…

↗
15
6634432000 IRIEIR
Outer Plate, Cartridge
Loading…

↗
18
901190813
Bolt,
Loading…

↗
19
9011908M34 2| 2] 2] 2
Bolt, with washer(6j8)
Loading…

↗
20
6H4WOO780A [IRIEIR
Chrome Pump Kit
Loading…

↗
22
6704432100 HRIRIE
Inner plate, cartridge
Loading…

↗
23
6704432300 11] 1]
Outer plate, cartridge
Loading…

↗
