225GETO (1999)
REPAIRKIT1

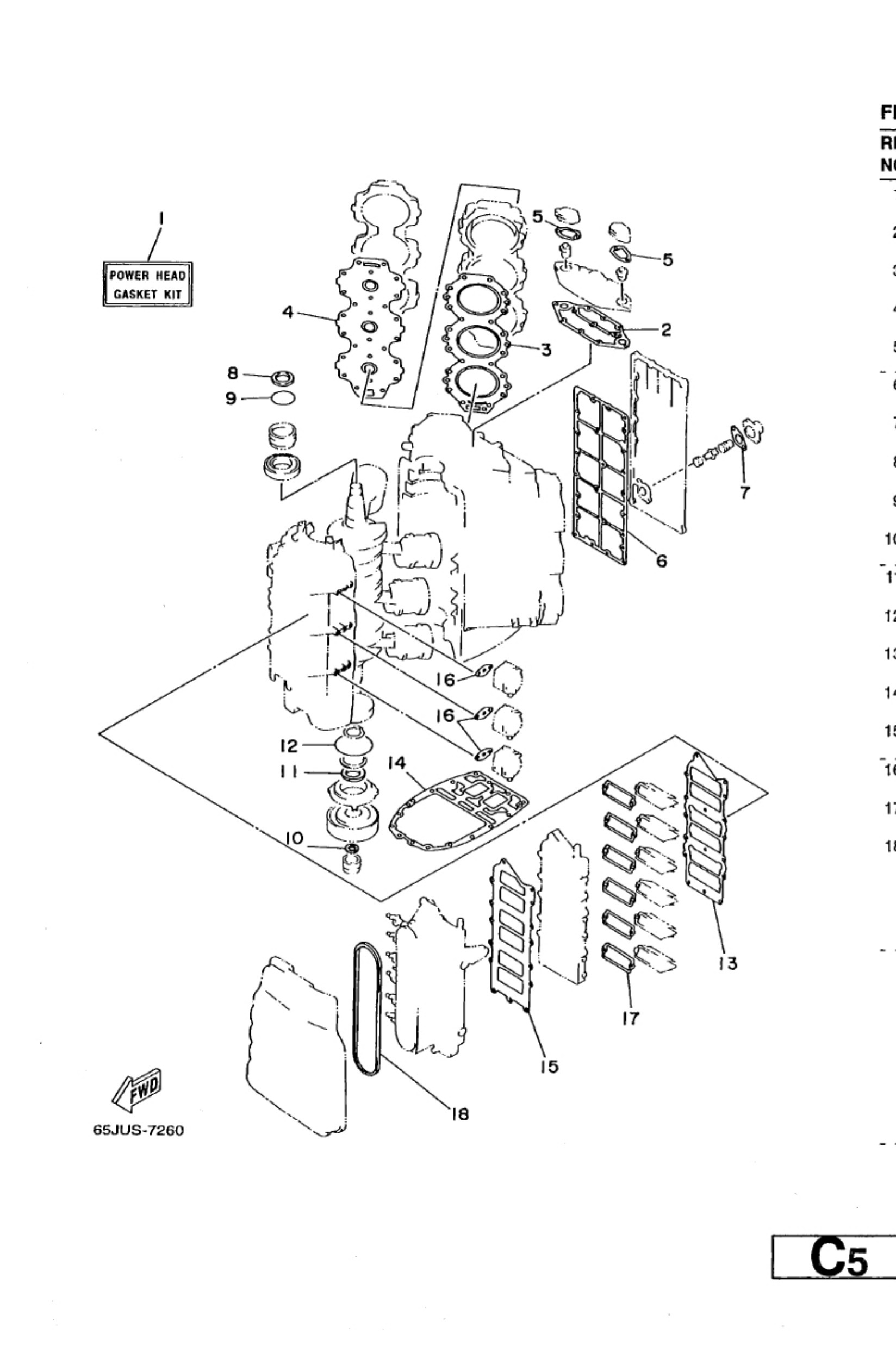

Diagram: REPAIRKIT1
Parts List
Reference
Description
Price
1
65LW000100
Power head gasket kit
Loading…
↗
2
61A11381A0
Gasket 1
Loading…
↗
4
61A11183A1
(Gasket, Head Cover 1
Loading…
↗
5
61A12414A0
Gasket, cover
Loading…
↗
6
GA
EXHAUST OVER
,
Loading…
↗
7
6G511382A1
Gasket 2
Loading…
↗
8
9310240M38
Oil seal(61a)
Loading…
↗
9
9321054M54
O-ring (6g1)
Loading…
↗
10
9310422M07
Oil seal(61a)
Loading…
↗
11
9310240M36
Oil seal
Loading…
↗
12
9321081MA6
O-ring(61a)
Loading…
↗
13
65L1364500
Gasket, manifold 1
Loading…
↗
14
61A45113A0
Gasket, upper casing
Loading…
↗
15
65L1364600
Gasket, manifold 2
Loading…
↗
16
65024431A0
Gasket,fuel pump
Loading…
↗
17
61A13621A0
Gasket, valve seat
Loading…
↗
18
65L1448300
Gasket
Loading…
↗
18
65JUS7260
So
