20DEO (1992)
Remo Con Attachment

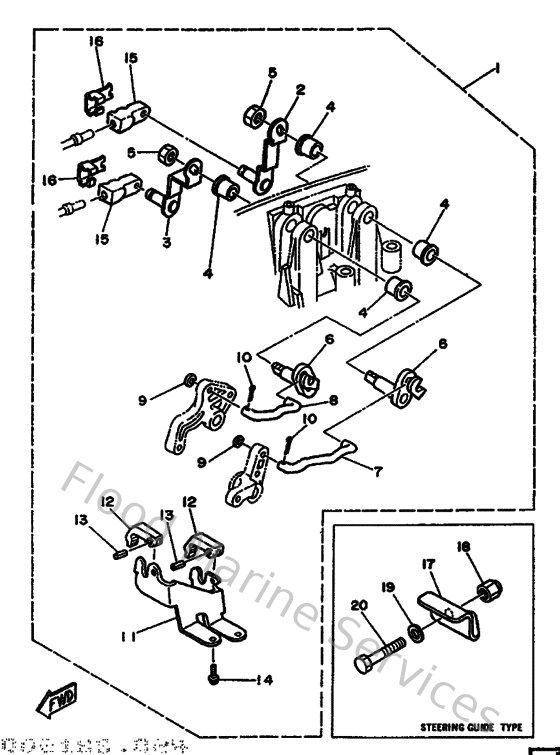

Diagram: Remo Con Attachment
Parts List
Reference
Description
Price
1
6L2485011100
Remote cont. attachment assembly.
Loading…
↗
2
6L2485440100
Lever, shiftcontrol
Loading…
↗
3
6L2485340100
Throttle lever, control
Loading…
↗
4
903861000900
Bushing 6484418600
Loading…
↗
5
957800830000
Nut, nylon (6j8)
Loading…
↗
6
6L2421540100
Lever, throttle control
Loading…
↗
7
6L2421910100
Rod 1
Loading…
↗
8
6L2421922000
Rod 2
Loading…
↗
9
902020508800
Washer, plate (666)
Loading…
↗
10
914902001000
Pin, cotter
Loading…
↗
11
6L2485310000
Bracket, remote control 1
Loading…
↗
12
682485385000
Clamp, cable
Loading…
↗
13
916903001200
Pin, spring
Loading…
↗
14
9010506M2300
Bolt (6g1)
Loading…
↗
15
6G8263630000
End, wire 1
Loading…
↗
16
6G8263640000
End, wire 2
Loading…
↗
17
6L2485110000
Hook, steering
Loading…
↗
18
901851002700
Nut, self-locking
Loading…
↗
19
929901060000
Washer, plate
Loading…
↗
20
973951004000
Bolt, hexagon deep recess
Loading…
↗
